Adjustment Chart

HOW TO READ ADJUSTMENT CHART

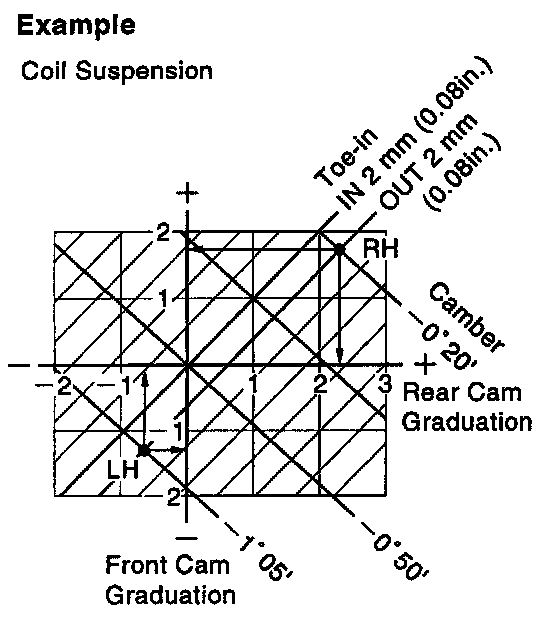

(a) Mark on the graph the measurements taken from the vehicle.

Example (Coil Suspension):
Camber (LH) -1°05'
Camber (RH) -0°20'
Toe-in (total) OUT 2 mm (0.08 in.)

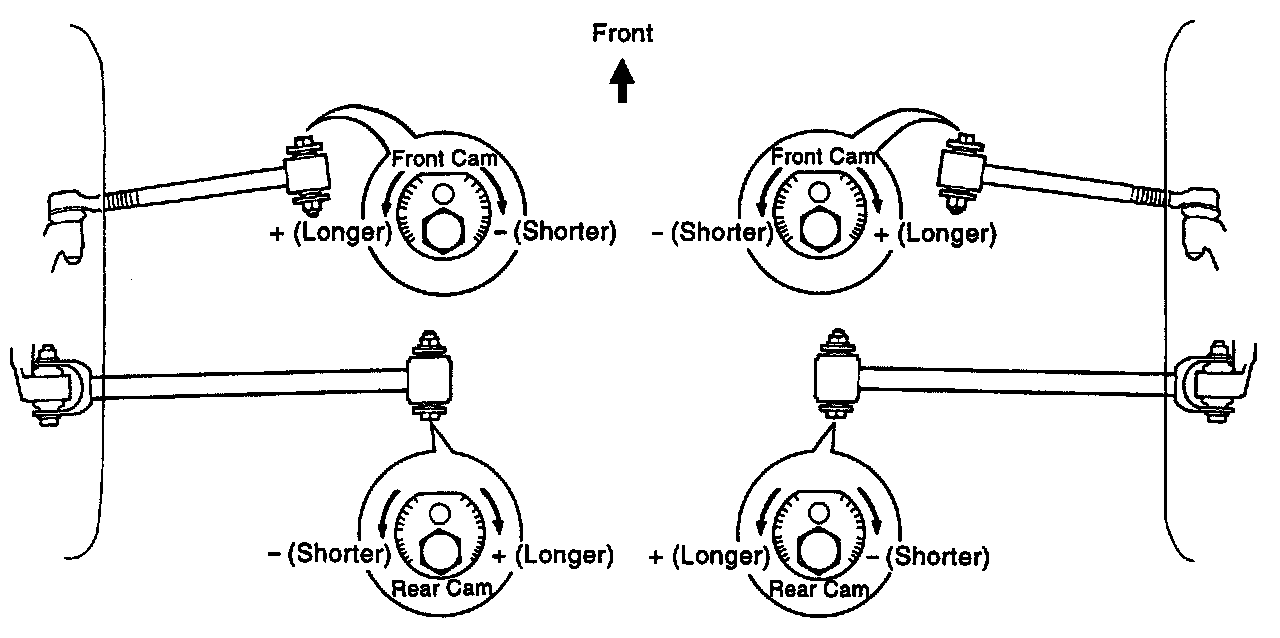

(b) As shown in the illustration, from the graph the amounts by which the front and/or rear cam are to be adjusted.

Amount to turn adjusting cam (by graduation):
LH Front cam -(Shorter) 1.2
LH Rear cam -(Shorter) 0.7
RH Front cam +(Longer) 1.8
RH Rear cam +(Longer) 2.3
