Toe-In

ADJUST TOE-IN





(a) Remove the boot clips.
(b) Loosen the tie rod end lock nut.

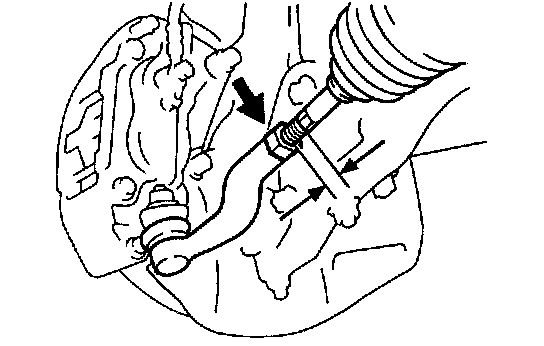

(c) Turn the left and right tie rod ends an equal amount to adjust the toe-in.

HINT: Try to adjust the toe-in the center value. Make sure that the length of the left and right rack ends length is same.

Rack end length difference: 1.0 mm (0.039 in.) or less

(d) Torque the tie rod end lock nuts.
Torque: 56 N.m (570 kgf.cm. 41 ft.lb)

(e) Place the boot on the seat and clamp it.

HINT: Make sure that the boots are not twisted.

INSPECT WHEEL ANGLE

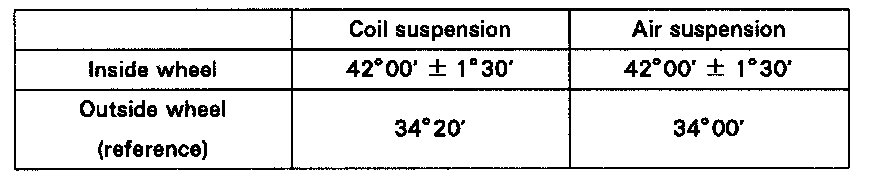

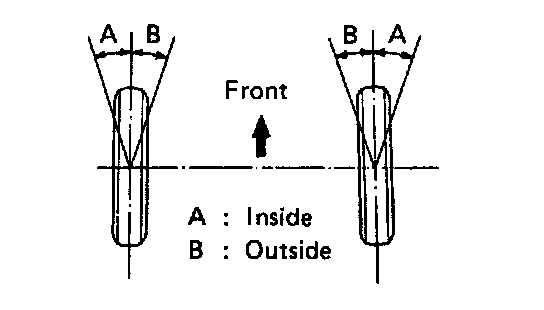

If the wheel angles differ from the standard of the specification. inspect the toe-in.
