Main Throttle Position Sensor

Adjust throttle position sensor.

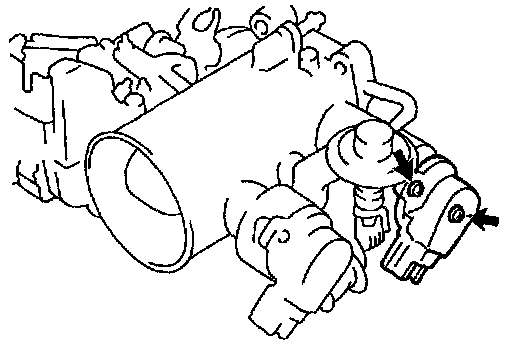

- Loosen the 2 set screws of the sensor.

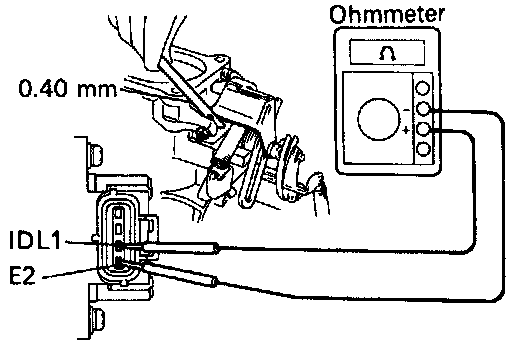

- Insert a 0.40 mm (0.016 in.) feeler gauge, between the throttle stop screw and stop lever.

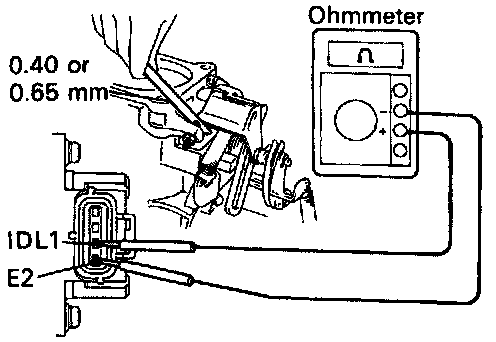

- Connect the test probe of an ohmmeter to the terminals IDL1 and E2 of the sensor.

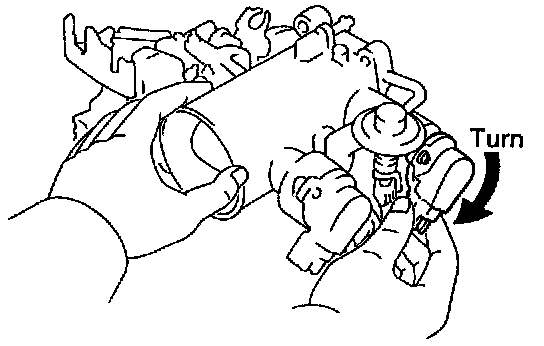

- Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.

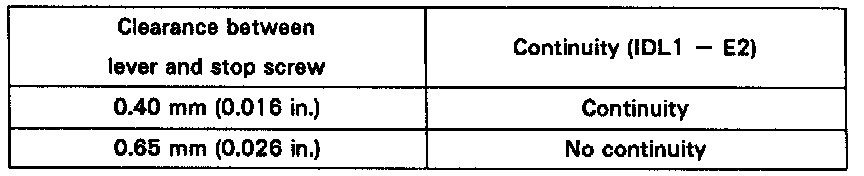

- Recheck the continuity between terminals IDL1 and E2.
