Sub Throttle Position Sensor

Adjust Sub-Throttle Position Sensor

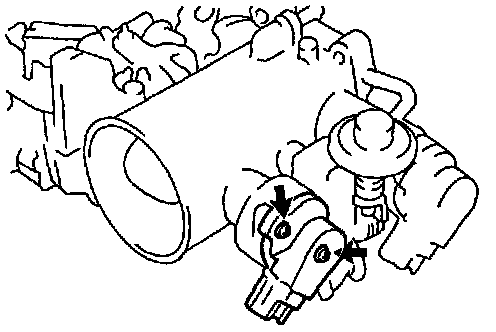

- Loosen the 2 set screws of the sensor.

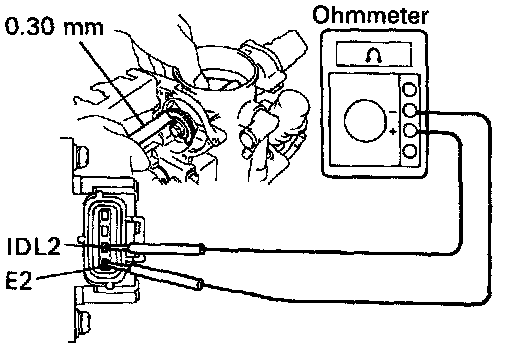

- Insert a 0.30 mm (0.012 in.) feeler gauge, between the throttle stop screw and throttle valve gear.
- Connect the test probe of an ohmmeter to the terminals IDL2 and E2 of the sensor.

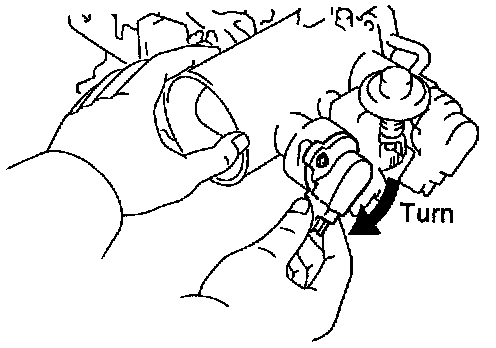

- Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.

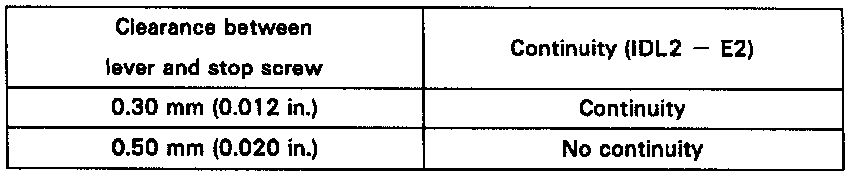

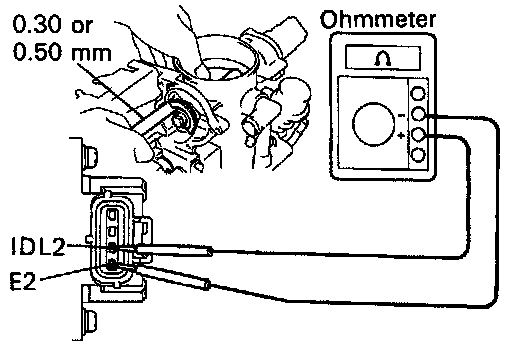

- Recheck the continuity between terminals IDL2 and E2.




- Install the sub-throttle actuator with the 3 screws.
