Connector Identification

CONNECTOR IDENTIFICATION

Description	Illustration
ABS Motor Relay	See Fig 1
ABS Solenoid Relay	See Fig 1
ABS Actuator	See Fig 2
Electronic Control Unit (Non-TRAC)	See Fig 3
Electronic Control Unit (TRAC)	See Fig 4
Schematic (ABS Motor Relay)	See Fig 5
Schematic (ABS Solenoid Relay)	See Fig 6
Wheel Speed Sensors (Front)	See Fig 7
Wheel Speed Sensors (Rear)	See Fig 8

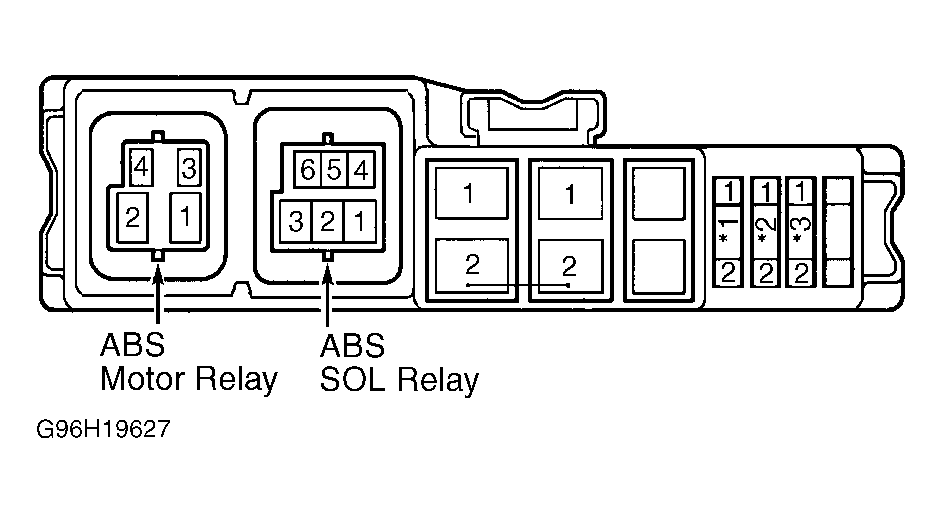

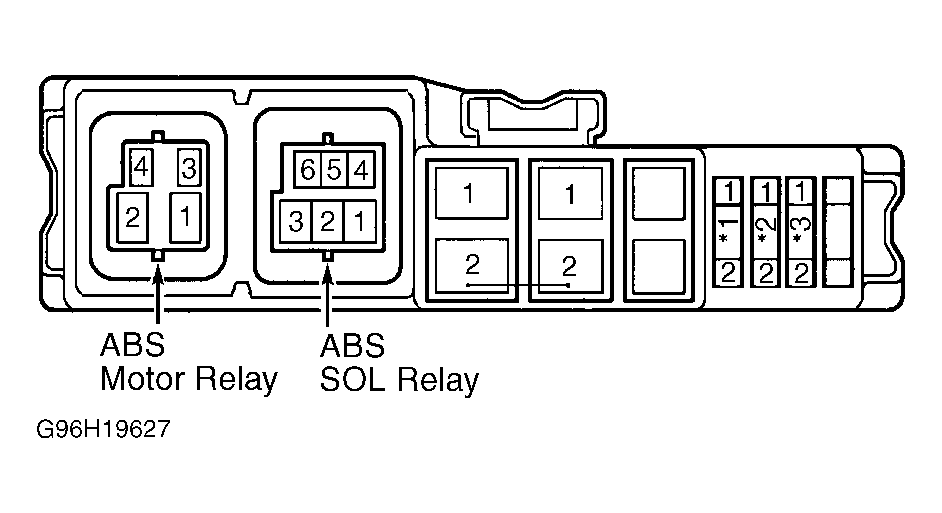

Fig 1: Identifying ABS Motor Relay & ABS Solenoid Relay Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

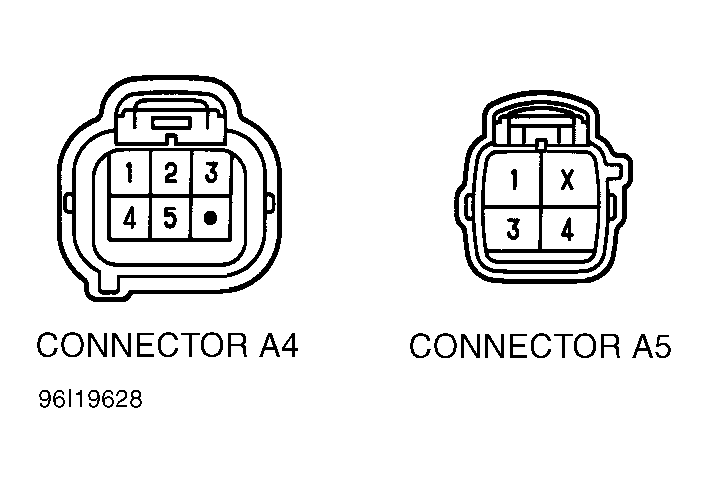

Fig 2: Identifying ABS Actuator Harness Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

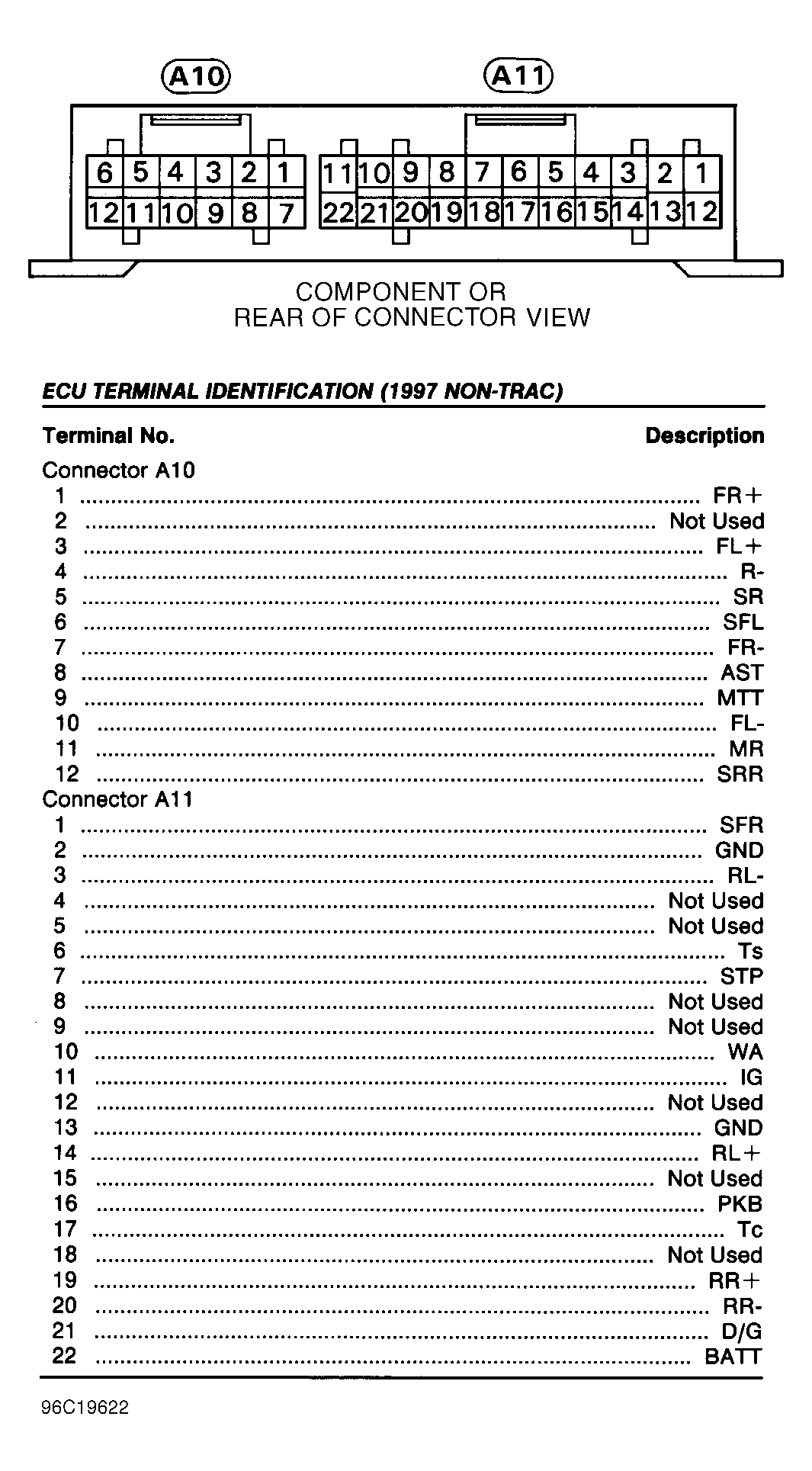

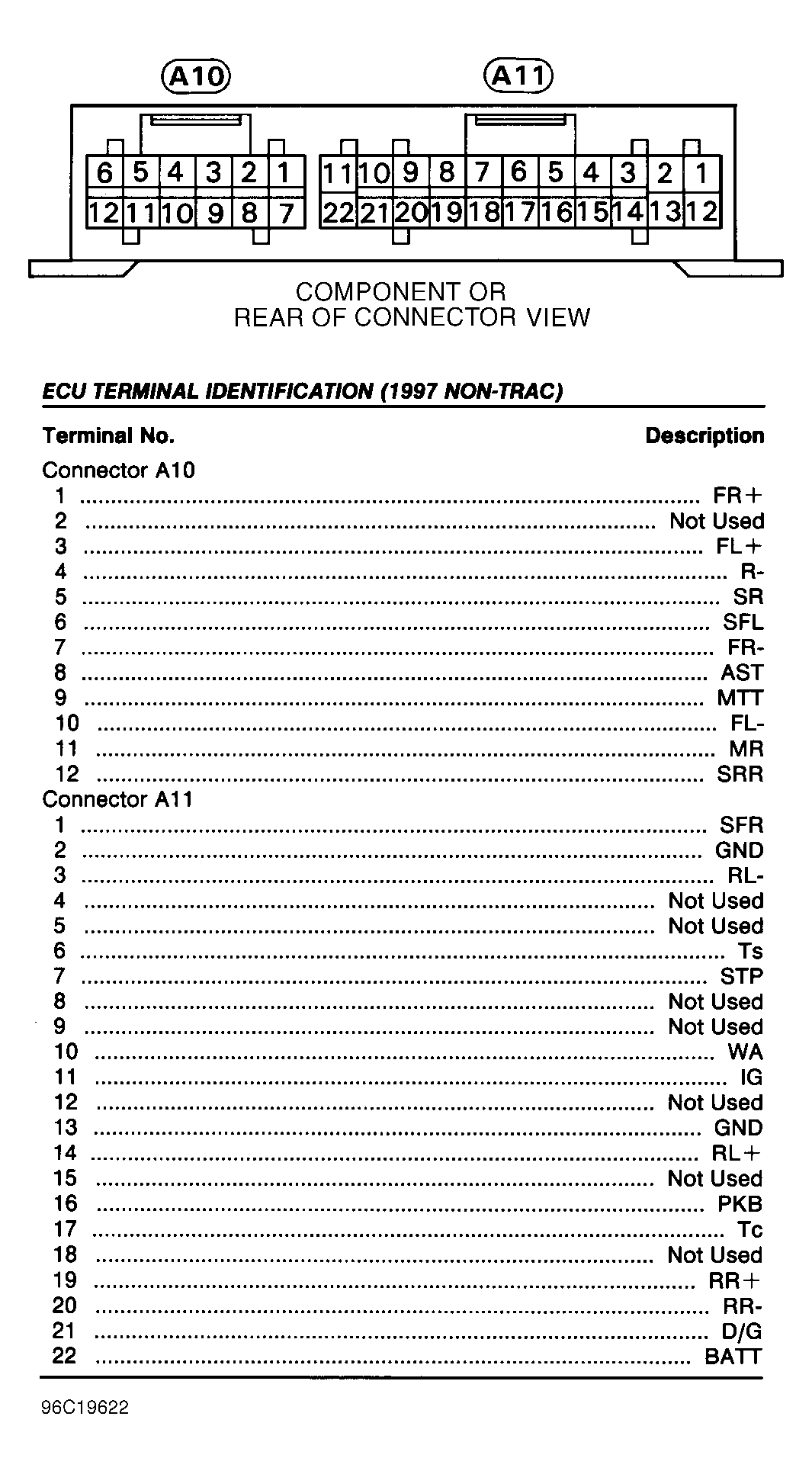

Fig 3: Identifying Electronic Control Unit (Non-TRAC) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECU TERMINAL IDENTIFICATION (NON-TRAC)

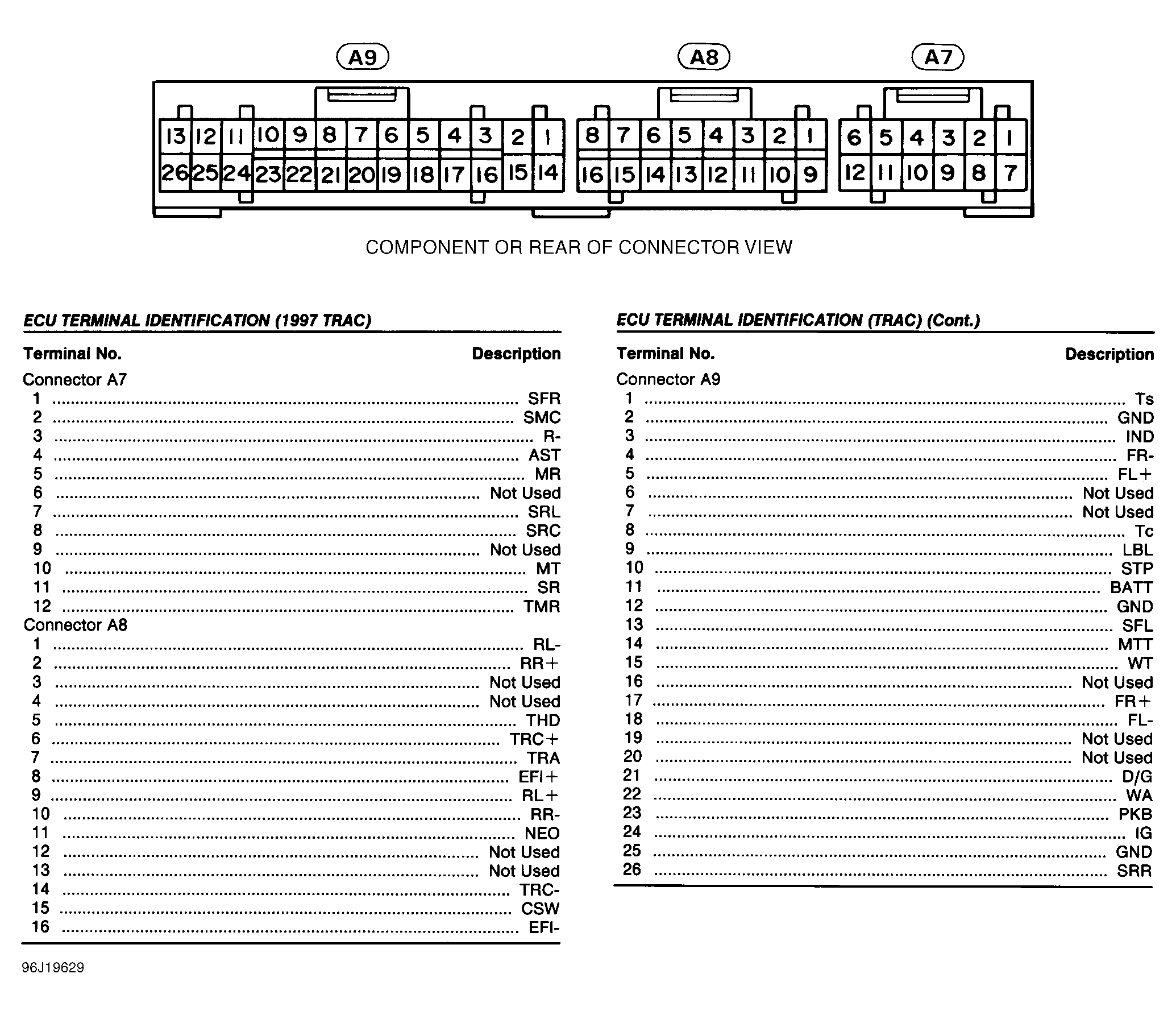

Fig 4: Identifying Electronic Control Unit (TRAC) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ECU TERMINAL IDENTIFICATION (TRAC)

Fig 5: Identifying Schematic (ABS Motor Relay)

Fig 6: Identifying Schematic (ABS Solenoid Relay)

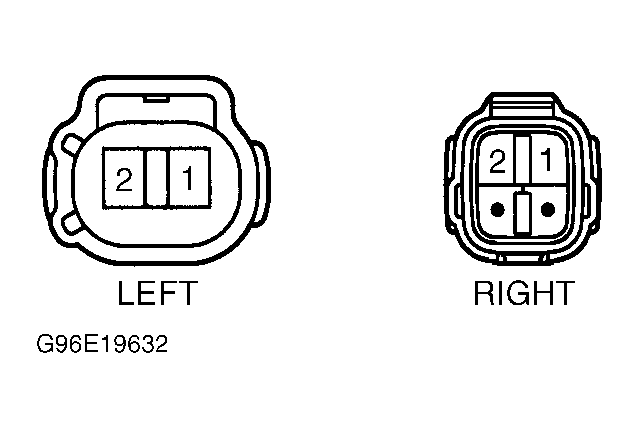

Fig 7: Identifying Wheel Speed Sensors (Front) Harness Connector Terminals

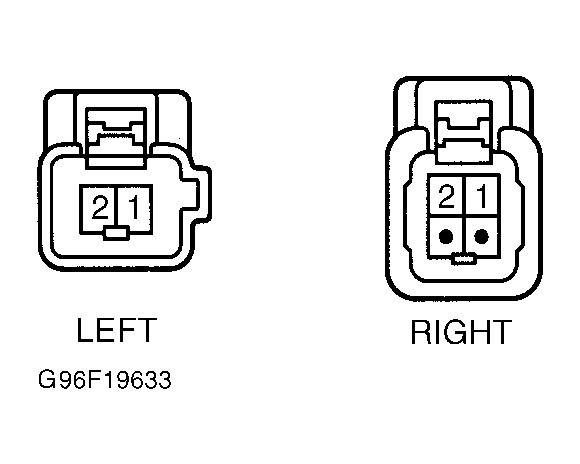

Fig 8: Identifying Wheel Speed Sensors (Rear)
