Connector Identification

CONNECTOR IDENTIFICATION

Description	Illustration
ABS Electronic Control Unit	See Fig 1
Check Harness	See Fig 2
Electronic Control Module (ECM)	See Fig 3
Sub-Throttle Actuator	See Fig 4
TRAC Electronic Control Unit	See Fig 5
TRAC Motor Relay	See Fig 6
TRAC Pump Motor	See Fig 7
Throttle Valve Motor Driver	See Fig 8

Fig 1: Identifying ABS ECU Connector

G96J19629

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Check Harness

G96E09639

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Electronic Control Module (ECM)

G95C31221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Sub-Throttle Actuator Harness Connector

G96F20599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

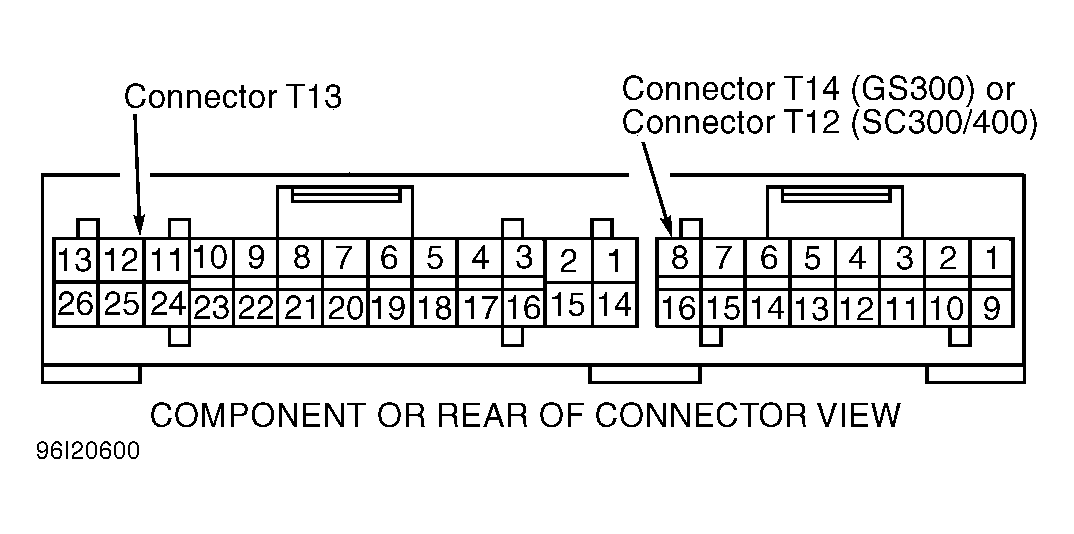

Fig 5: Identifying TRAC ECU Connector

G96I20600

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying TRAC Motor Relay

G96J20601

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying TRAC Pump Motor

G96A19653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Throttle Valve Motor Driver

G96A20602

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
