Starter Motor

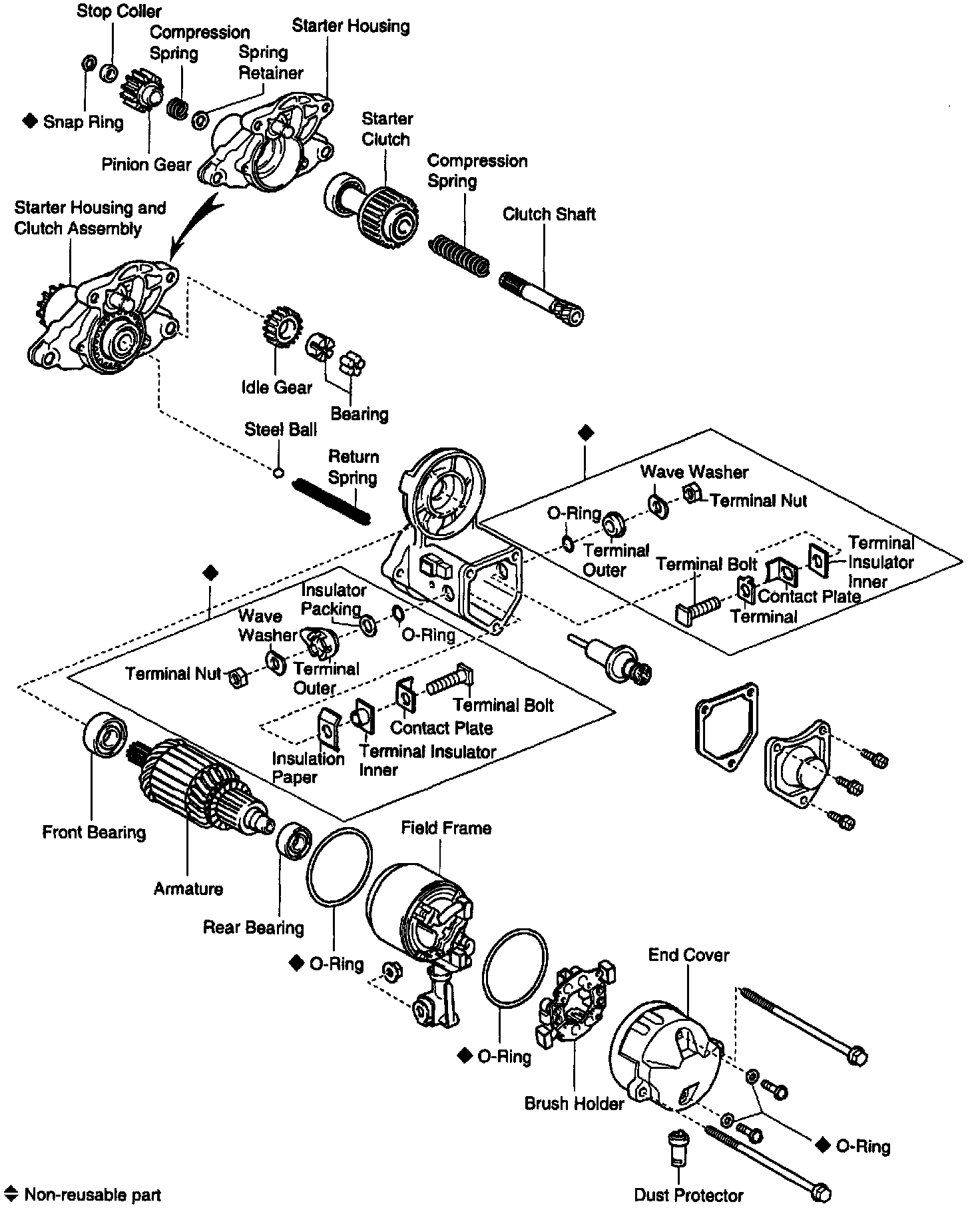

Fig. 1 Exploded View Of Reduction Type Starter:

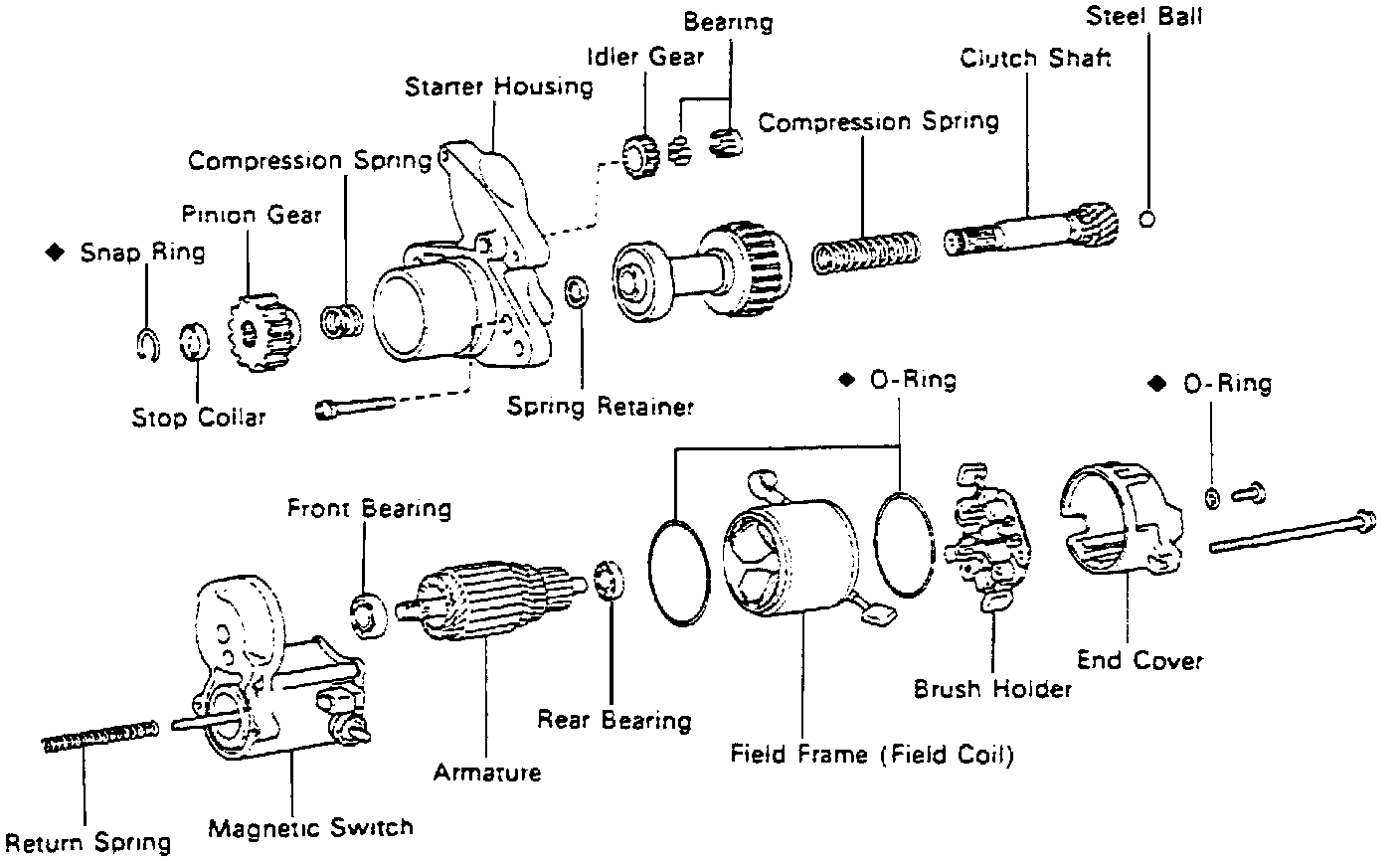

Fig. 2 Exploded View Of Reduction Type Starter:

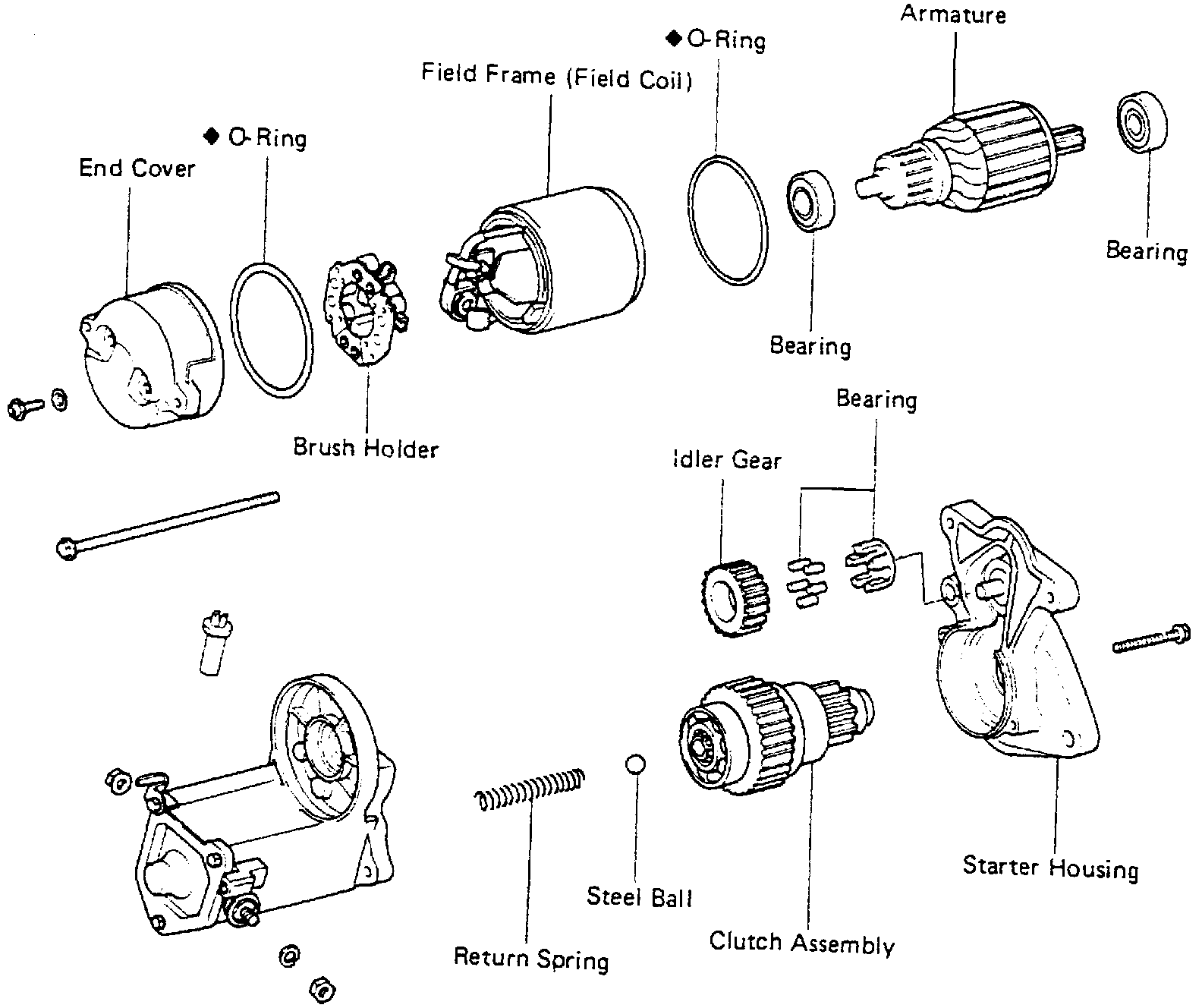

Fig. 3 Exploded View Of Reduction Type Starter:

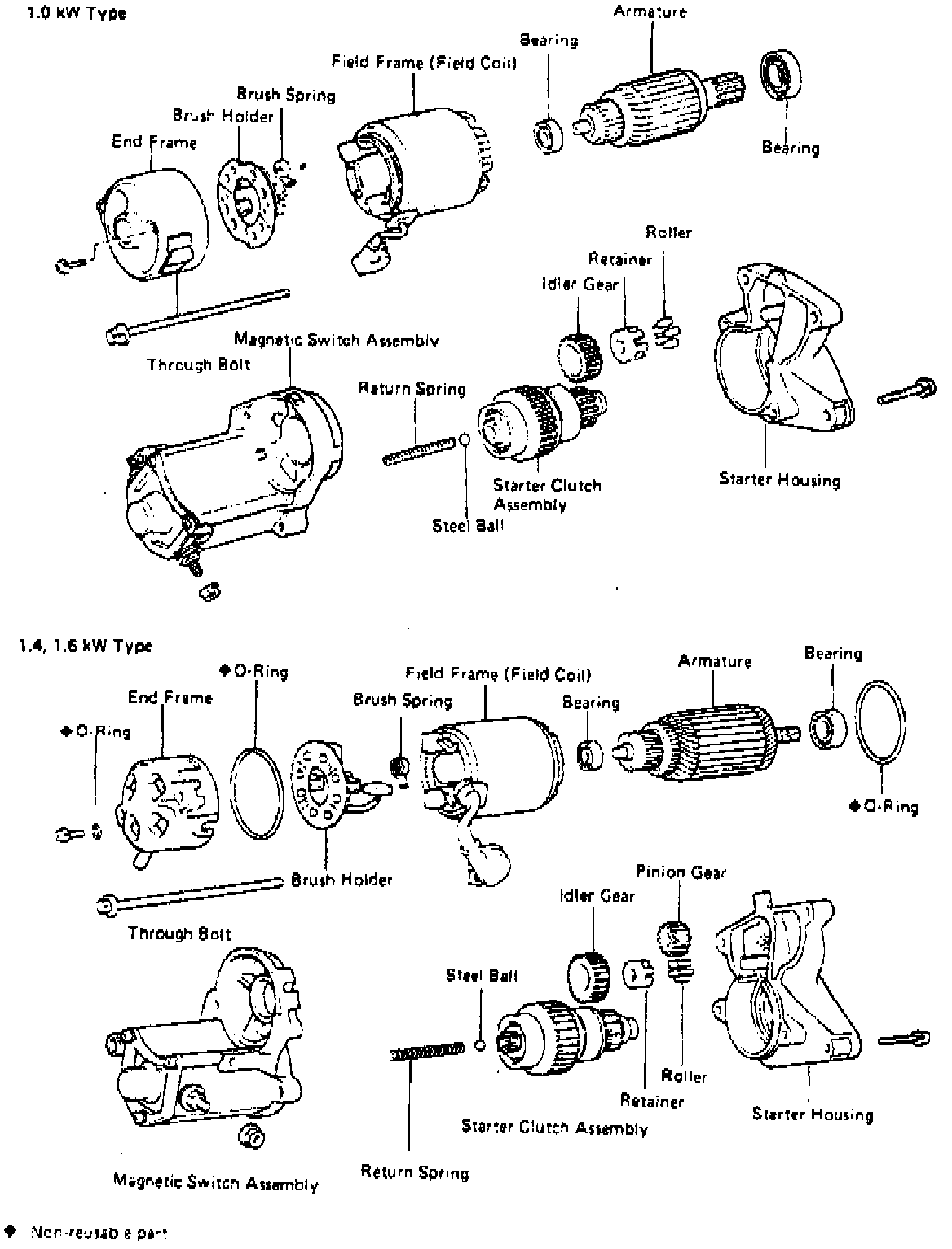

Fig. 4 Exploded View Of Reduction Type Starter:

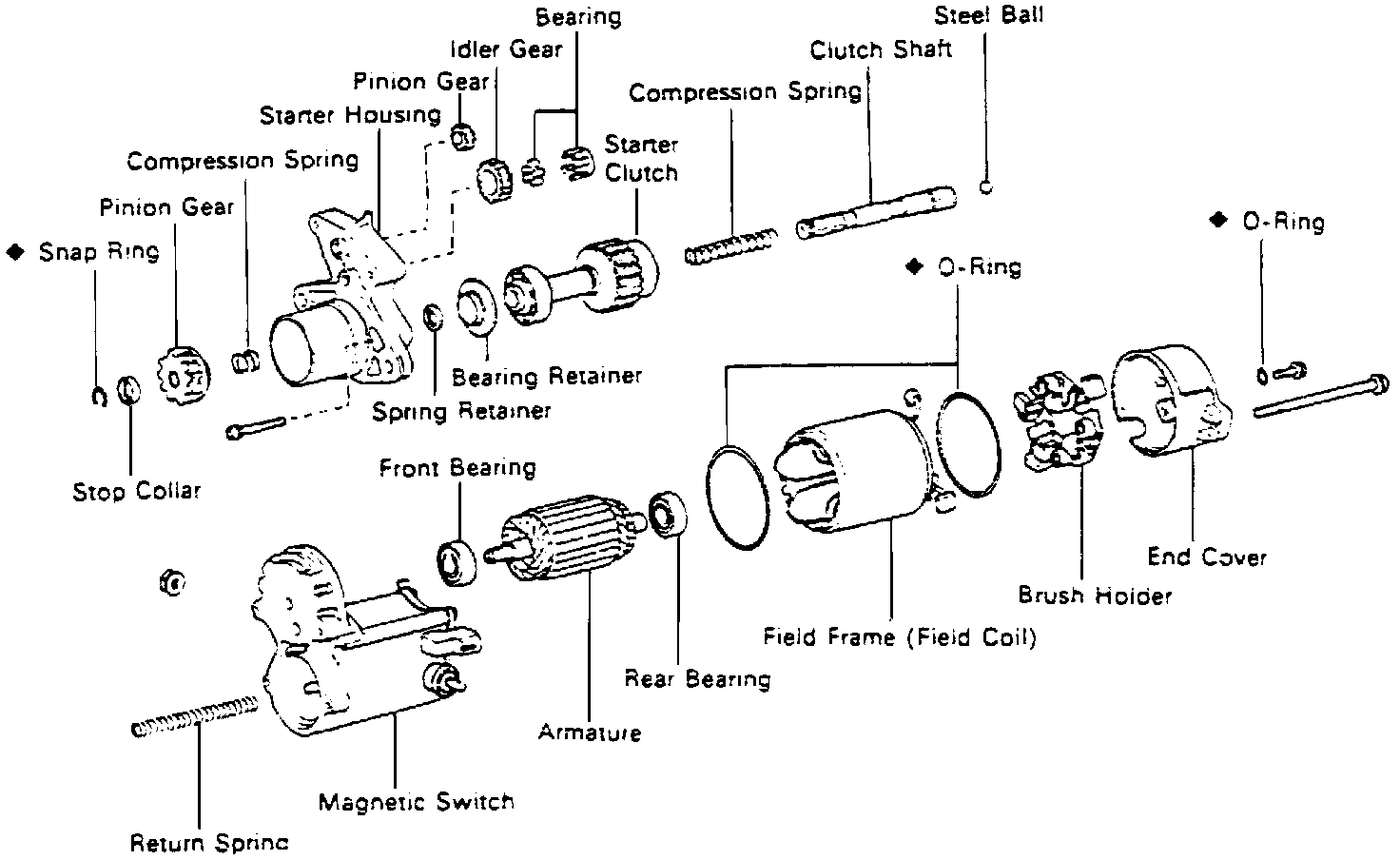

Fig. 5 Exploded View Of Reduction Type Starter:

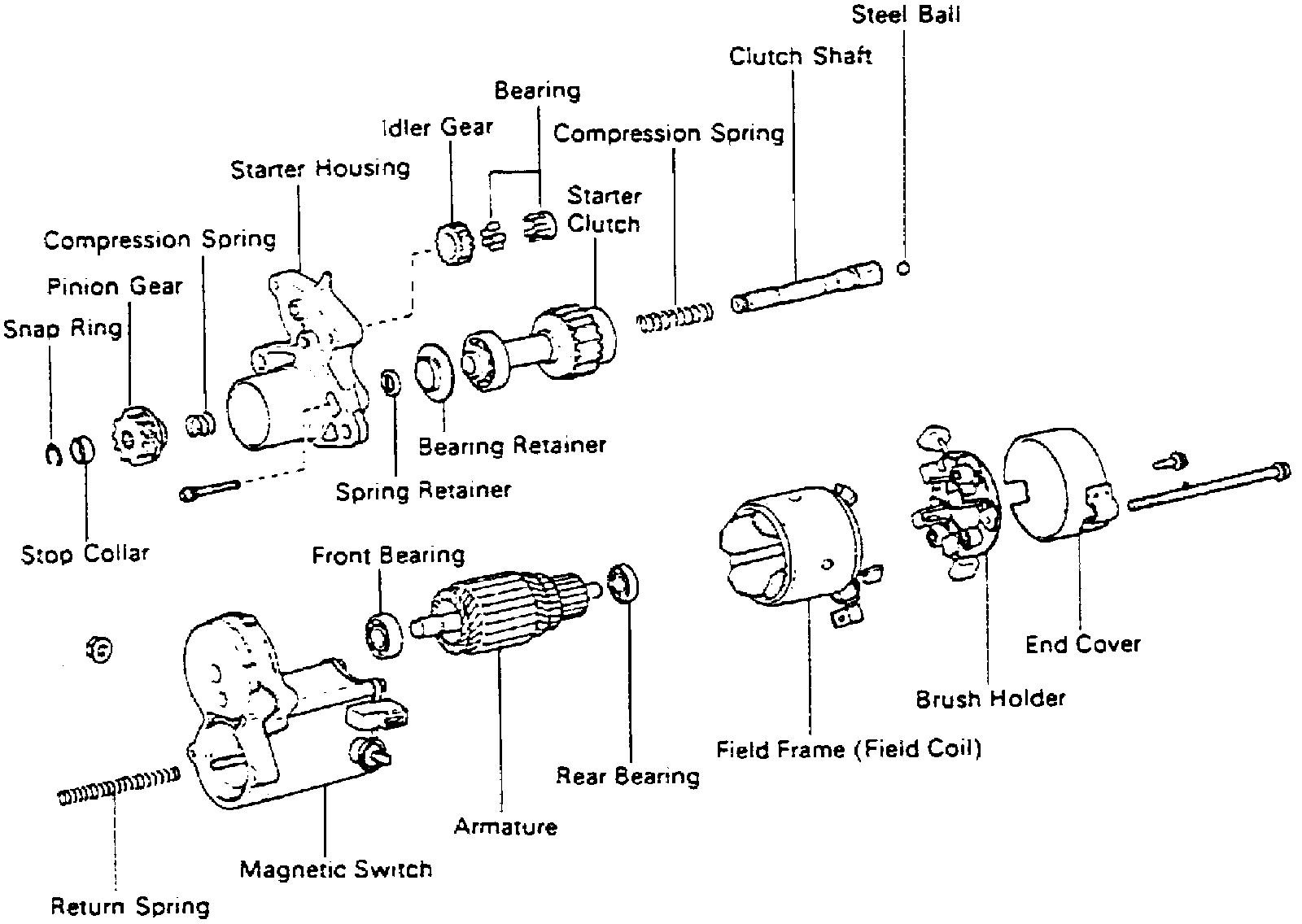

Fig. 6 Exploded View Of Reduction Type Starter:

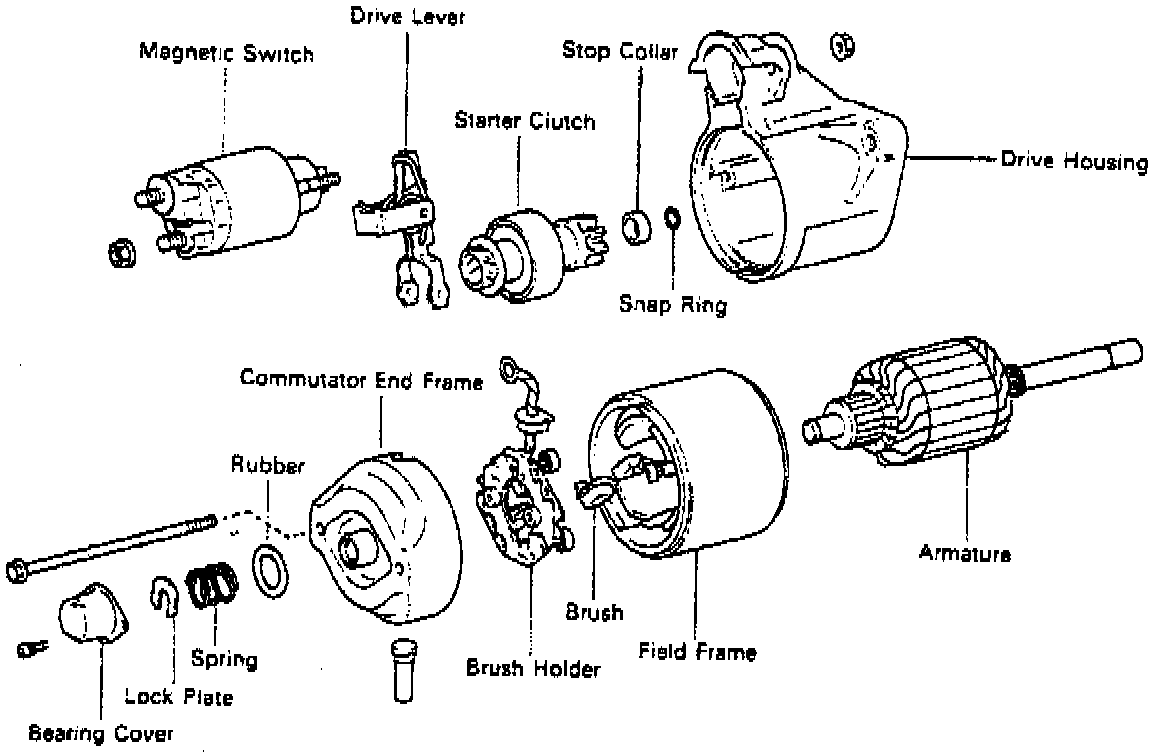

Fig.a 7 Exploded View Of Conventional Starter:

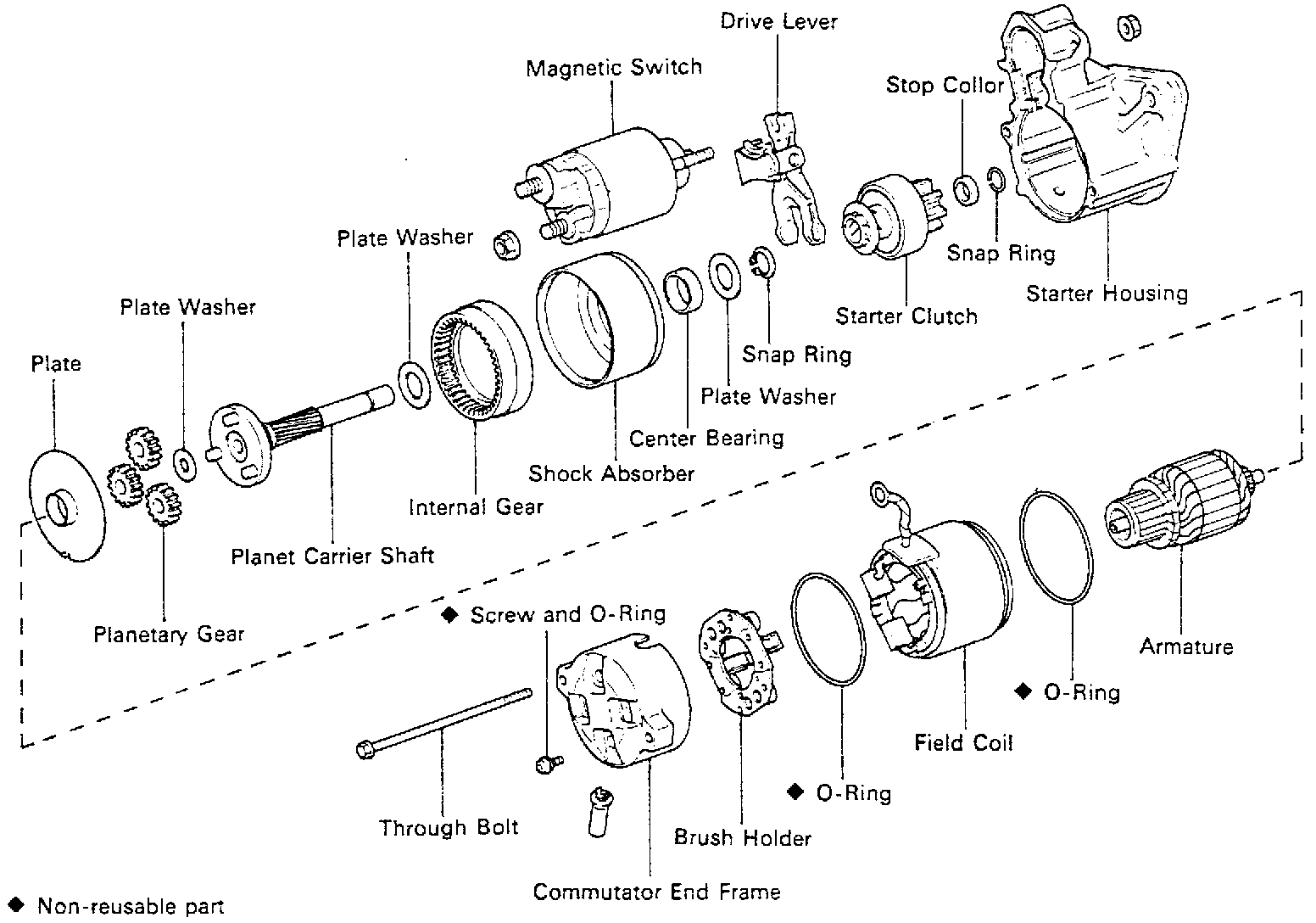

Fig. 8 Exploded View Of Planetary Starter:

Refer to Figs. 1 through 6 for reduction type starter, Fig. 7 for conventional starter and Fig. 8 for planetary starter.
