Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW METER (MAF) REMOVAL AND INSTALLATION

REMOVAL

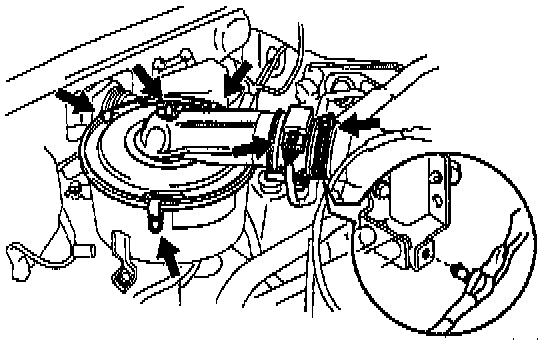

1. Remove air cleaner cap and MAF meter assembly
- Disconnect the MAF meter connector and wire clamp.
- Disconnect the cruise control actuator cable.
- Loosen the air cleaner hose clamp.
- Remove the wing nut.





- Disconnect the 3 clips.
- Disconnect the MAF meter from the air cleaner hose, and remove the air cleaner cap and MAF meter assembly.





2. Remove MAF meter.

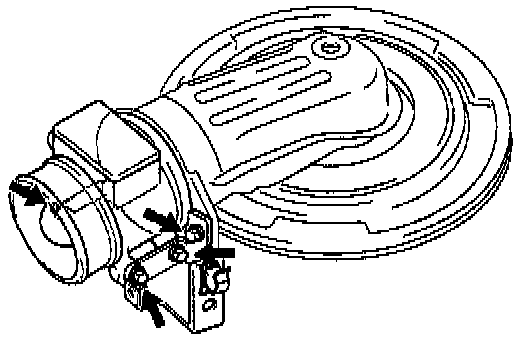

- Remove the 4 bolts, bracket and MAF meter.

INSTALLATION

1. Install MAF meter.
- Install the MAF meter and bracket with the 4 bolts.

Torque: 6.9 N.m (70 kgf.cm, 61 in.lbf)

2. Install air cleaner cap and MAF meter assembly.
- Connect the MAF meter to the air cleaner hose.
- Install the air cleaner cap and MAF mater assembly with the 3 clips and wing nut.
- Tighten the air cleaner hose clamp.
- Connect the cruise control actuator cable.
- Connect the MAF meter connector and wire clamp.
