Air Flow Meter/Sensor: Testing and Inspection

MASS AIR FLOW METER INSPECTION





1. Inspect MAF meter resistance.

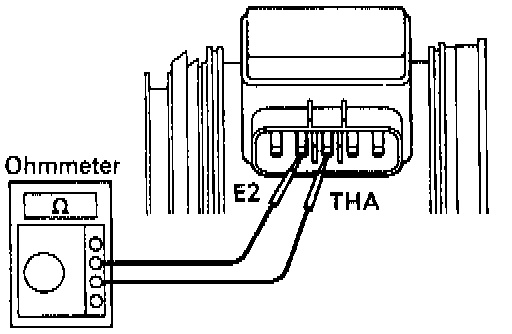

- Using an ohmmeter, measure the resistance between terminals THA and E2.

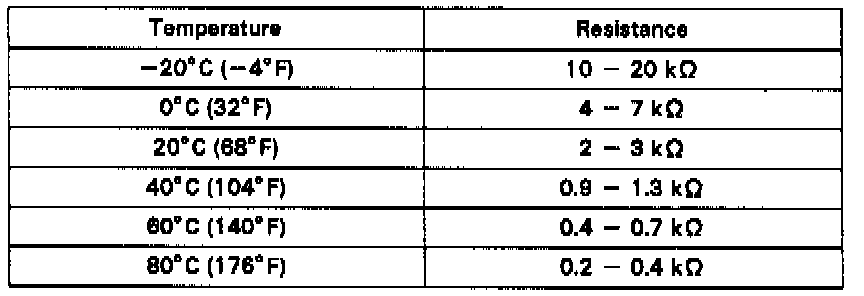

- If the resistance is not as specified. replace the MAF meter.
2. Inspect MAF meter operations.
- Connect the MAF meter connector.
- Connect the negative (-) terminal cable to the battery.

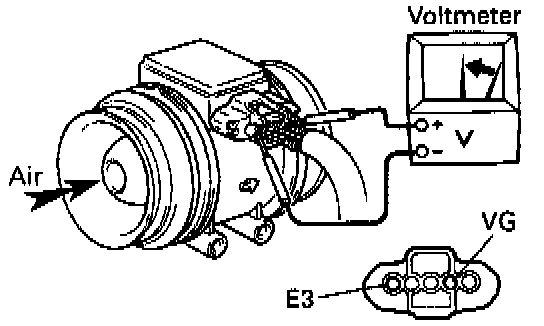

- Using a voltmeter, connect the positive (+) tester probe to terminal VG, and negative (-) tester probe to terminal E3.
- Turn the ignition switch ON.
- Blow air into the MAF meter, and check that the voltage fluctuates.
- If operation is not as specified. replace the MAF meter.
- Turn the ignition switch OFF.
- Disconnect the negative (-) terminal cable from the battery.
