Main Relay (Computer/Fuel System): Testing and Inspection

EFI MAIN RELAY INSPECTION





1. Remove EFI main relay.

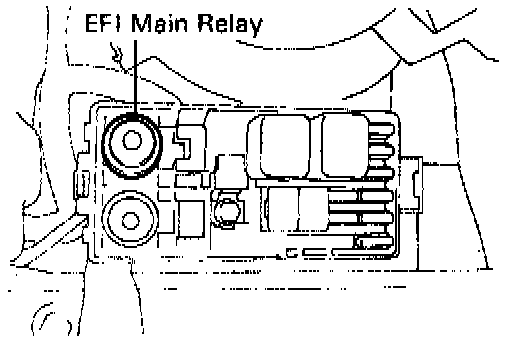

LOCATION: In the engine compartment relay box.






2. Inspect EFI main relay.

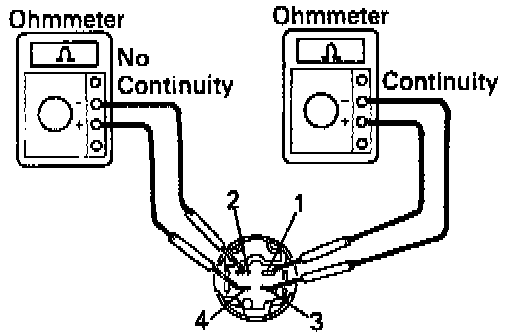

- Inspect relay continuity
- Using an ohmmeter, check that there is continuity between terminals 1 and 3.
- If there is no continuity, replace the relay.
- Check that there is no continuity between terminals 2 and 4.
- If there is continuity, replace the relay.

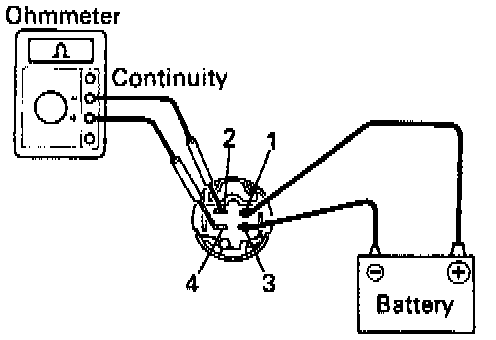

- Inspect relay operation
- Apply battery voltage across terminals 1 and 3.
- Using an ohmmeter, check that there is continuity between terminals 2 and 4.
- If there is no continuity, replace the relay.
3. Reinstall EFI main relay.
