Scan Tool Testing and Procedures

ENGINE OPERATING CONDITION

NOTICE: The values given below for "Normal Condition" are representative values, so a vehicle may still be normal even if its value varies from those listed here. So do not decide whether a part is faulty or not solely according to the "Normal Condition" here.

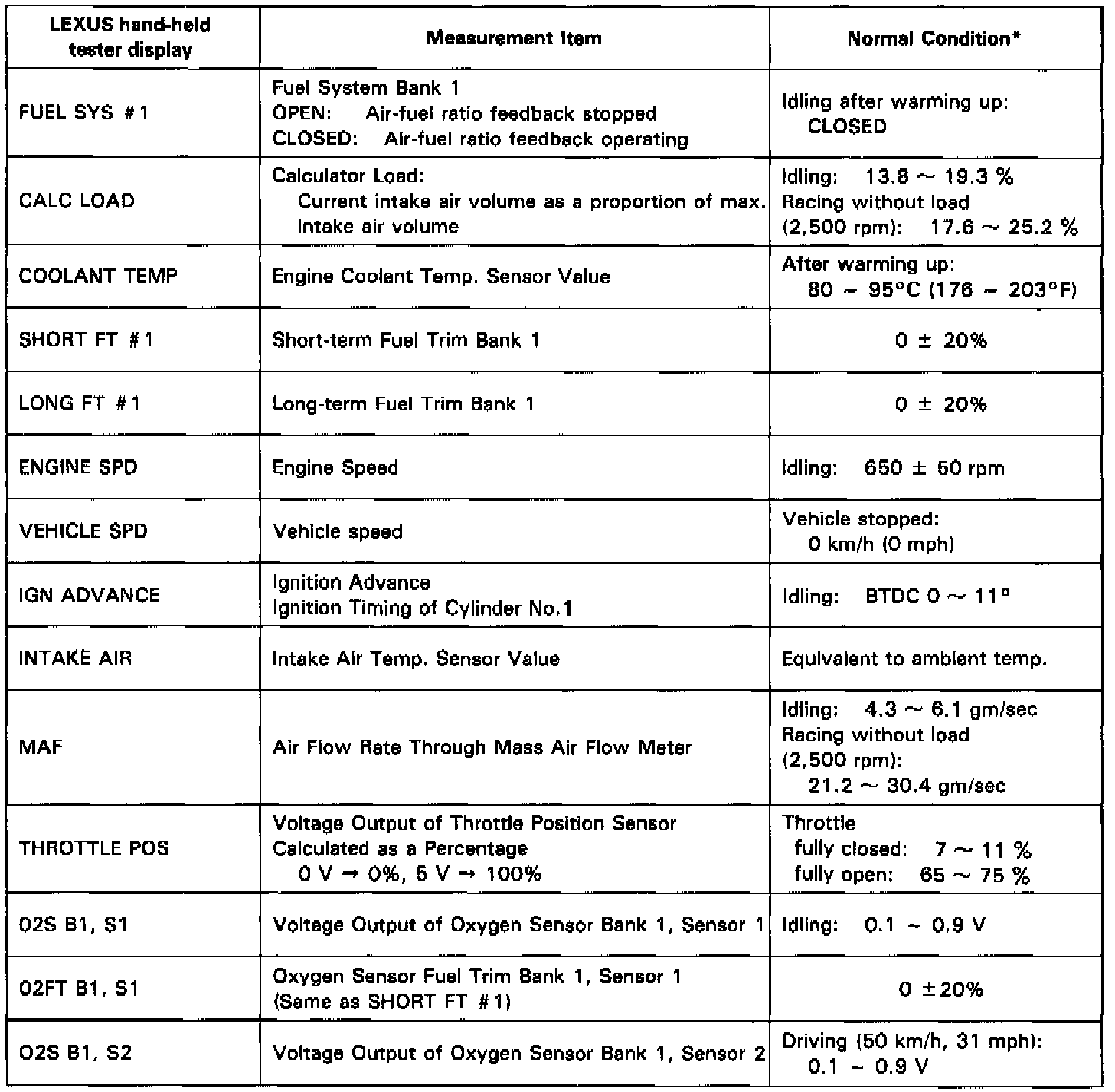

CARB Mandated Signals:

CARB Mandated Signals

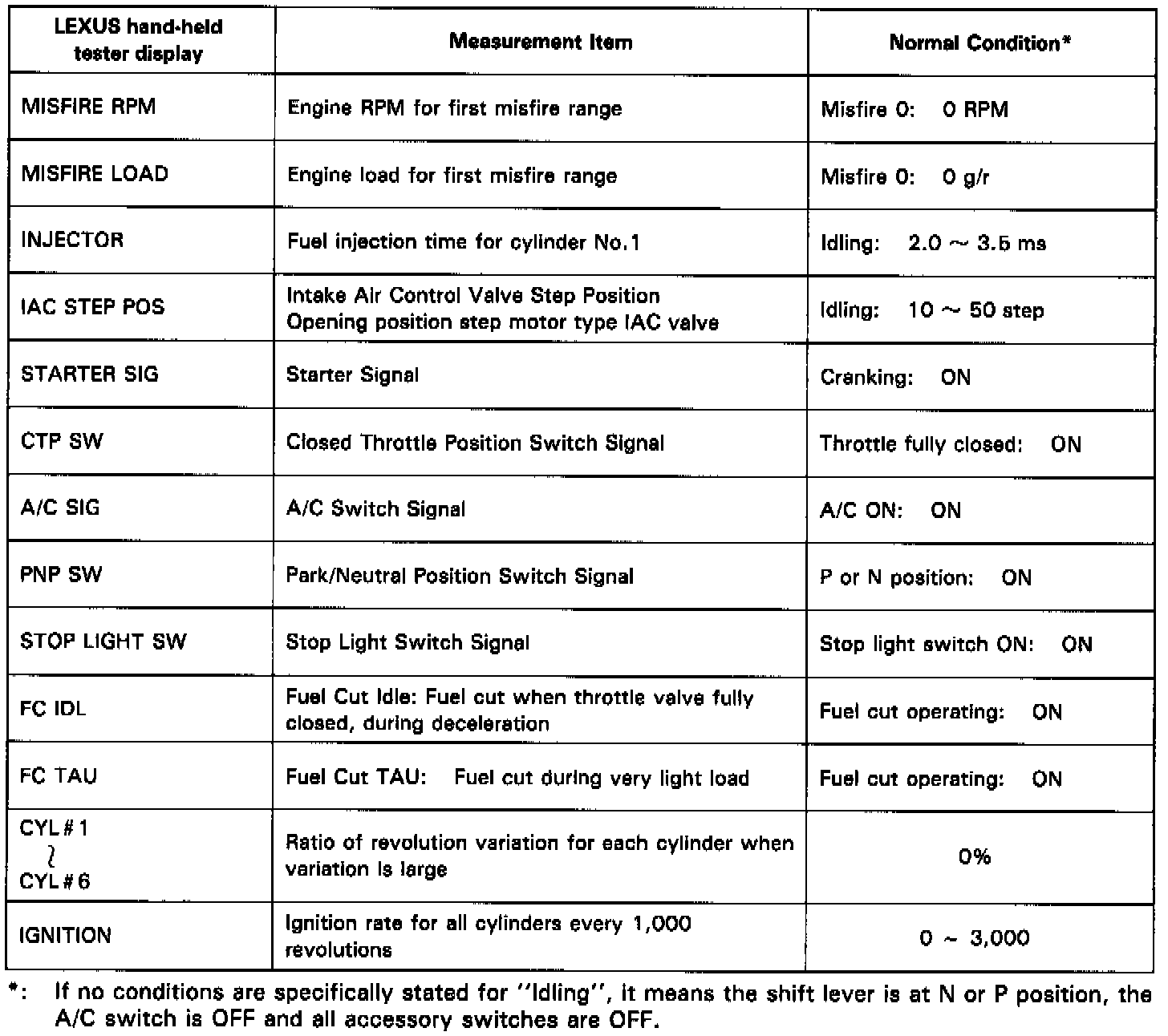

LEXUS Enhance Signals Chart 1 Of 2:

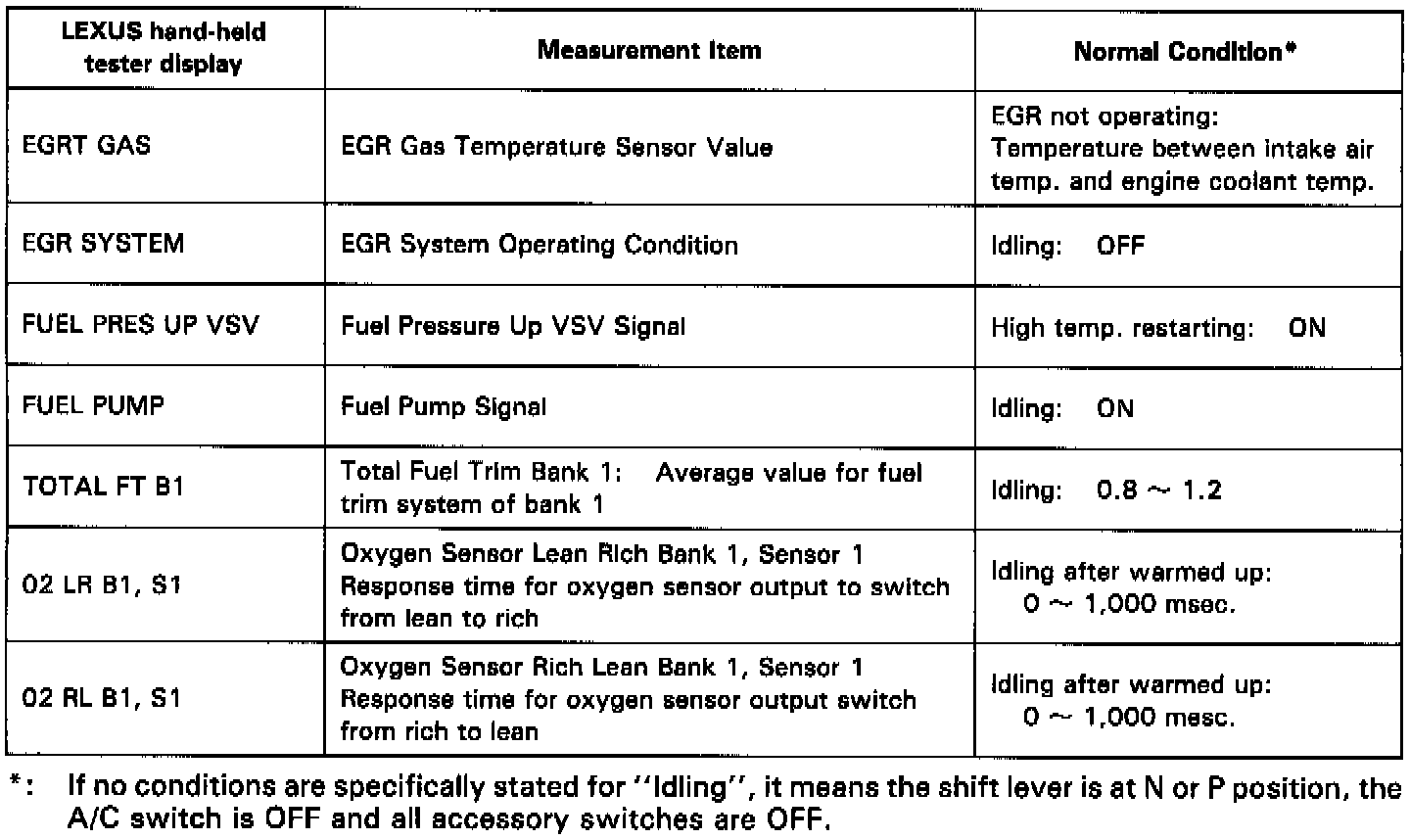

LEXUS Enhanced Signals Chart 2 Of 2:

LEXUS Enhanced Signals
