Throttle Position Sensor: Testing and Inspection

1. INSPECT THROTTLE POSITION SENSOR
- Apply vacuum to the throttle opener.

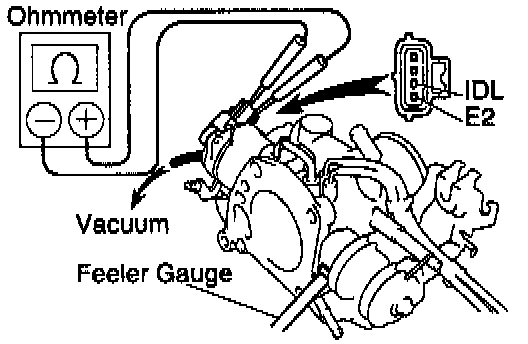

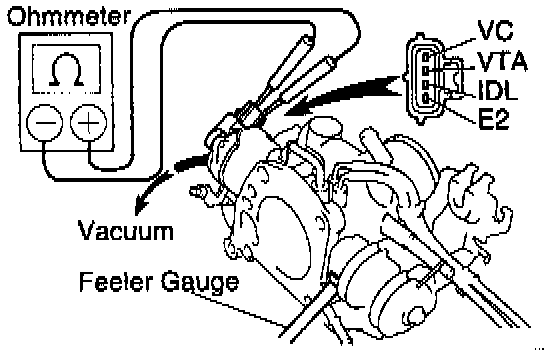

- Insert a 0.50 mm (0.020 in.) or 0.75 mm (0.030 in.) feeler gauge between the throttle stop screw and stop lever.

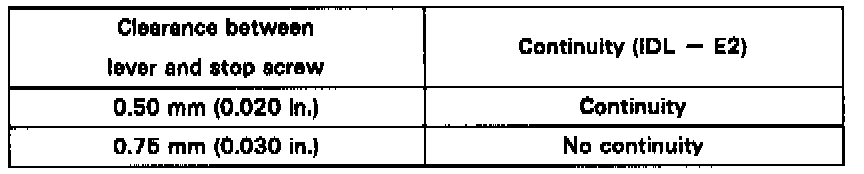

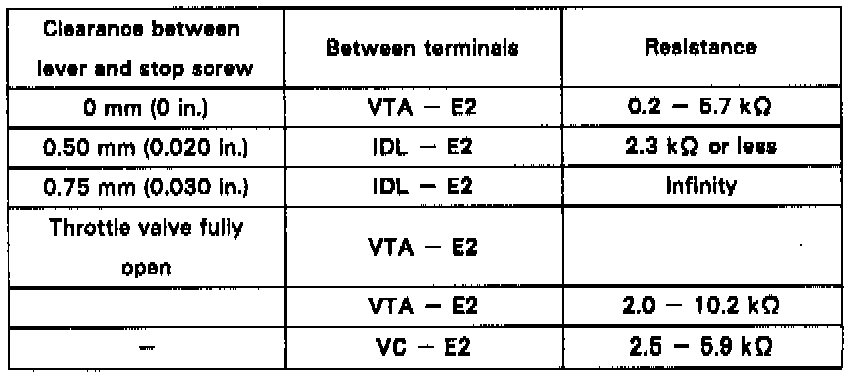

- Using an ohmmeter, measure the resistance between each terminal.
2. IF NECESSARY, ADJUST THROTTLE POSITION SENSOR

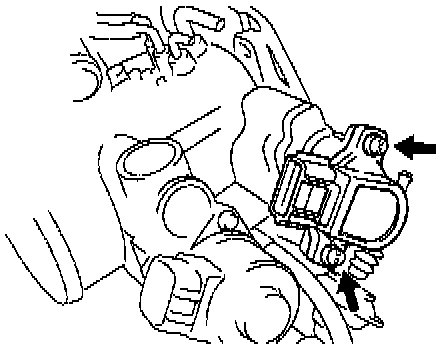

- Loosen the 2 set screws of the sensor.
- Apply vacuum to the throttle opener.
- Insert a 0.62 mm (0.024 in.) feeler gauge between the throttle stop screw and stop lever.





- Connect the test probe of an ohmmeter to the terminals IDL and E2 of the sensor.

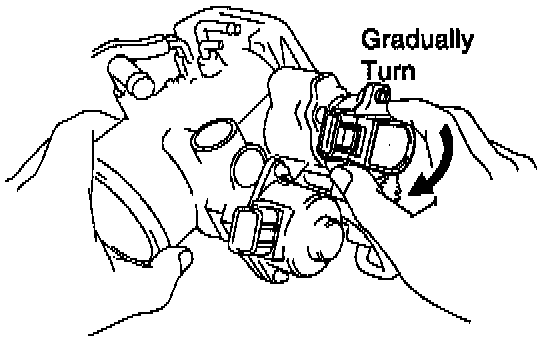

- Gradually turn the sensor clockwise until the ohmmeter deflects. and secure it with the 2 set screws.
- Recheck the continuity between terminals IDL and E2.
