Shift Interlock Control Module: Testing and Inspection

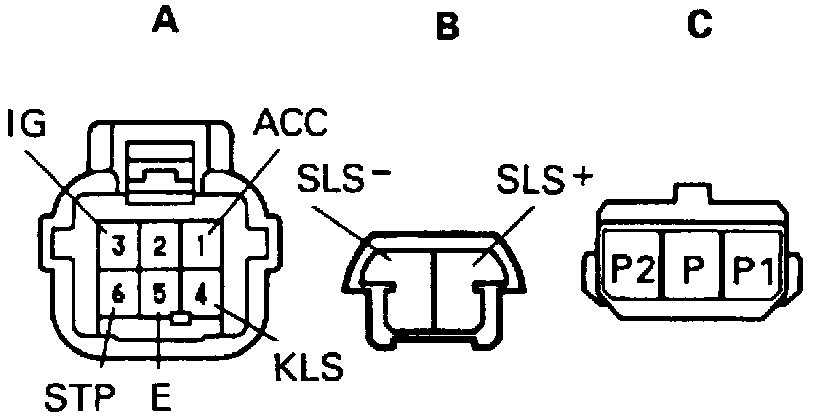

Fig. 3 Shift Lock ECU Terminal Identification.:

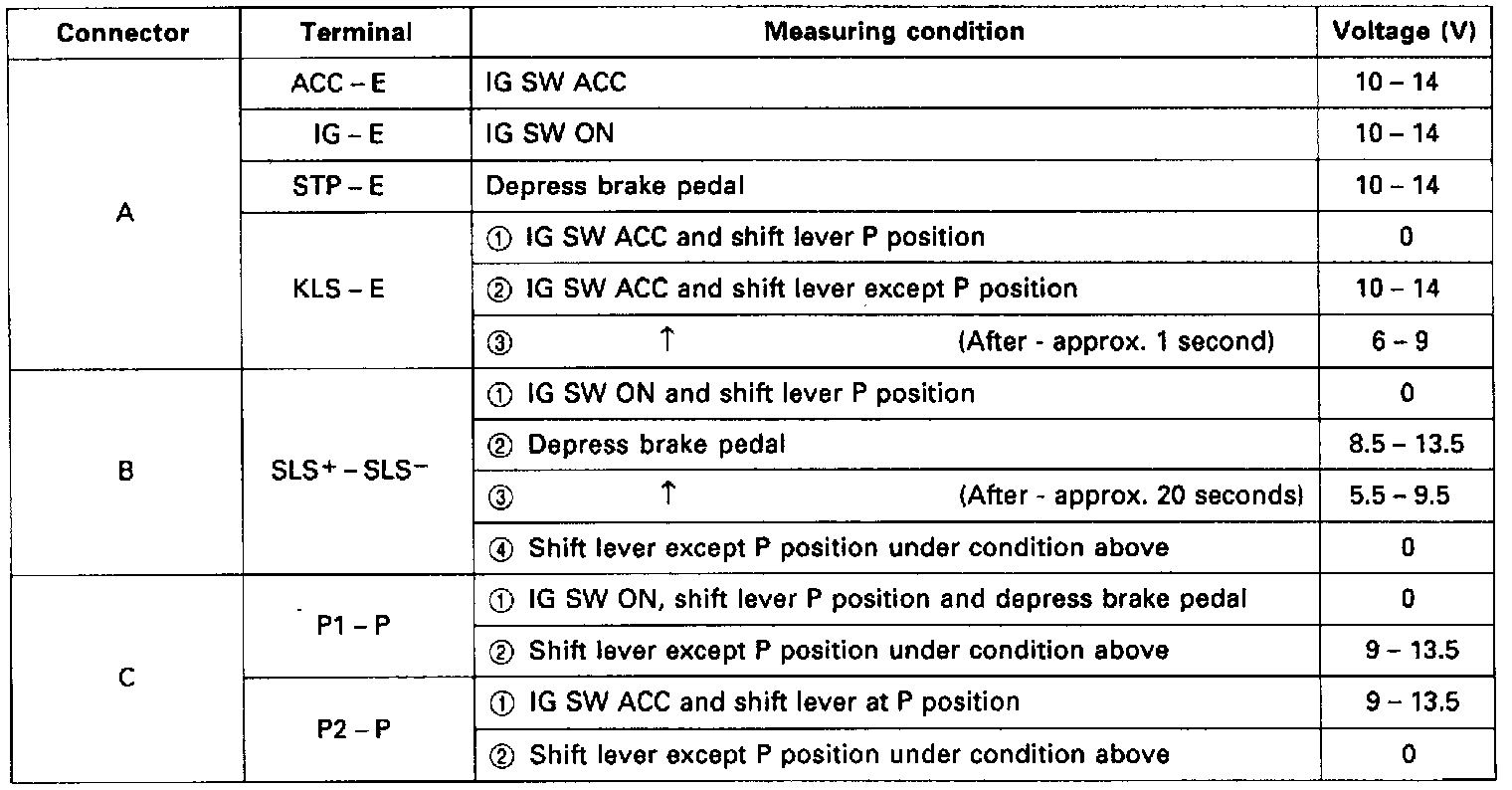

Fig. 4 Shift Lock Control ECU Inspection.:

Using a voltmeter, measure the voltage at each terminal of the ECU, Fig. 3. Refer to Fig. 4 for test conditions and voltage specifications.
