Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS ECU | Behind left kick panel, above relay block No. 1. See Figure. |
| Auto Antenna ECU | Behind right kick panel. See Figure. |
| Cruise Control ECU | Behind left side of instrument panel, left of cluster. See Figure. |
| Differential Lock ECU | Behind right kick panel. See Figure. |
| Engine Control Module (ECM) | Behind right side of dash, above glove box. See Figure. |
| Glass Breakage ECU | Behind fuse block, on left side of dash. See Figure. |

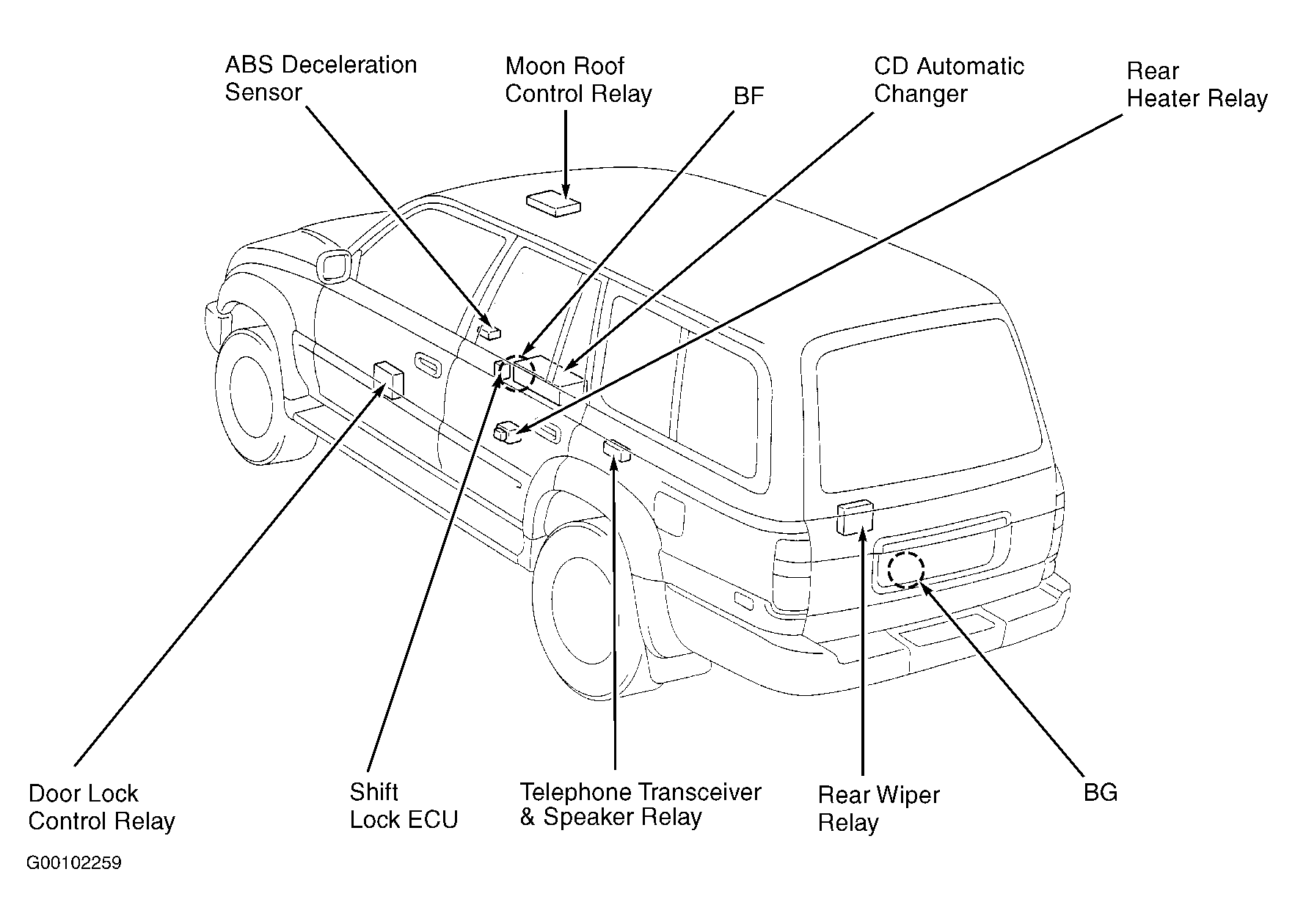

| Shift Lock ECU | Under center console, near gearshift lever. See Figure. |
| Theft Deterrent ECU | Under right front floor board. See Figure. |
