Electrical Component Locator: Switches
SWITCHES
| Component | Component Location |
|---|---|
| A/C Dual Pressure Switch | On refrigerant line, on left front corner of engine compartment. See Figure. |
| Brake Fluid Level Warning Switch | In master cylinder reservoir cap. See Figure. |
| Buckle Switch | In driver-side seat belt buckle. |
| Center Differential Lock Indicator Switch | On rear of transmission. See Figure. |
| Electronically Controlled Transmission Pattern Select Switch | Bottom of shift selector. |

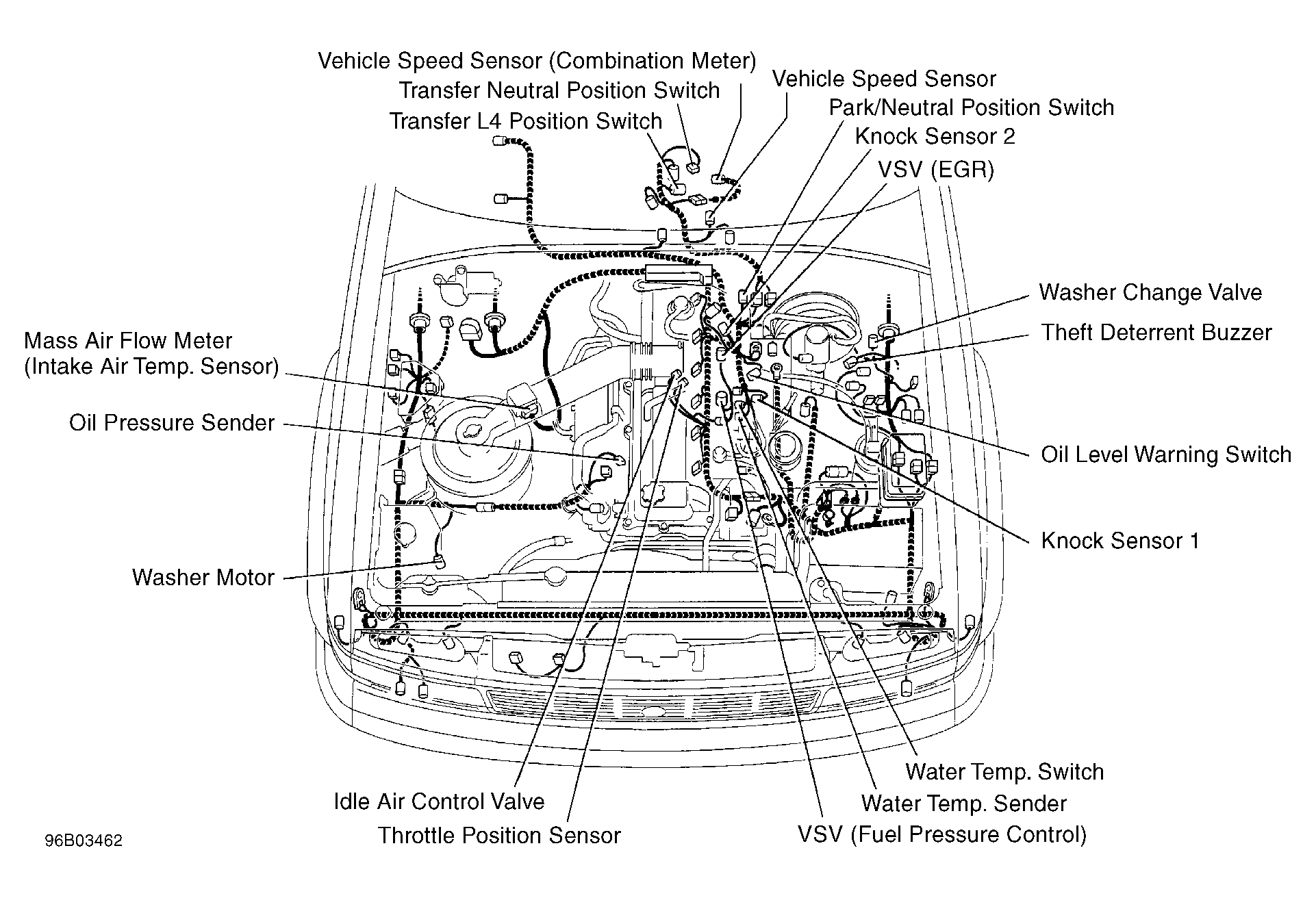

| Oil Level Warning Switch | On left side of engine block. See Figure. |
| Parking Brake Switch | Below parking brake lever in center console. |
| Park/Neutral Position Switch | On left side of transmission. See Figure. |
| Rear Differential Lock Position Switch | On rear differential. |
| Stoplamp Switch | On bracket above brake pedal. |
| Transfer L4 Position Switch | On rear of transmission. See Figure. |
| Transfer Neutral Position Switch | On rear of transmission. See Figure. |
| Water Temperature Switch | On front of engine, near thermostat. See Figure. |
