Firing Order & Cylinder Numbering

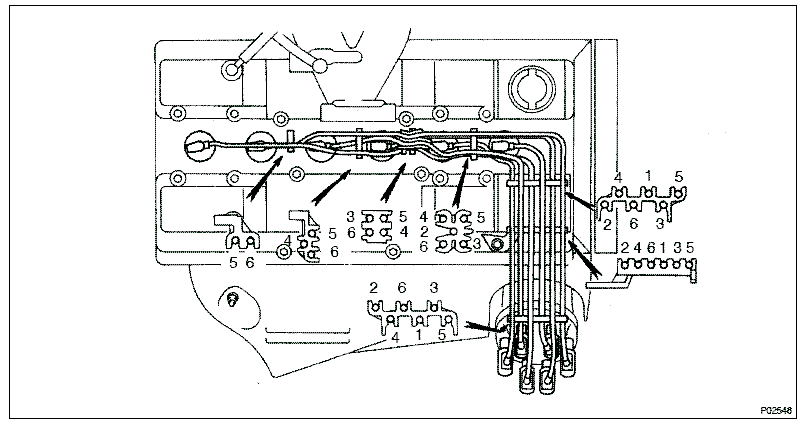

Fig 1: Ignition Wiring Routing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FIRING ORDER

Application	Firing Order
Firing Order	1-5-3-6-2-4

CYLINDER NUMBERING

Application

⁽¹⁾ Cylinder Number

Cylinder

Front Cylinder Is No. 1

⁽¹⁾	Starting at cylinder closest to timing belt-end of engine.
