Air Flow Meter/Sensor: Service and Repair

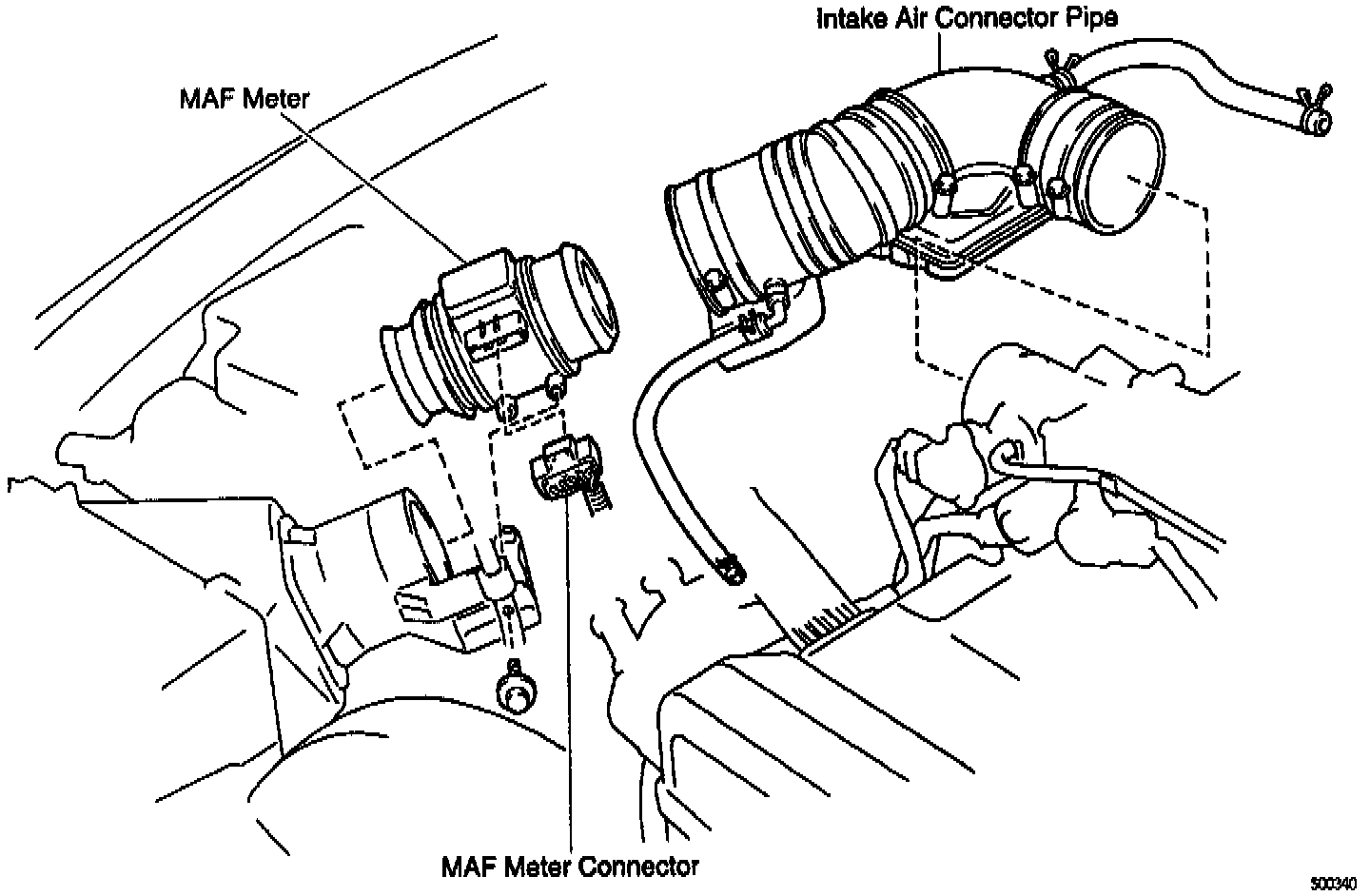

MAF METER REMOVAL





1. REMOVE INTAKE AIR CONNECTOR PIPE.

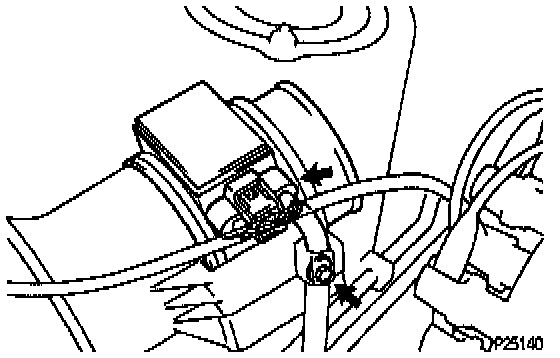

2. REMOVE MAF METER.
- Disconnect the MAF meter connector.
- Remove the bolt and MAF meter.

MAF METER INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
