Ignition Timing: Specifications

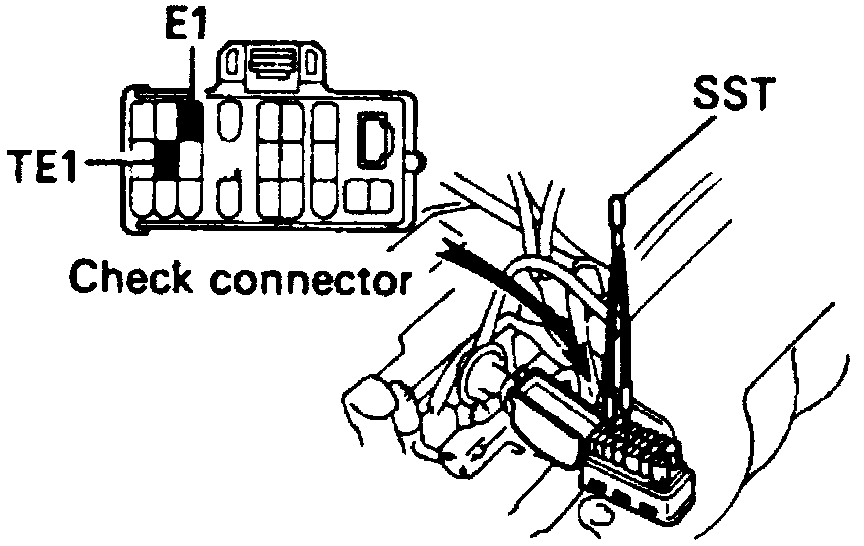

Fig. F. Check Connector Terminal Identification:
Timing BTDC: 10° [01]
[01] -- Connect jumper wire between terminals TE1 and E1, Fig. F.
Timing BTDC: 10° [01]
[01] -- Connect jumper wire between terminals TE1 and E1, Fig. F.
