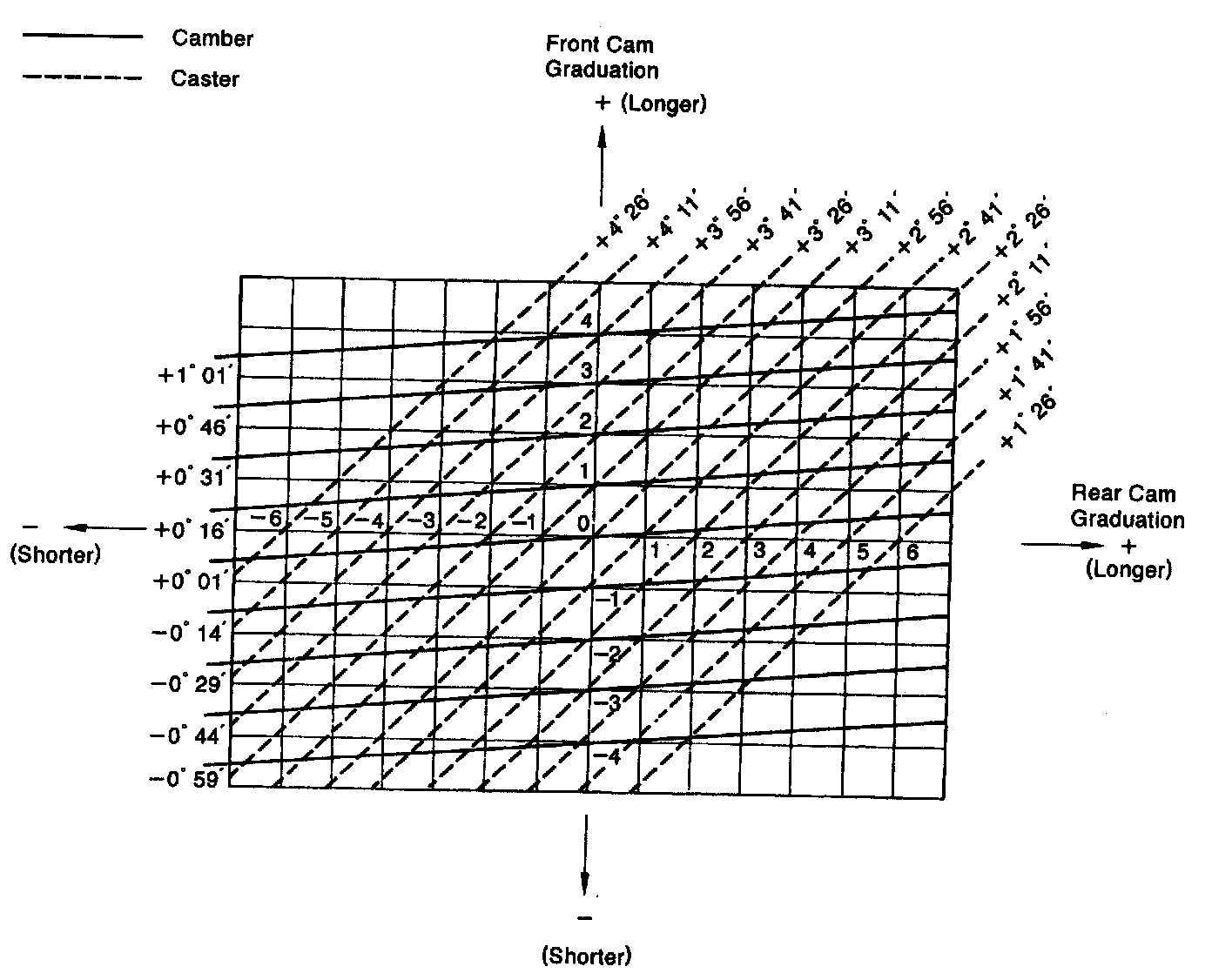

Front Adjustment Chart

HOW TO READ ADJUSTMENT CHART













(a) Mark on the graph the measurements taken from the vehicle.

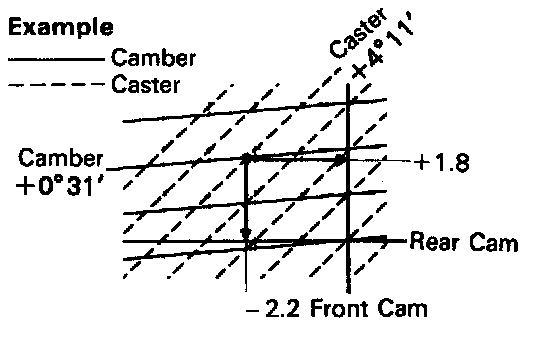

Example:
Camber +O°31'
Caster +3°56'

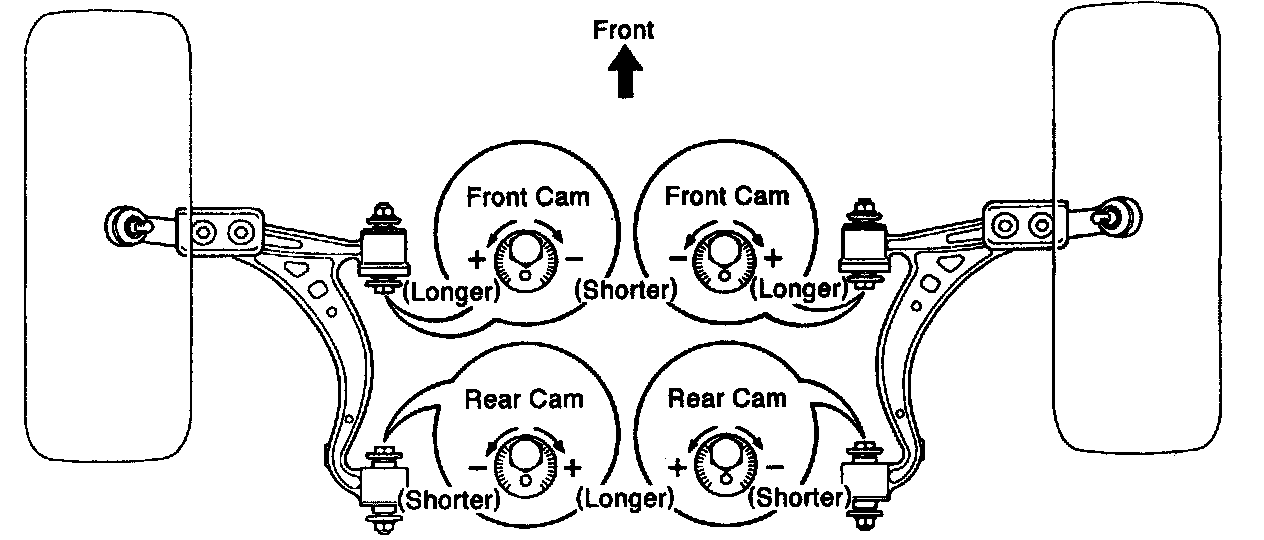

(b) As shown in the illustration, read from the graph the amounts by which the front and/or rear cams are to be adjusted.

Amount to turn adjusting cam (by graduation):
Front cam +(Longer) 1.8
Rear cam -(Shorter) 2.2
