Air Flow Meter/Sensor: Service and Repair

1. REMOVE BATTERY CLAMP COVER

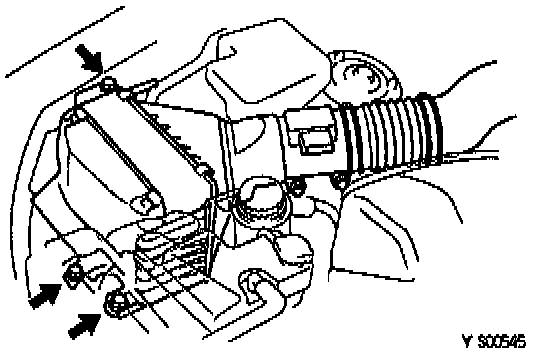

2. REMOVE AIR CLEANER CASE AND MAF METER ASSEMBLY
- Disconnect the MAF meter connector.
- Loosen the hose clamp.
- Remove the 2 bolts and air cleaner case assembly.
3. REMOVE MAF METER FROM AIR CLEANER CASE
- Disconnect the MAF meter connector.
- Remove the 2 bolt and MAF meter.

INSTALLATION HINT: Installation is in the reverse order of removal.
