ECM Inspection

1. REMOVE NO.2 UNDER COVER.
2. REMOVE ECM PROTECTOR.
- Take out the front side of the floor carpet.
- Remove the 2 nuts and ECM protector.





3. REMOVE ECM
- Remove the nut, and disconnect the ECM from the floor panel.

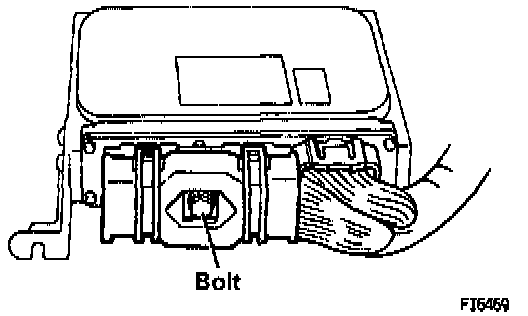

- Fully loosen the bolt and disconnect the 2 ECM connectors, and remove the ECM.
4. INSPECT ECM.





5. REINSTALL ECM.
- Connect the 2 ECM connectors.
- Match the male connector correctly with the female connector, then press them together.
- Tighten the bolt.

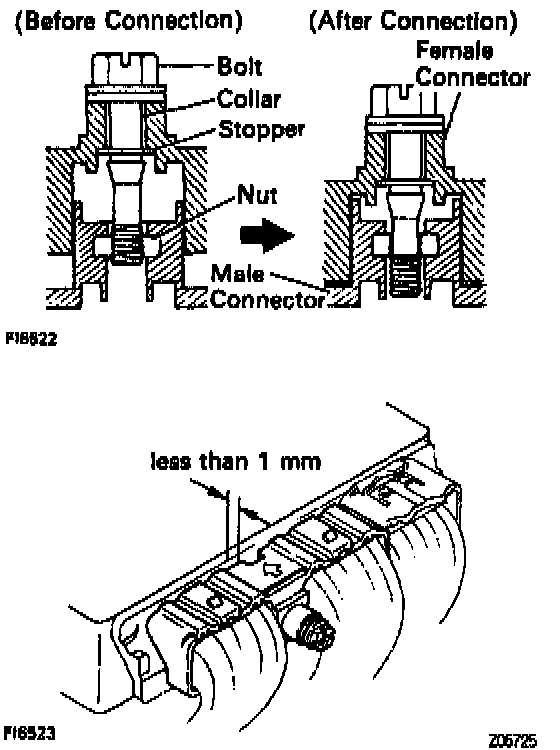

- Make sure the connector is completely connected, by tightening the bolt until there is a clearance of less than 1 mm (0.04 in.) between bottom of the male connector and end of the female connector.
- Install the ECM with the nut.
6. REINSTALL ECM PROTECTOR.
- Install the ECM protector with the 2 nuts.
- Install the floor carpet.
7. REINSTALL NO.2 UNDER COVER.
