Transmission Position Sensor/Switch: Service and Repair

1. REMOVE FRONT EXHAUST PIPE.
2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR.

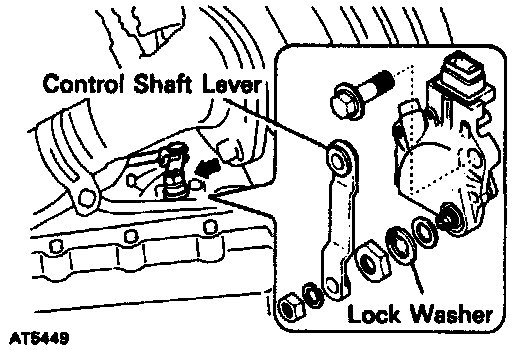

3. REMOVE PARK/NEUTRAL POSITION SWITCH.
- Remove the control shaft lever.
- Pry off the lock washer and remove the nut.
- Remove the bolt and pull out the park/neutral position switch.
4. INSTALL AND ADJUST PARK/NEUTRAL POSITION SWITCH.
5. CONNECT PARK 1 NEUTRAL POSITION SWITCH CONNECTOR.
6. INSTALL FRONT EXHAUST PIPE.
