No.1 Vehicle Speed Sensor Assembly Replacement

1. REMOVE TRANSMISSION CONTROL ROD REAR SIDE.
- Remove the transmission control rod rear side set nut.

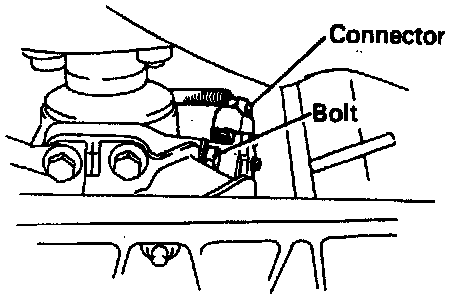

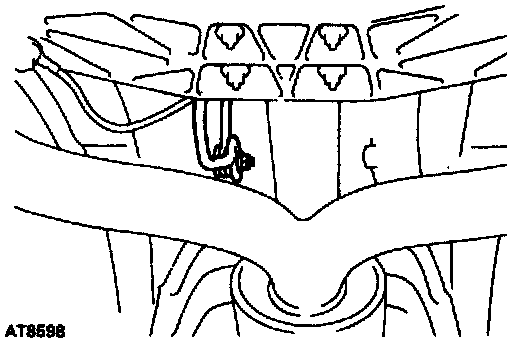

2. DISCONNECT NO.1 VEHICLE SPEED SENSOR CONNECTOR.
3. REMOVE NO.1 VEHICLE SPEED SENSOR ASSEMBLY.
- Remove the bolt and No.1 vehicle speed sensor assembly.

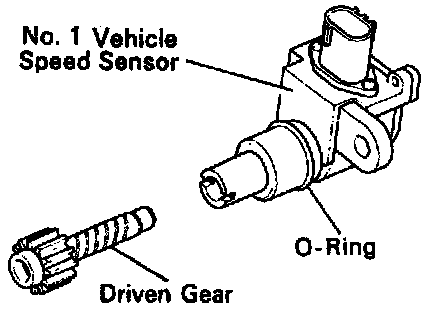

- Remove the speedometer driven gear from No.1 vehicle speed sensor.
- Remove the O-ring from the No.1 vehicle speed sensor.
4. INSTALL NO.1 VEHICLE SPEED SENSOR ASSEMBLY.
- Coat a new O-ring with ATF and install it to the speed sensor.
- Install the speedometer driven gear to the speed sensor.
- Install the No.1 vehicle speed sensor assembly and torque the bolt.

Torque.: 16 N.m (160 kgf.cm, 12 ft.lb.)

5. CONNECT NO. I VEHICLE SPEED SENSOR CONNECTOR.
6. INSTALL TRANSMISSION CONTROL ROD REAR SIDE.
7. INSPECT AND ADJUST SHIFT LEVER POSITION.
