Ignition Timing: Specifications

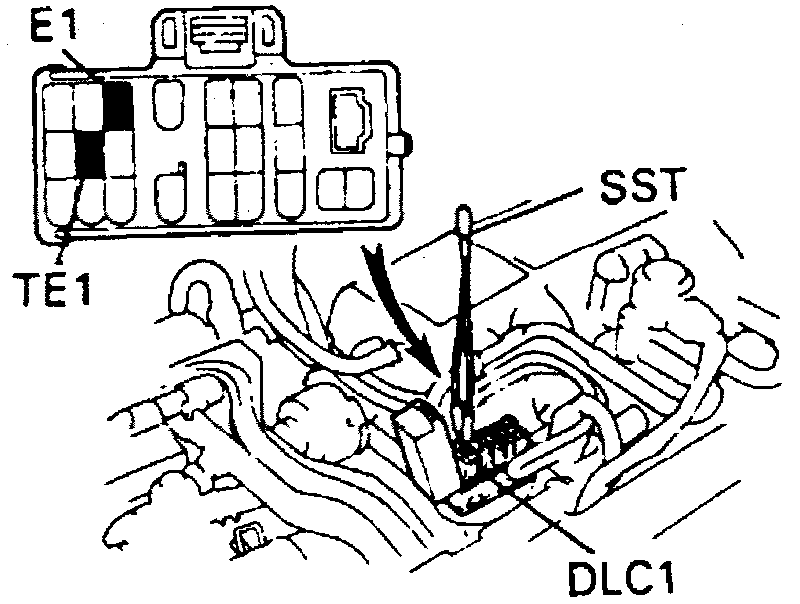

Fig. J Check Connector Terminal Identification:

Timing BTDC: 10°±2° [01]

[01] -- Connect timing light to No. 6 cylinder spark plug wire. Connect jumper wire between check connector terminals TE1 and E1, Fig. J.
