Riding Height Adjustment

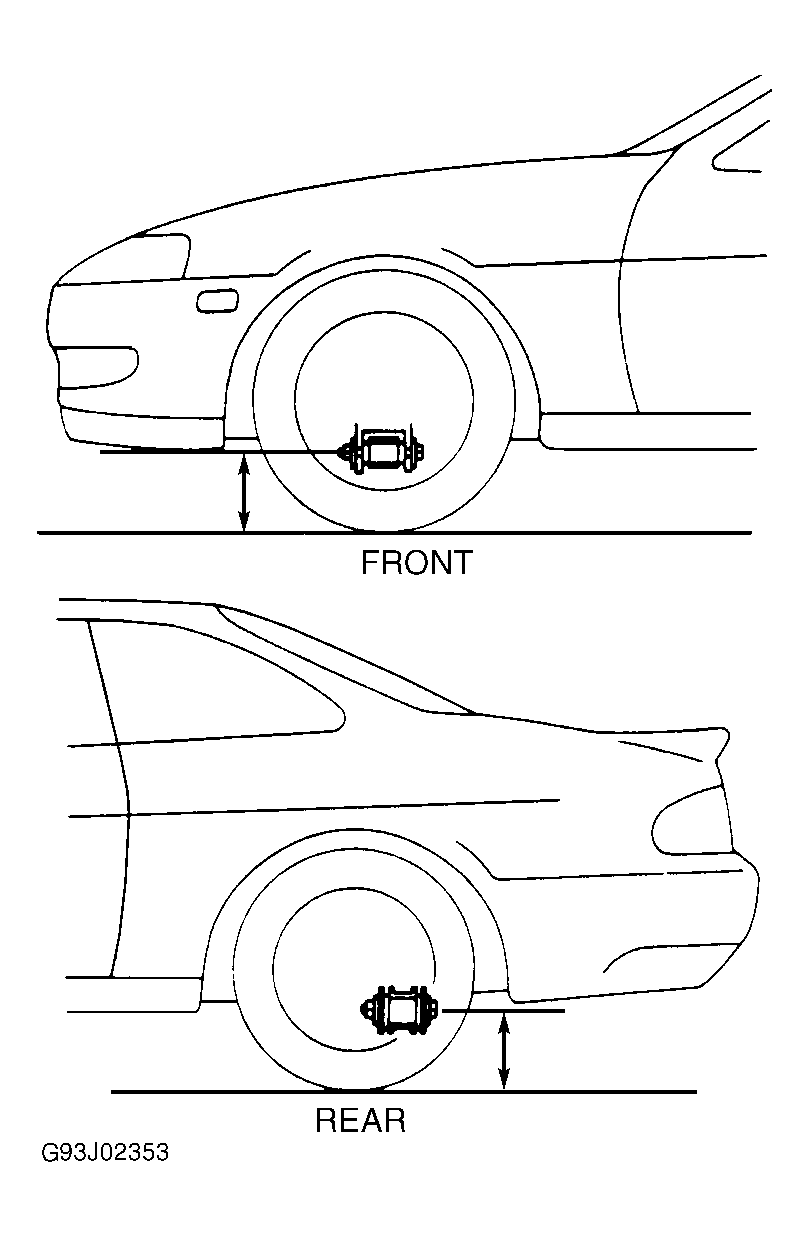

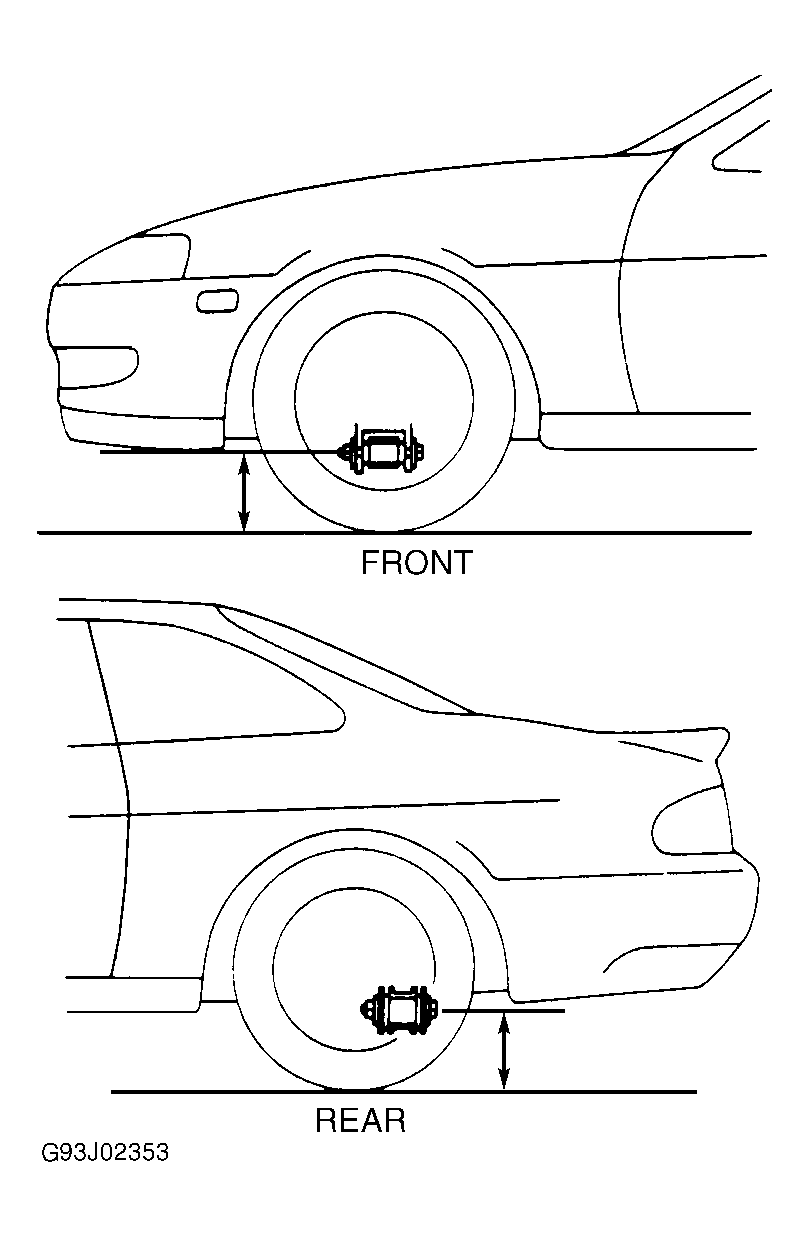

- Before adjusting wheel alignment, measure riding height. Measure riding height with vehicle on level surface and tires properly inflated. Bounce vehicle several times to allow suspension to settle. See Fig 1.
- Visually inspect vehicle for abnormal height difference from front to rear and from side to side. Remove heavy items from passenger and luggage compartments.
- Measure riding height. See RIDING HEIGHT SPECIFICATIONS table. If riding height is not within specification, inspect suspension components. Repair or replace as necessary.
RIDING HEIGHT SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| SC300 | ||
| Front | 7.6 (194) | |
| Rear | 9.9 (252) | |
| SC400 | ||
| Front | 7.6 (194) | |
| Rear | 9.9 (252) | |
