Toe-In

TOE-IN

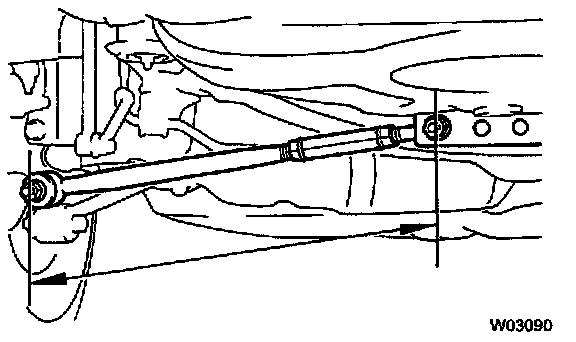

1. Measure the length of the left and right No.2 lower suspension arms. The No.2 lower suspension arm length difference should be 1 mm (0.04 inch) or less. If the left-right difference is greater than the specification, adjust the length.

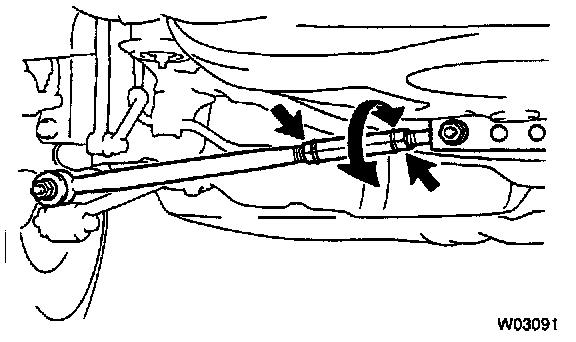

2. Loosen the lock nuts.





3. Turn the left and right lower suspension arms an equal amount to adjust toe-in.

NOTE:
^ Try to adjust the toe-in to the center value.
^ One turn of the each adjusting tube will adjust the toe-in about 36' (0.6°), 6.7 mm (0.264 inch).

4. Tighten the lock nuts to 56 Nm (41 ft.lbs.).
