Air Flow Meter/Sensor: Service and Repair

MASS AIR FLOW METER REMOVAL AND INSTALLATION

Remove MAF meter
(a) Disconnect the MAF meter connector.

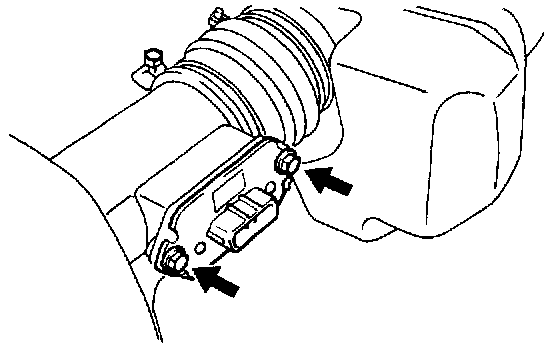

(b) Remove the 2 bolts, MAF meter and gasket.

INSTALLATION HINT: Use a new gasket.

INSTALLATION
Installation is In the reverse order of removal.
