Component Locations

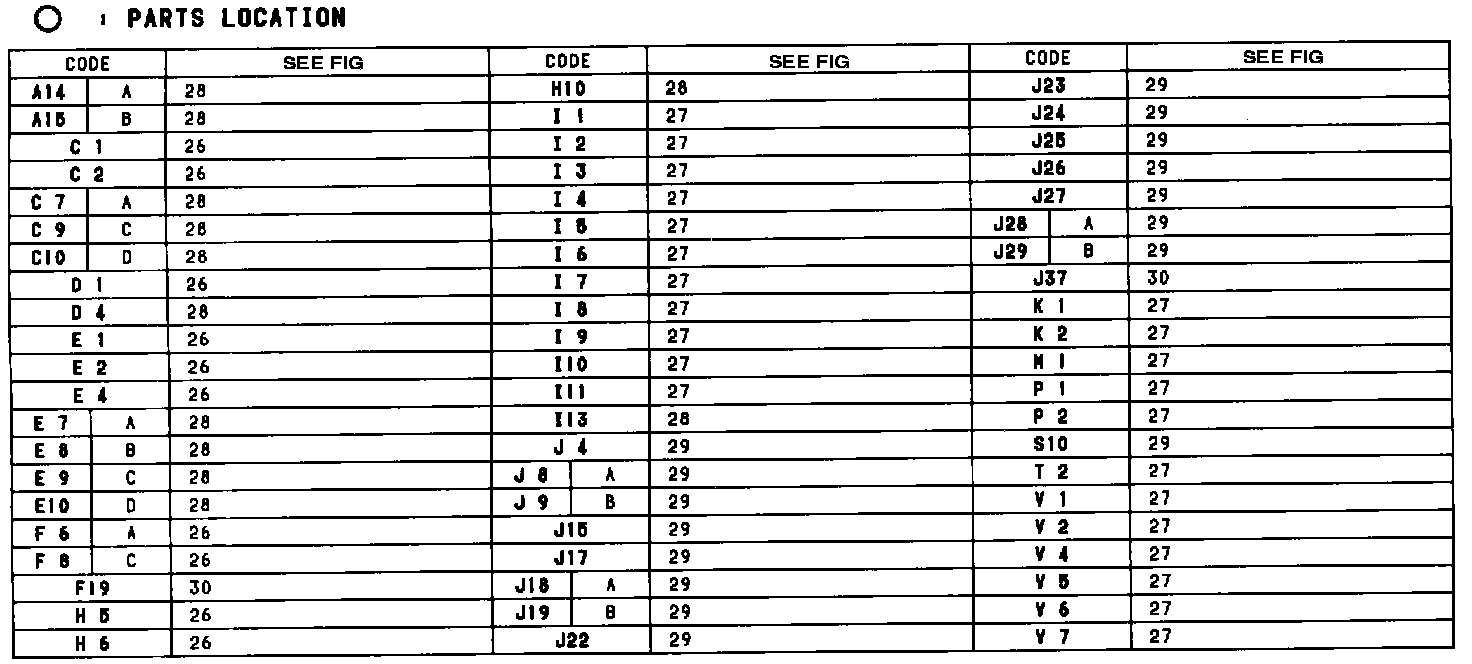

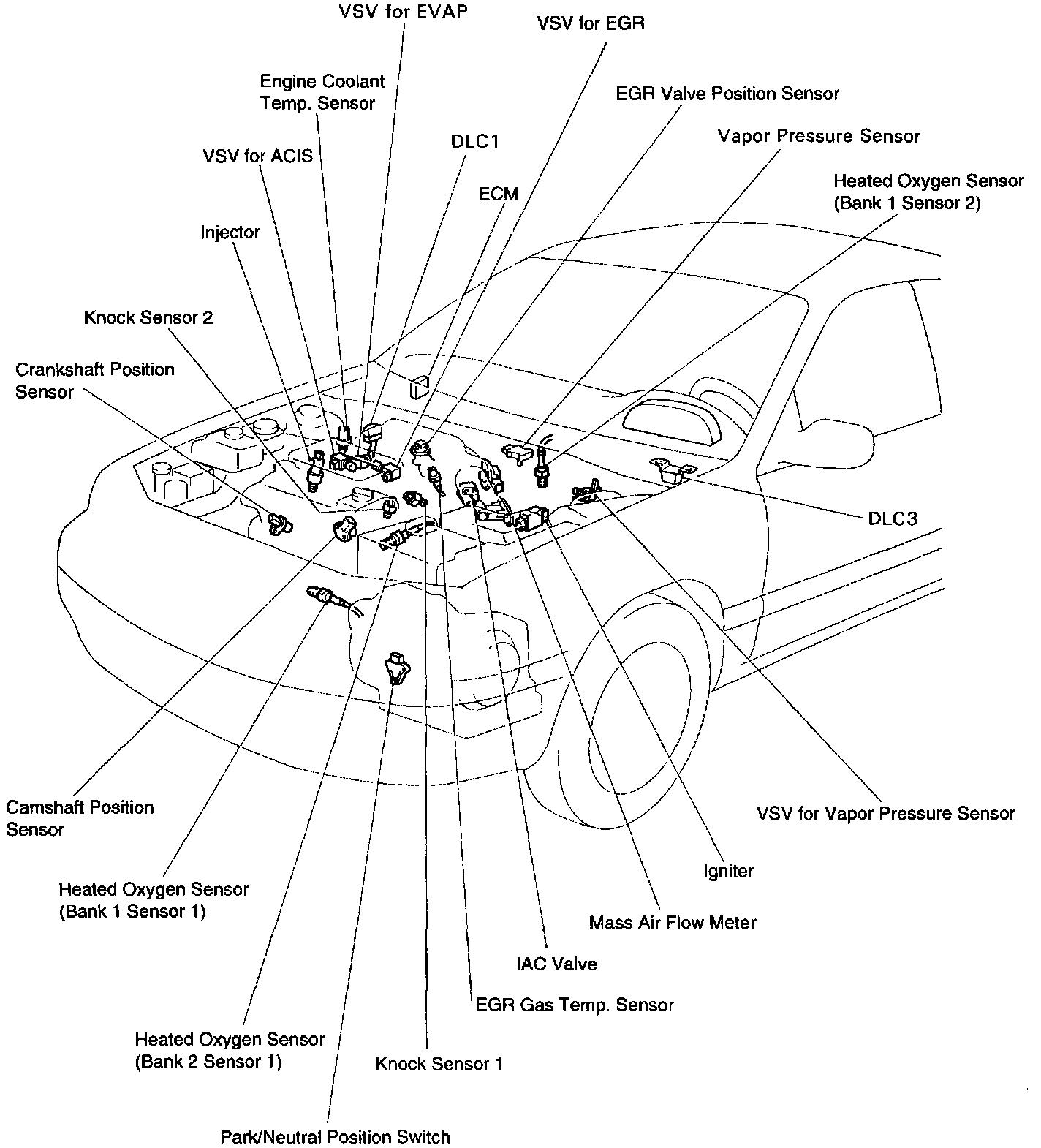

Parts Location:

PARTS LOCATION

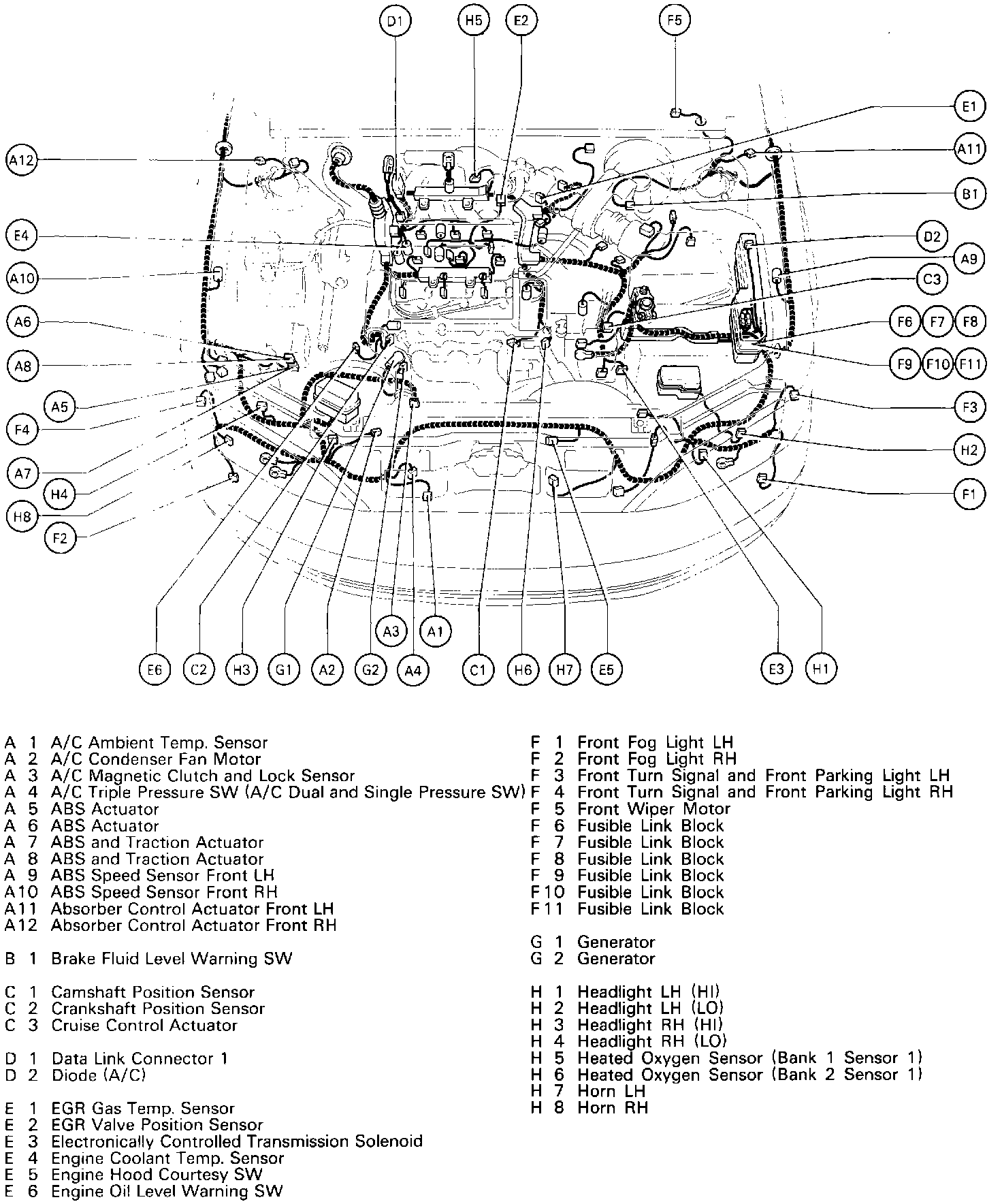

Position Of Parts In Engine Compartment (Part 1 Of 2) (Fig 26):

FIG 26

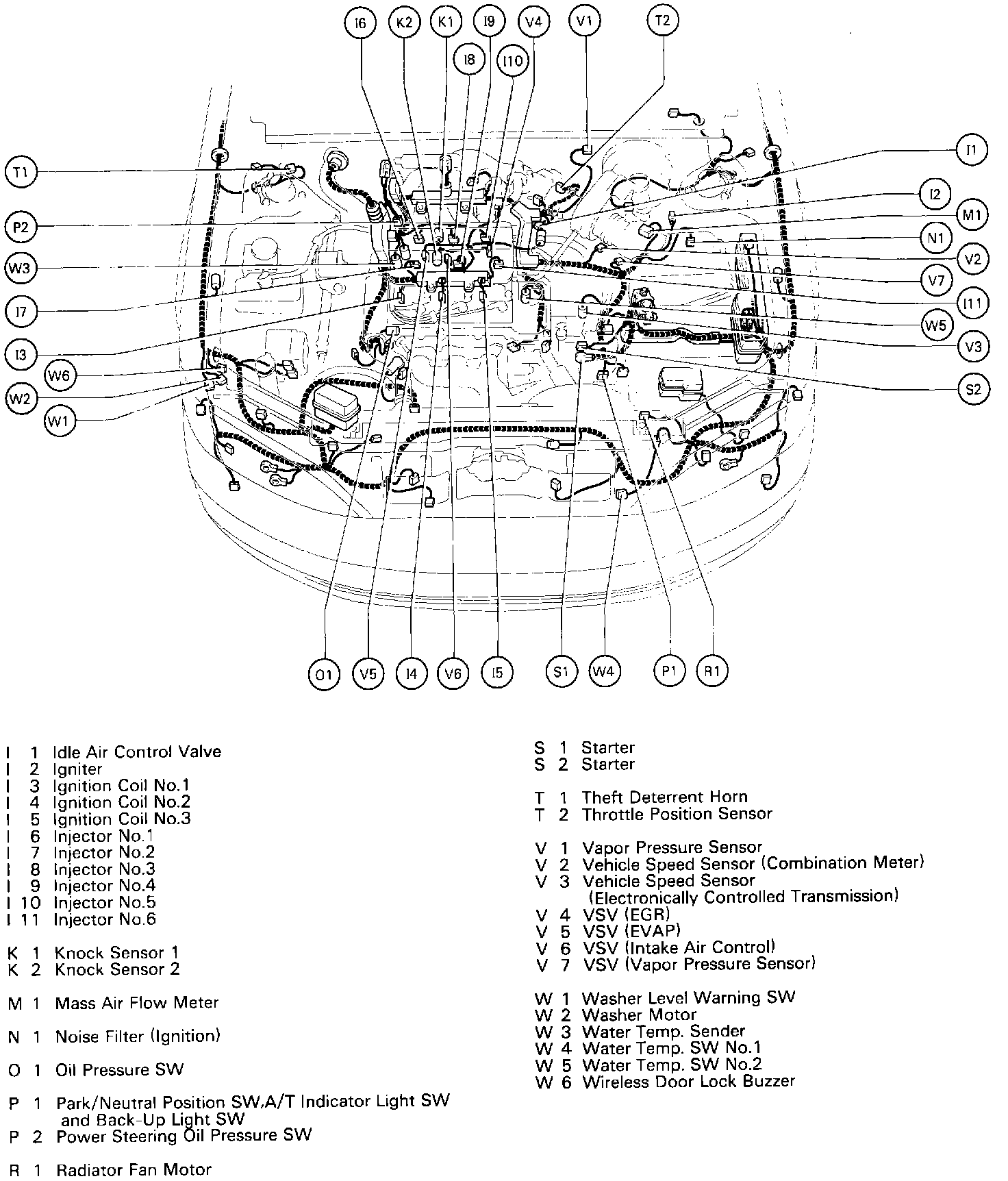

Position Of Parts In Engine Compartment (Part 2 Of 2) (Fig 27):

FIG 27

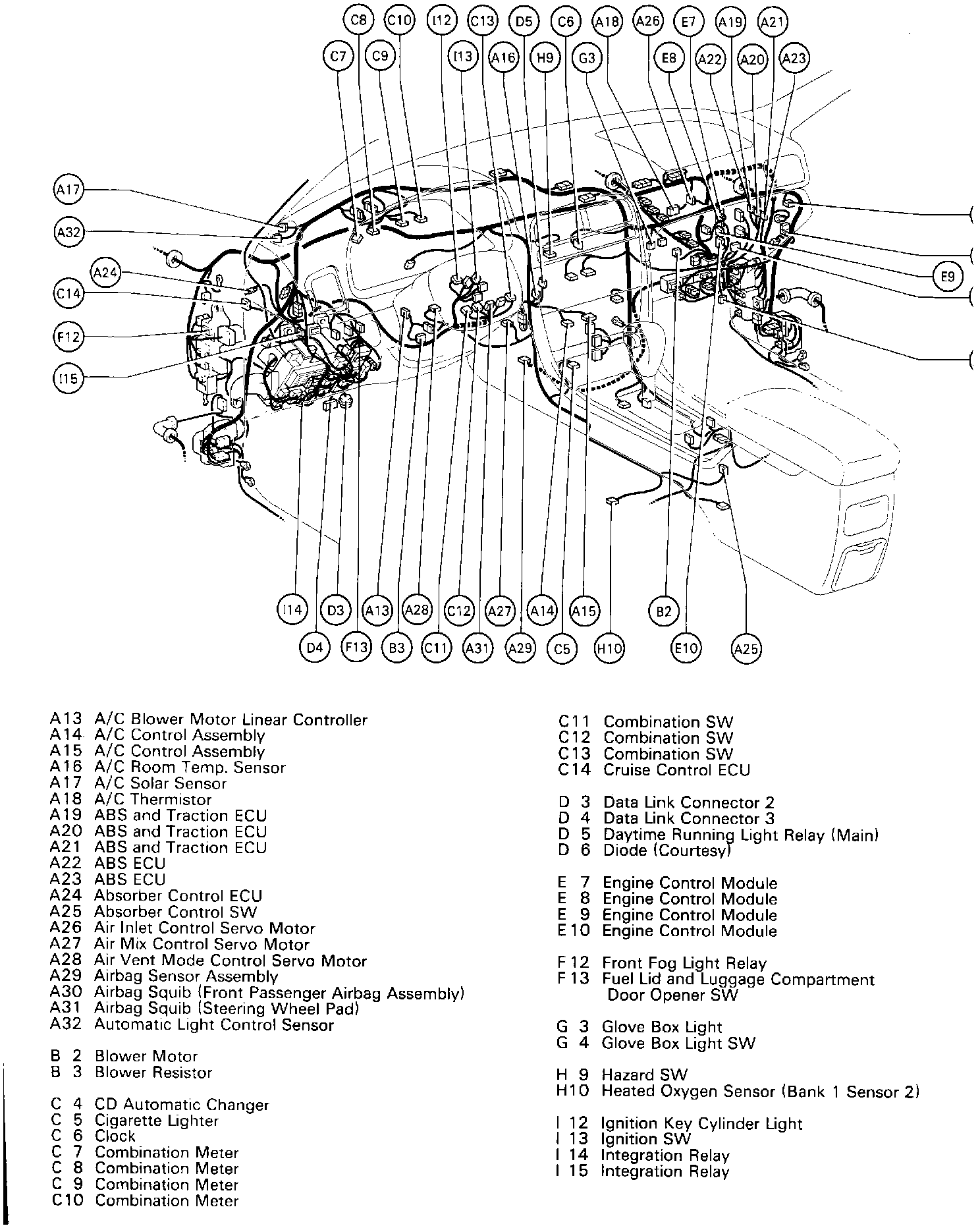

Position Of Parts In Instrument Panel (Part 1 Of 2) (Fig 28):

FIG 28

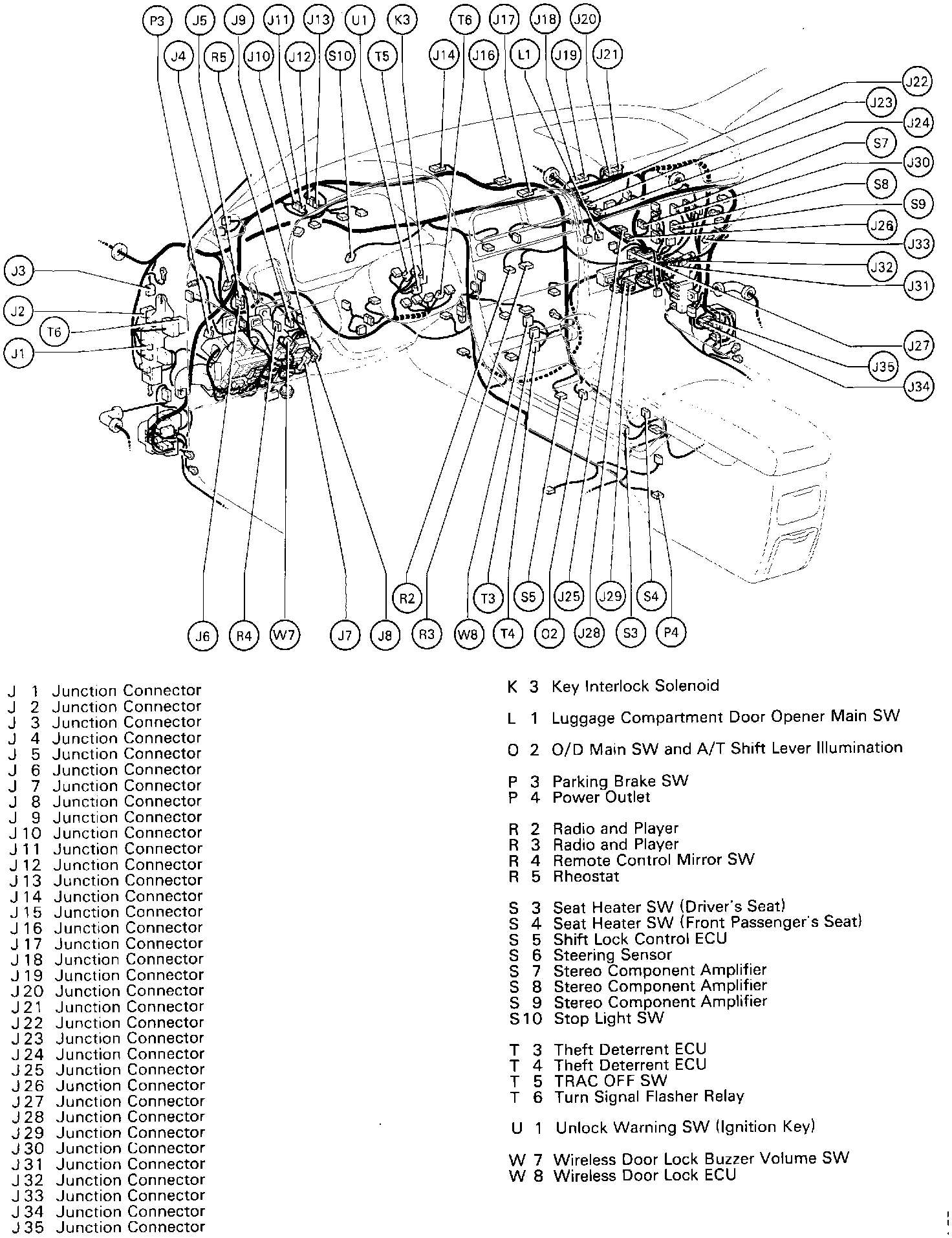

Position Of Parts In Instrument Panel (Part 2 Of 2) (Fig 29):

FIG 29

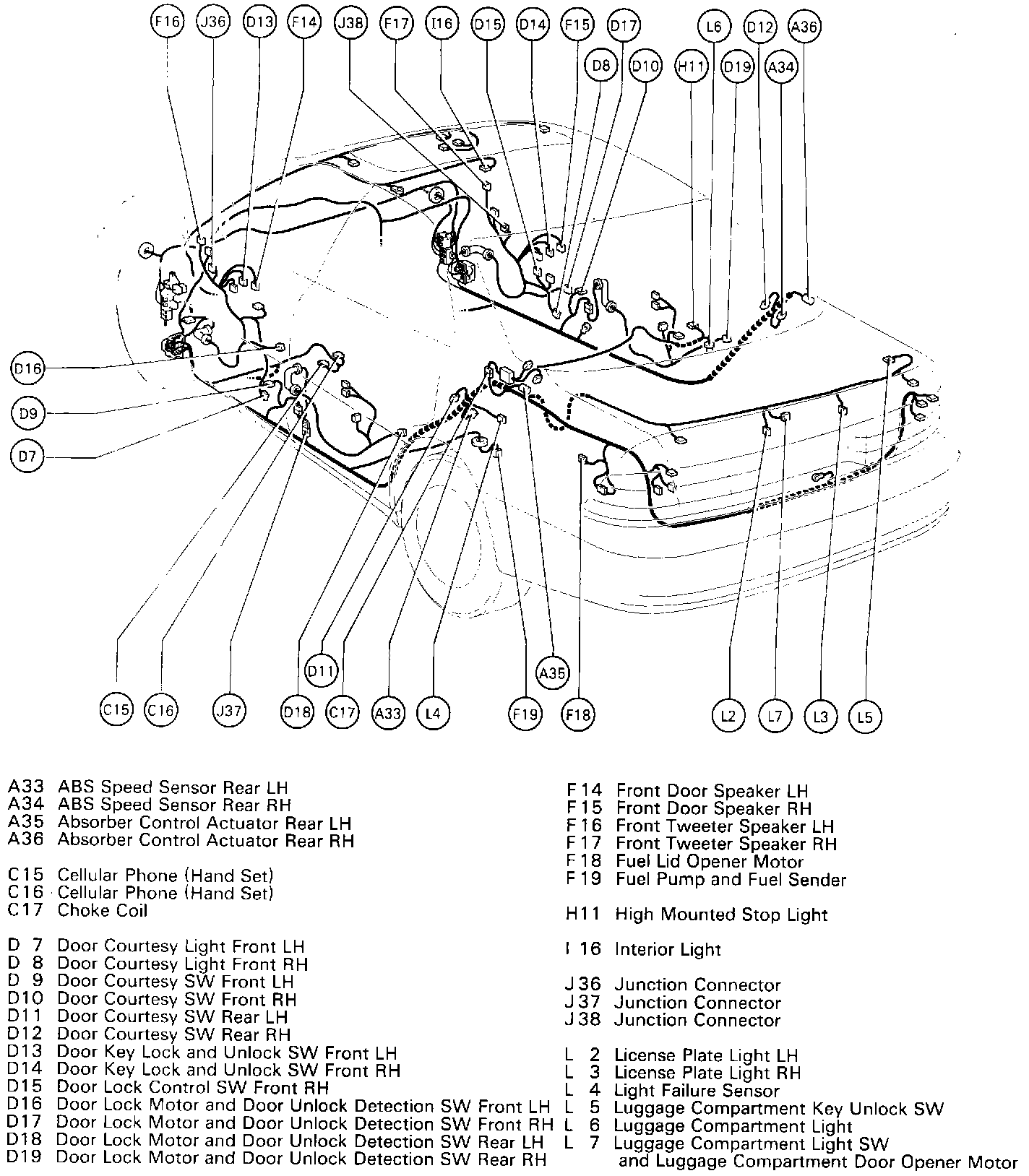

Position Of Parts In Body (Part 1 Of 2) (Fig 30):

FIG 30
