Throttle Position (TP) Sensor

NOTE: Vehicles with Traction Control System (TRAC) are equipped with a main TP sensor and a sub-TP sensor. The following procedure applies to main TP sensor. For sub-TP sensor, see SUB-THROTTLE POSITION (SUB-TP) SENSOR .

Disconnect TP sensor connector. Measure resistance between specified terminals of TP sensor connector. See TP SENSOR RESISTANCE table. See Fig 1. If resistance is not as specified, adjust TP sensor. See THROTTLE POSITION (TP) SENSOR in ADJUSTMENTS article. Recheck resistance. If resistance is still not as specified, replace TP sensor.

TP SENSOR RESISTANCE

Application & Throttle Plate Position ⁽¹⁾

TP Sensor Terminals

Ohm Readings

ES300

Throttle Fully Closed

VTA & E2

200-5700

Throttle Fully Open

VTA & E2

2000-10,200

All Positions

VC & E2

2500-5900

⁽¹⁾	Disconnect vacuum hose from throttle opener. Apply vacuum to throttle opener to allow throttle to fully seat.

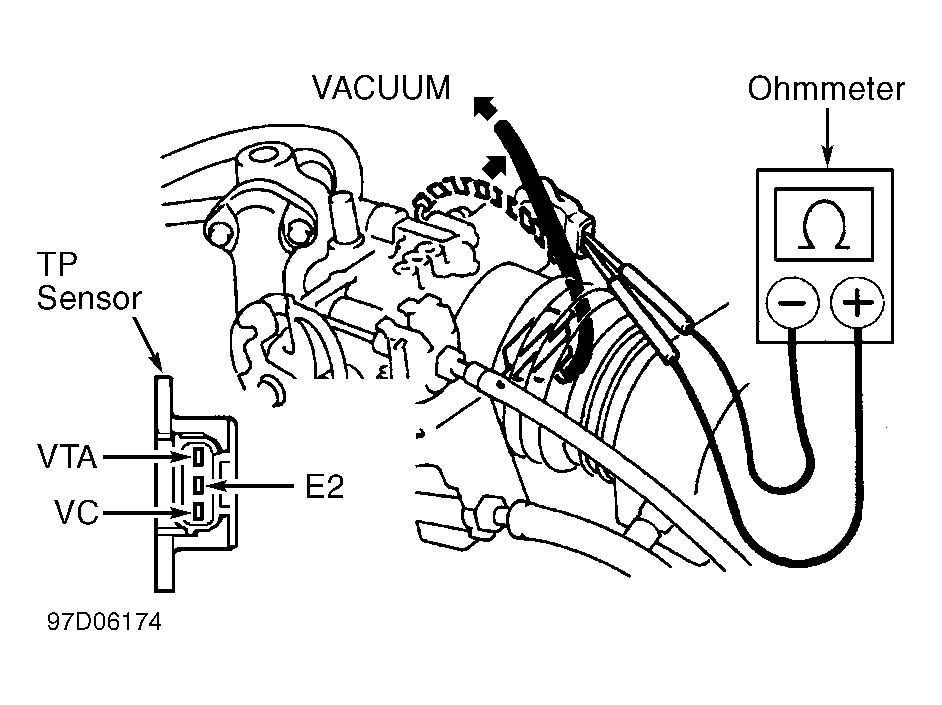

Fig 1: Identifying TP Sensor Terminals
