Version 3.1 Diagnostic Tool Set Software Communication Problem (SS001-96)

Publication date: 1996-08-30
Reference number: SS001-96

VERSION 3.1 DIAGNOSTIC TOOL SET SOFTWARE COMMUNICATION PROBLEM

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS001-96, Date of Issue: August 30, 1996

LEXUS:	1997 ES 300
GROUP:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

VERSION 3.1 DIAGNOSTIC TOOL SET SOFTWARE COMMUNICATION PROBLEM WITH 1997 ES 300

Due to a change in communication standard for the 1997 ES 300, the Version 3.1 Diagnostic Tool Set Software will display an error message when the technician attempts to use the ALL DATA list or the ACTIVE TEST functions in ENHANCED OBD II.

BULLETIN CONTENT

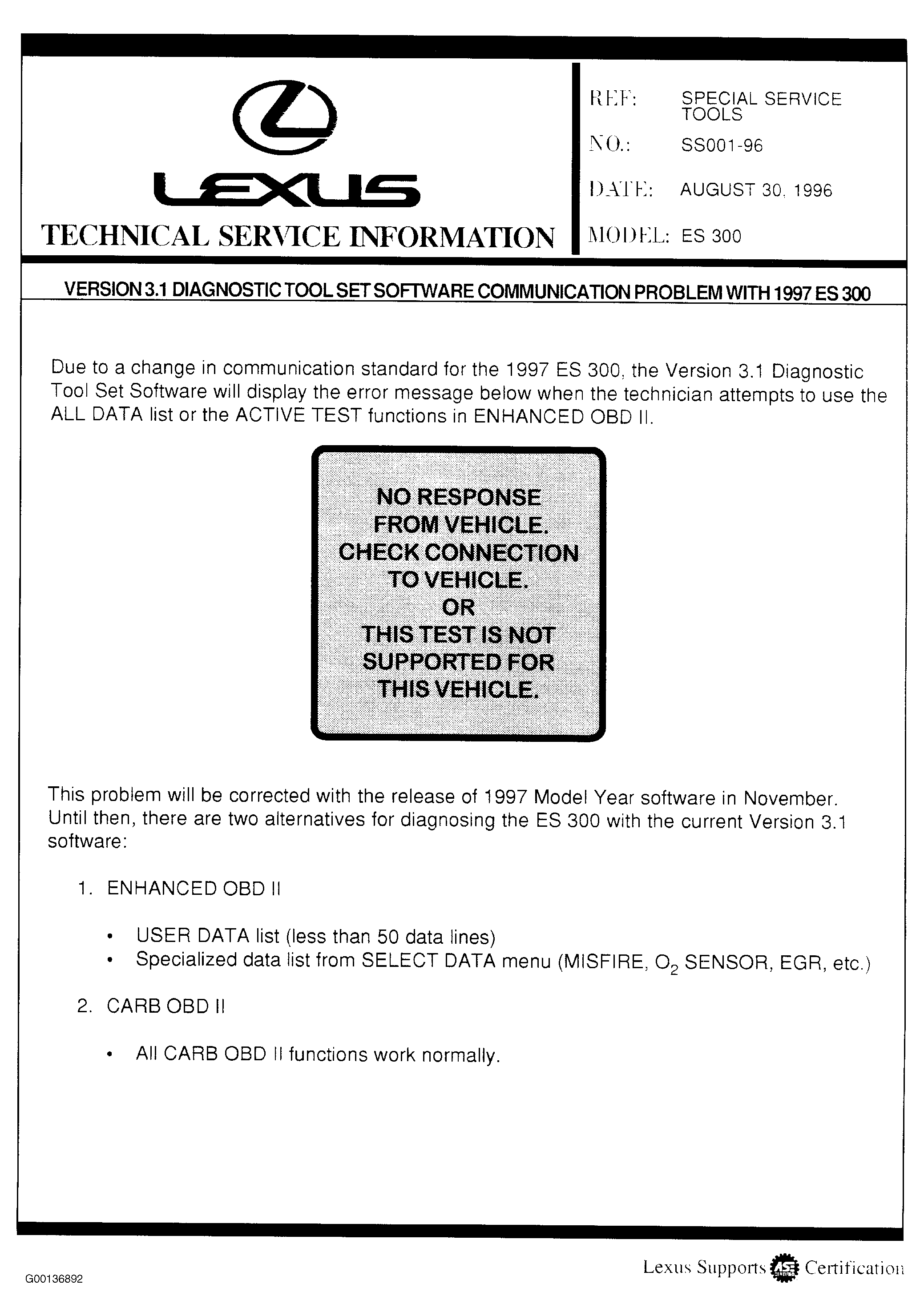

Fig 1: Page 1 of Bulletin
