Air Flow Meter/Sensor: Service and Repair

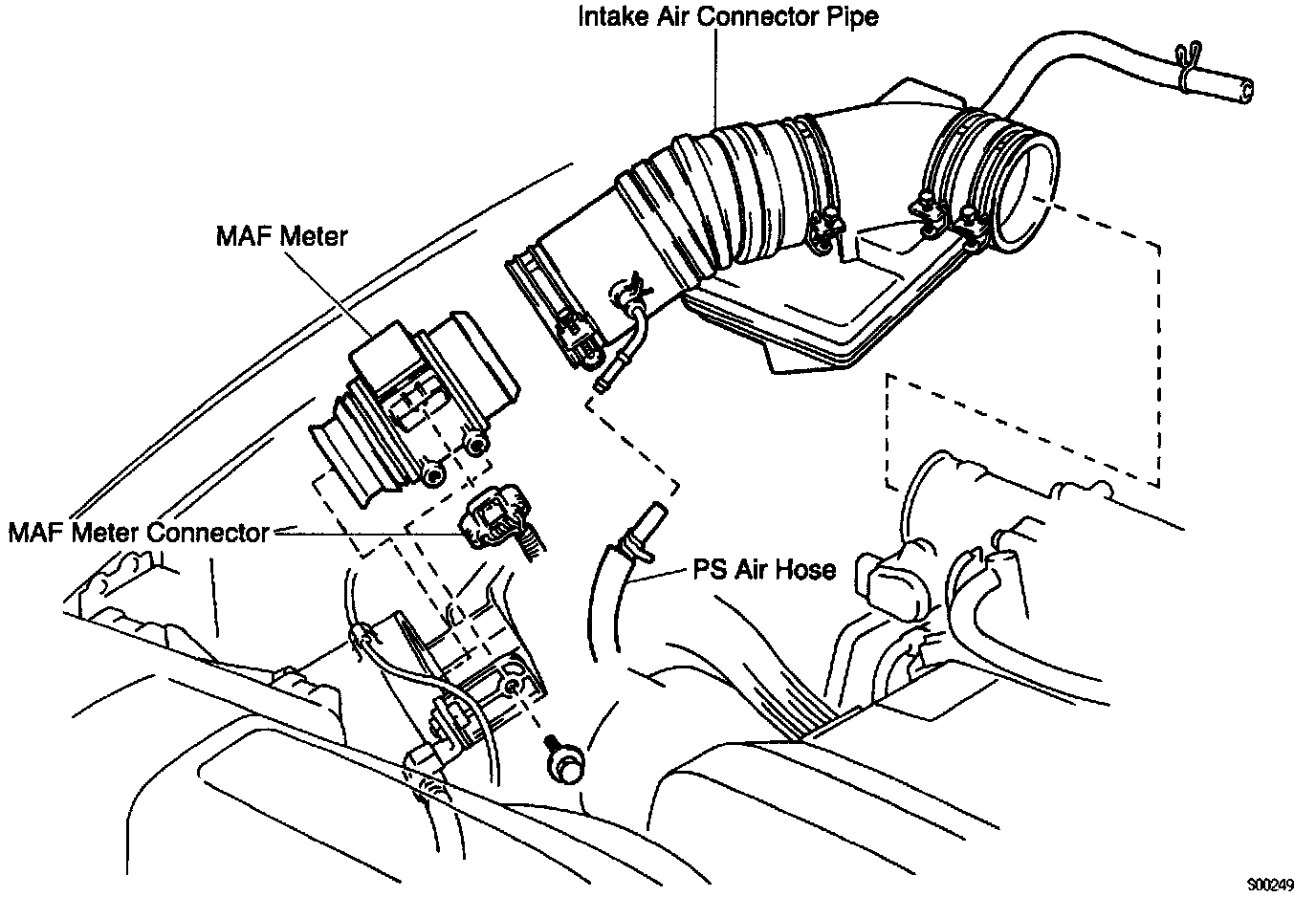

1. REMOVE INTAKE AIR CONNECTOR PIPE

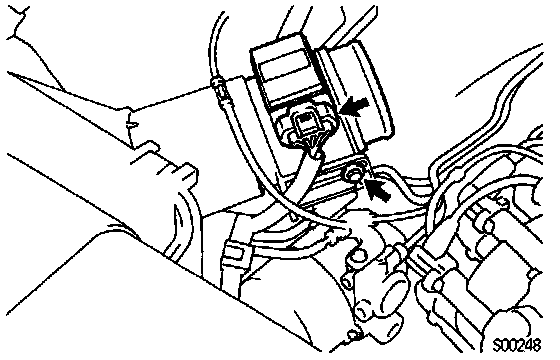

2. REMOVE MAF METER
- Disconnect the MAF meter connector.
- Remove the bolt and MAF meter.

INSTALLATION HINT: Installation is in the reverse order of removal.
