Tilt & Telescopic Control Module

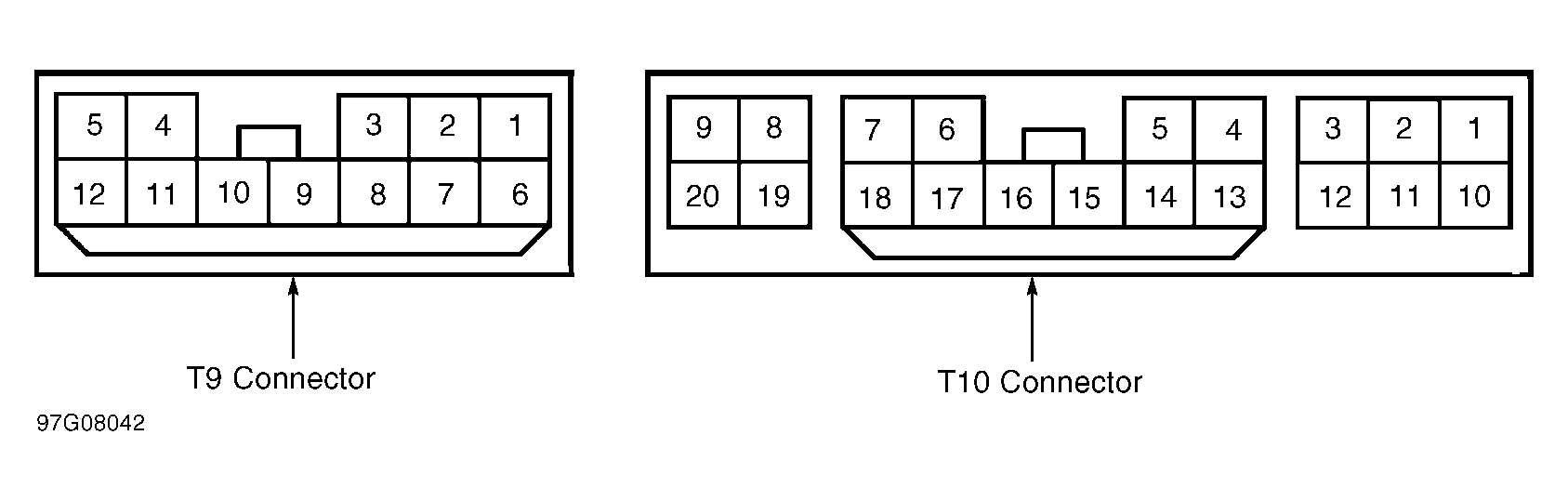

Check tilt and telescopic control module pin voltages. See TILT & TELESCOPIC CONTROL MODULE PIN VOLTAGE  table. See Figure. If any voltage is not as specified, check appropriate circuit test.

TILT & TELESCOPIC CONTROL MODULE PIN VOLTAGE (T9 CONNECTOR)

Terminal No. - Wire Color (1) Conditions Voltage
1 - Brown At All Times Less Than 1
2 - Green/Black Telescopic Motor (Retracting) (2) 10-14
2 - Green/Black Motor Idle Less Than 1
3 - Green/White Tilt Motor (Down) (2) 10-14
3 - Green/White Motor Idle Less Than 1
4 - White At All Times 10-14
5 - Red/Black Ignition Moved From Off To On 10-14
5 - Red/Black Switch Idle Less Than 1
6 - Red/Yellow Moving Telescope Switch (2)(3) 10-14
6 - Red/Yellow Switch Idle Less Than 1
7 - White/Black At All Times Less Than 1
8-9 Not Used "
10 - Green/Red Tilt Motor (Up) (2) 10-14
10 - Green/Red Motor Idle Less Than 1
11 - Green Telescopic Motor (Extending) (2) 10-14
11 - Green Motor Idle Less Than 1
12 Not Used "
(1) Measure between specified terminal and ground unless otherwise noted. See Figure.
(2) With key unlock warning switch on.
(3) With ignition on.
TILT & TELESCOPIC CONTROL MODULE PIN VOLTAGE (T10 CONNECTOR)

Terminal No. - Wire Color (1) Conditions Voltage
1-4 Not Used "
5 - Pink At All Times Less Than 1
6 (4) - White Column Telescope Fully Retracted (2) 0-2
6 (4) - White Column Telescope Fully Extended 3 5-5 5
7 (4) - White/Red Column Tilt Up Fully (2) 0-2
7 (4) - White/Red Column Tilt Down Fully 3 5-5 5
8 - Black/Red Ignition On 10-14
Ignition Off Less Than 1
9-10 Not Used "
11 - Red Key In Ignition Switch Less Than 1
11 - Red Key Not In Ignition Switch 10-14
12-16 Not Used "
17 (4) - White/Blue Switch Request (Telescope Extend) (2)(3) 2.40
17 (4) - White/Blue Switch Request (Tilt Up) (2)(3) 1.50
17 (4) - White/Blue Switch Request (Telescope Retract) (2)(3) .90
17 (4) - White/Blue Switch Request (Tilt Down) (2)(3) .35
17 (4) - White/Blue Switch Request (Idle) (2)(3) 0
18 (4) - Red/White (2)(3) 4-6
18 (4) - Red/White Key Unlock Warning Switch Off Less Than 1
19 - Green/Yellow Trans In "P" Position (3) 10-14
19 - Green/Yellow (3) Less Than 1
20 - Blue/Yellow At All Times 10-14
(1) Measure between specified terminal and ground unless otherwise noted. See Figure.
(2) With key unlock warning switch on.
(3) With ignition on.
(4) Measure between specified terminal and connector T10, terminal No. 5.
