Electrical Component Locator: Miscellaneous

MISCELLANEOUS

Component Component Location

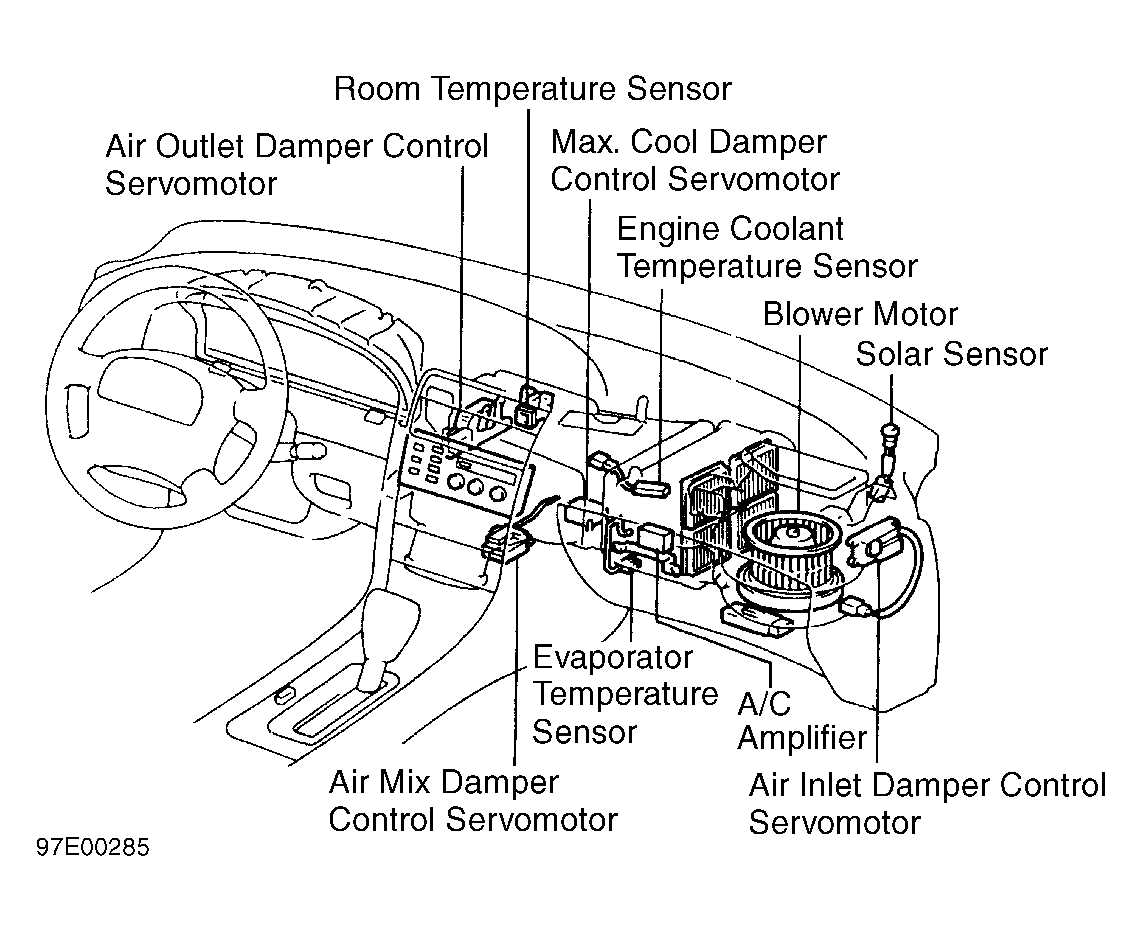

A/C Amplifier Behind right side of dash, on evaporator case. See Figure.

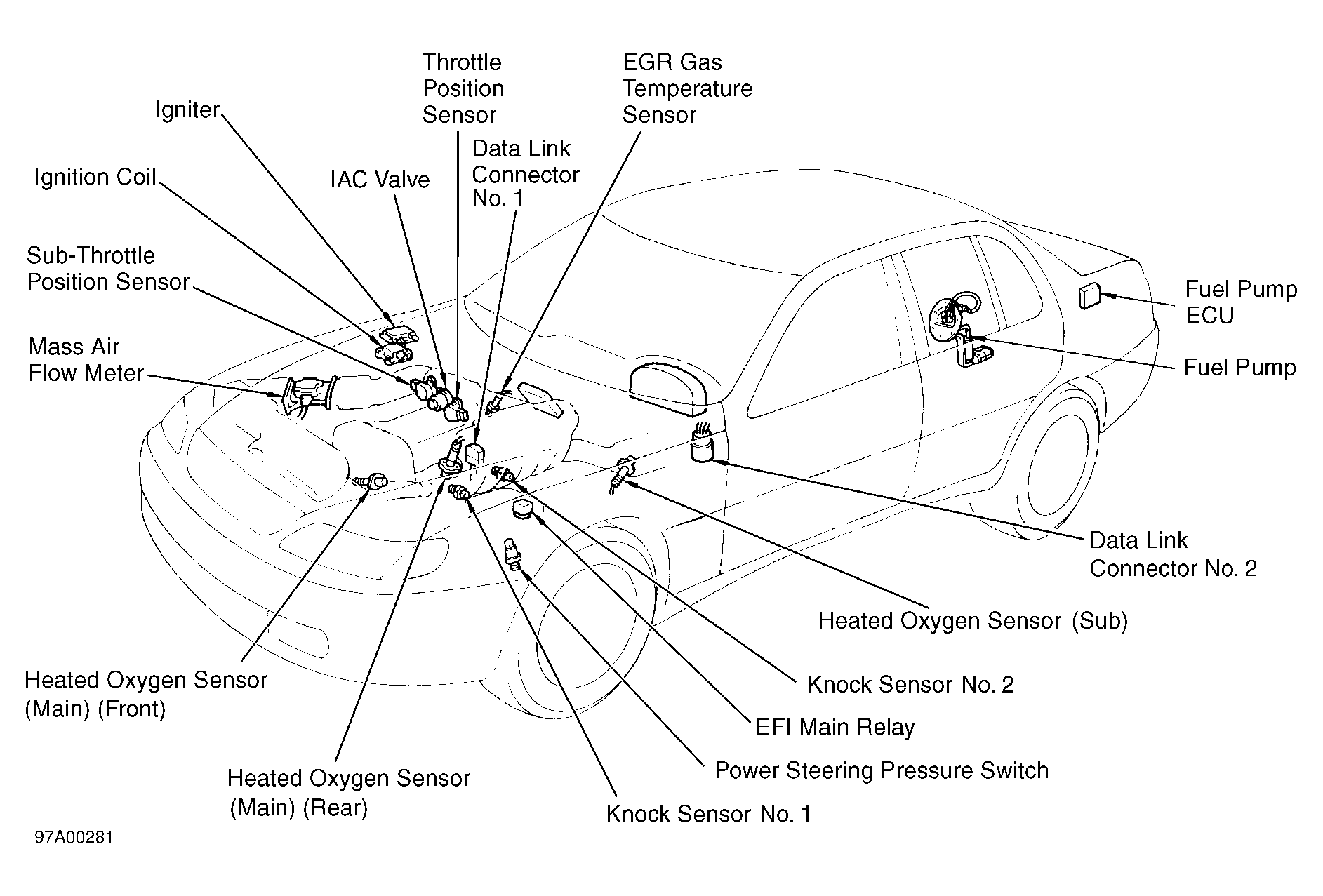

Data Link Connector (DLC) No. 1 On bracket, on top front of engine. See Figure.
Data Link Connector (DLC) No. 2 Under left side of dash. See Figure.
Data Link Connector (DLC) No. 3 Under left side of dash, near DLC No. 2.
Igniter In right side of engine compartment. See Figure.
Ignition Coil In right side of engine compartment. See Figure.
