Keyless Entry Module: Testing and Inspection

WIRELESS DOOR LOCK CONTROL ECU INSPECTION








INSPECT ECU CIRCUIT

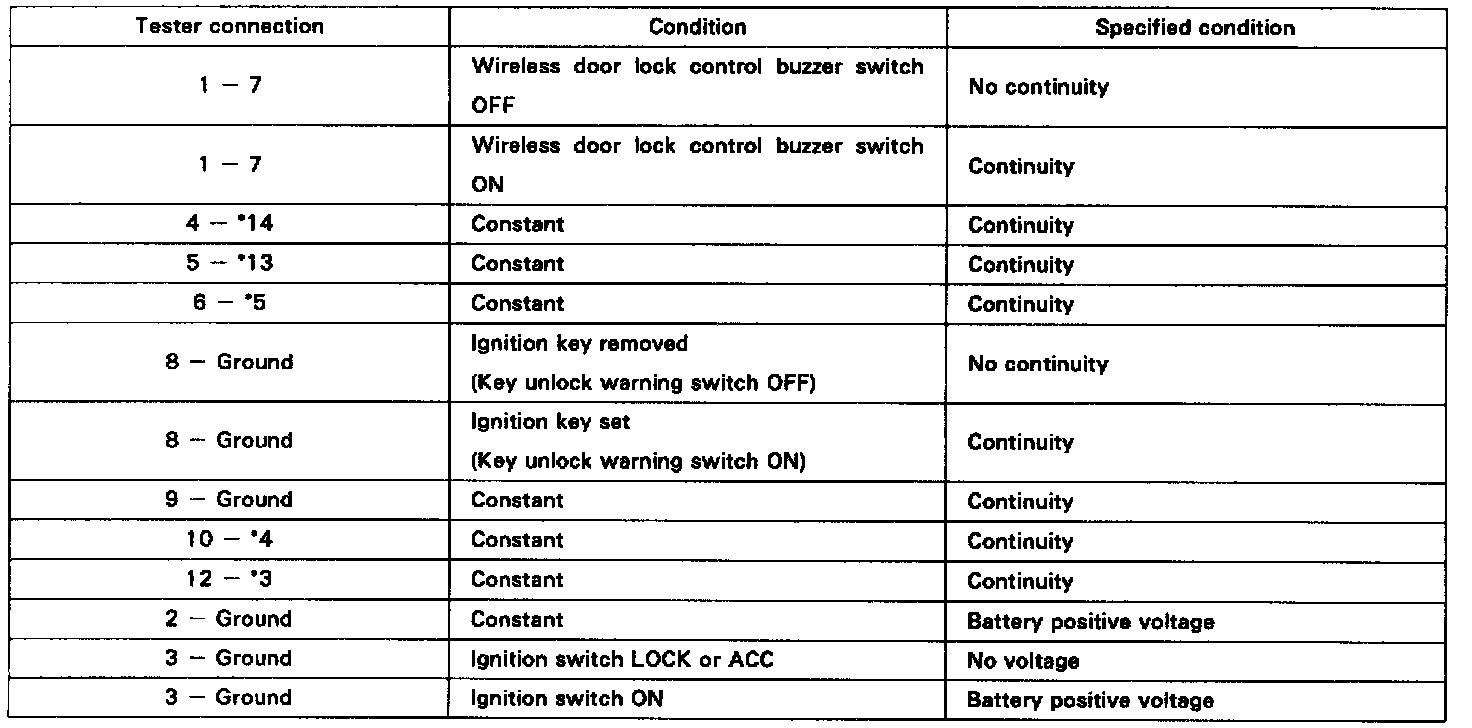

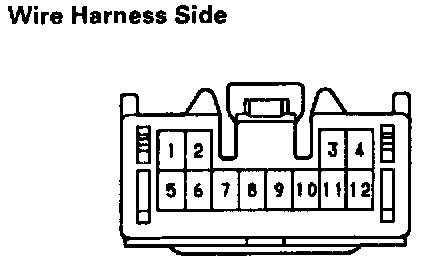

Disconnect the connector from the ECU and inspect the connector on the wire harness side, as shown. S: 22 Pin connector of body ECU
If the circuit is not as specified. inspect the circuits connected to other parts.
