Central Control Module

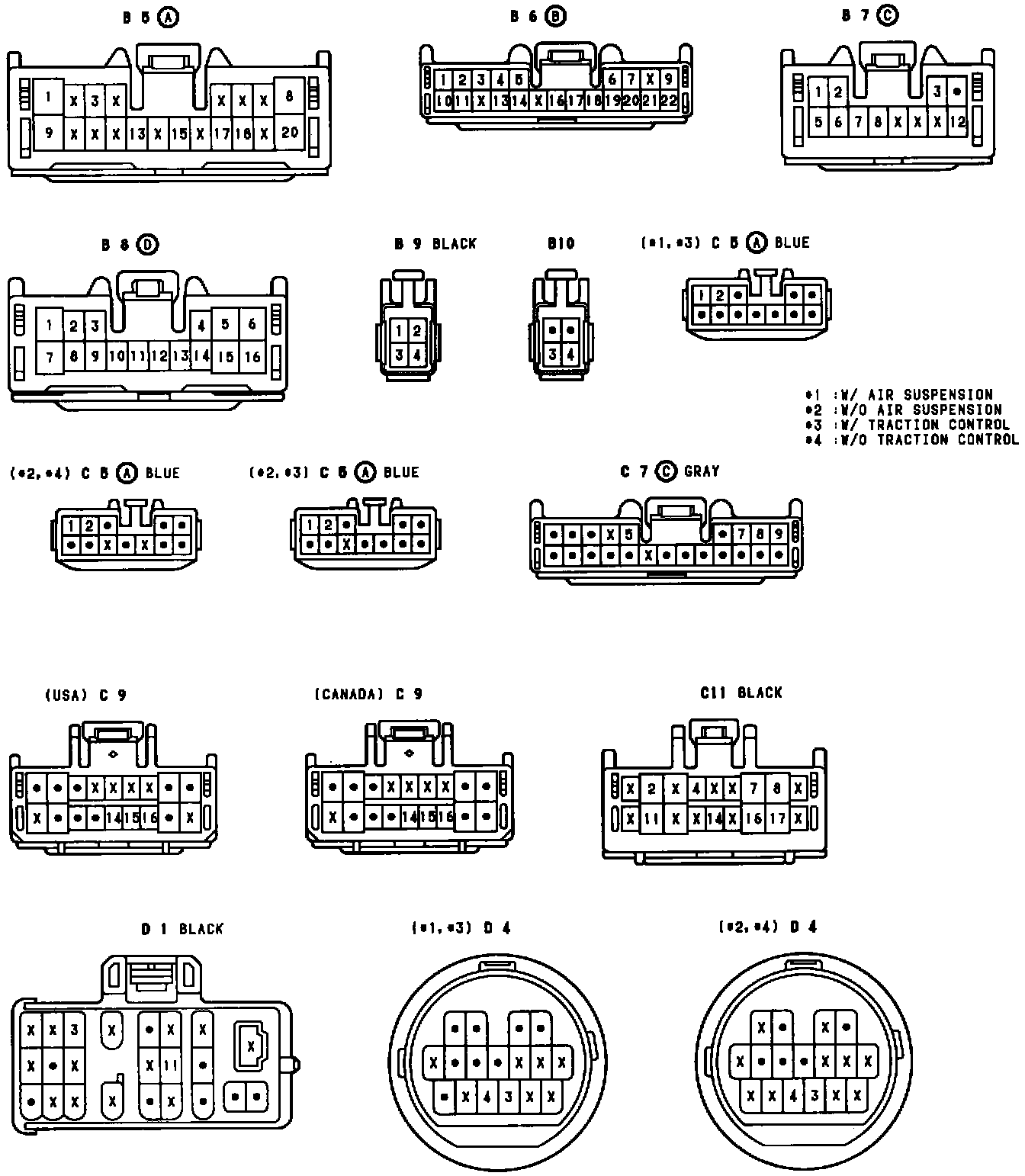

Multiplex (MPX) Communication System-Connectors:

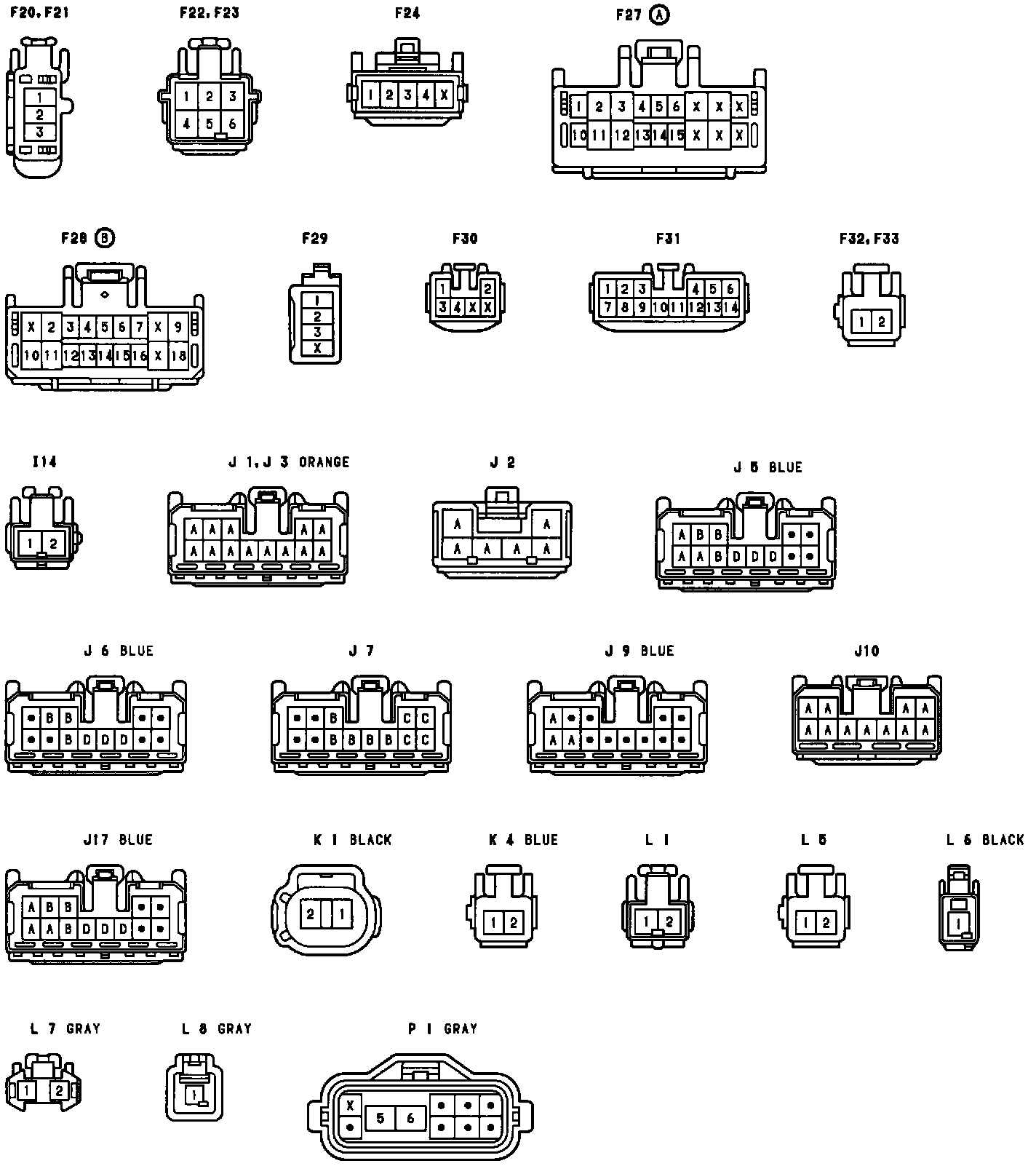

Multiplex (MPX) Communication System-Connectors:

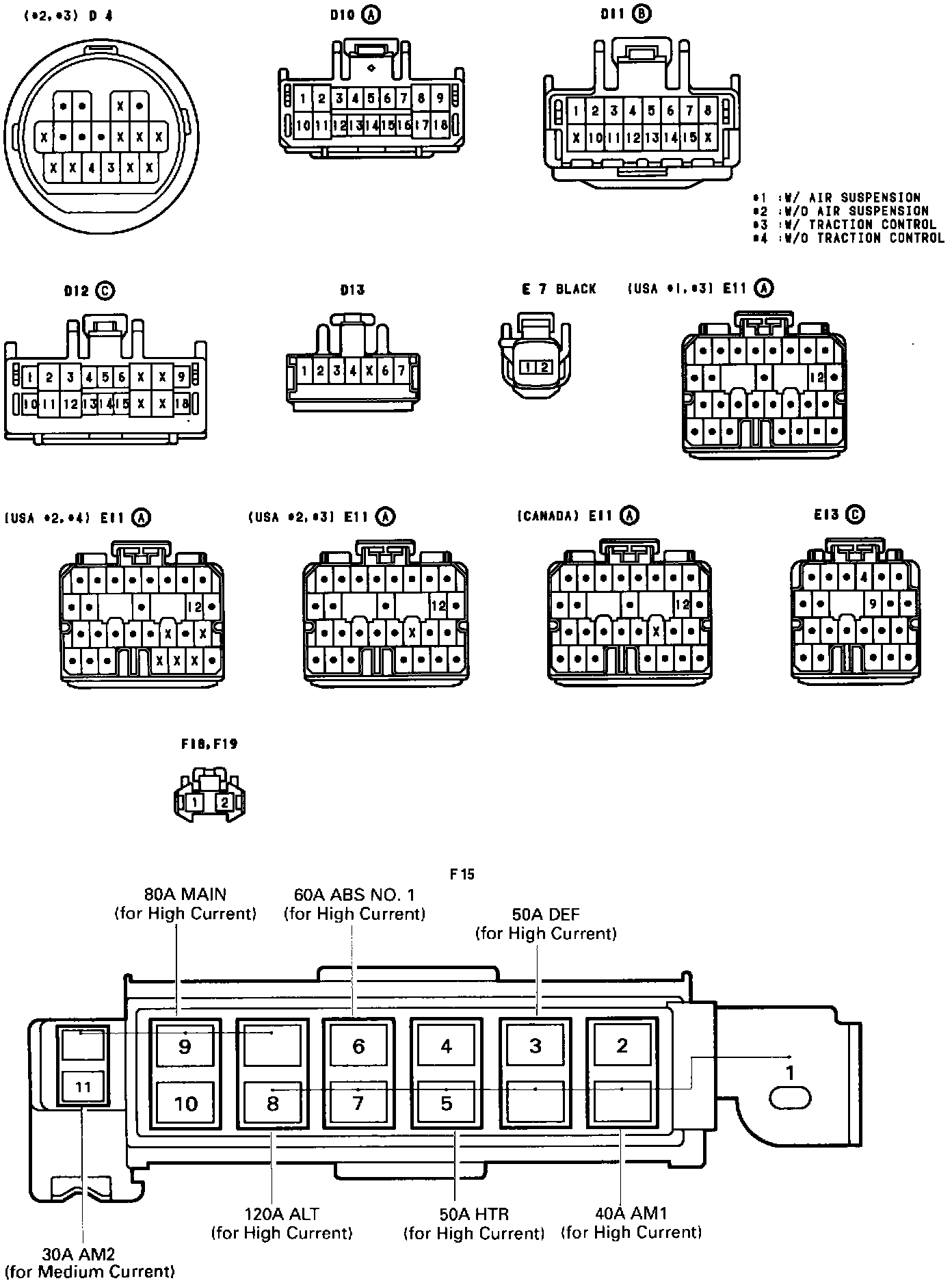

Multiplex (MPX) Communication System-Connectors:

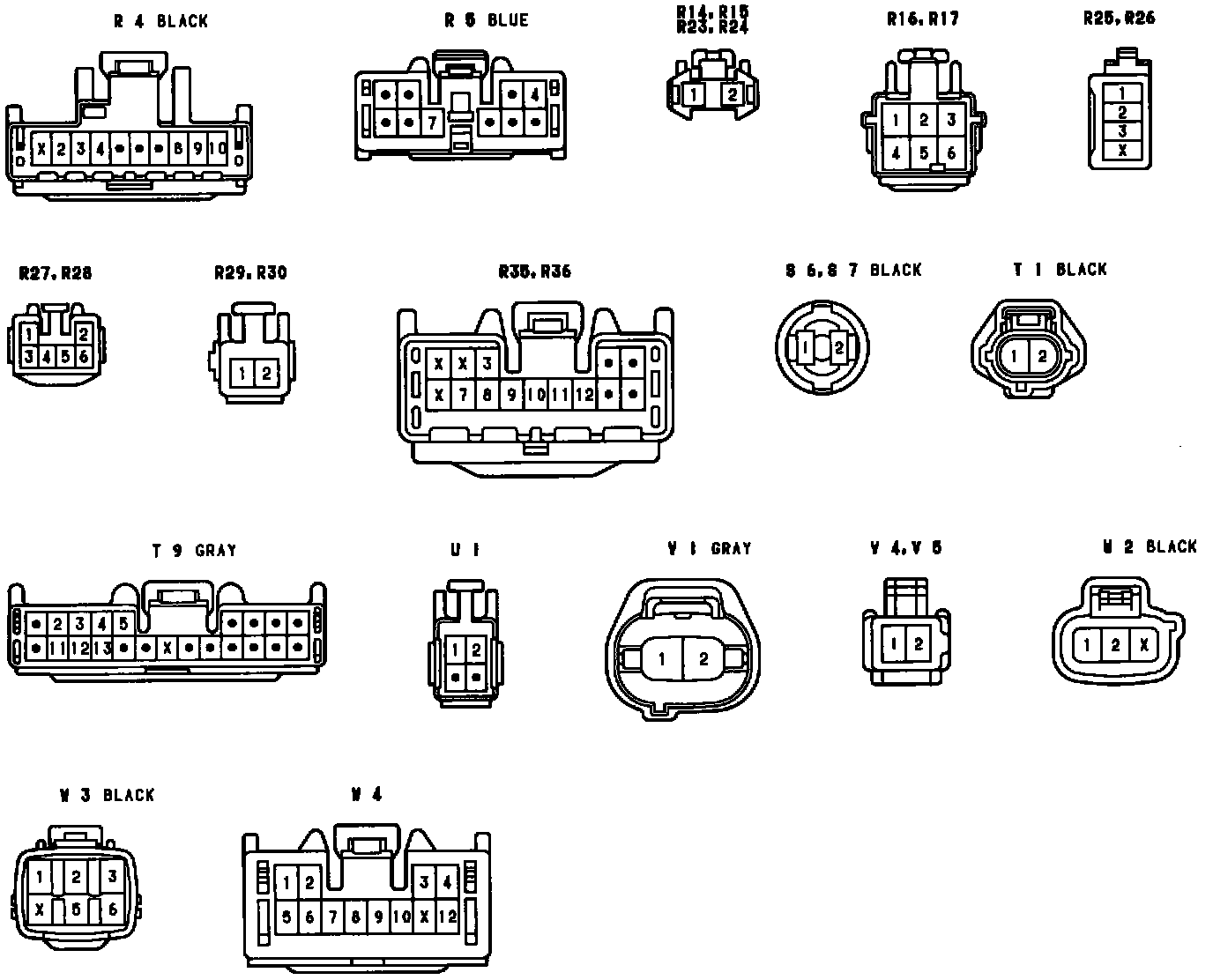

Multiplex (MPX) Communication System-Connectors:
