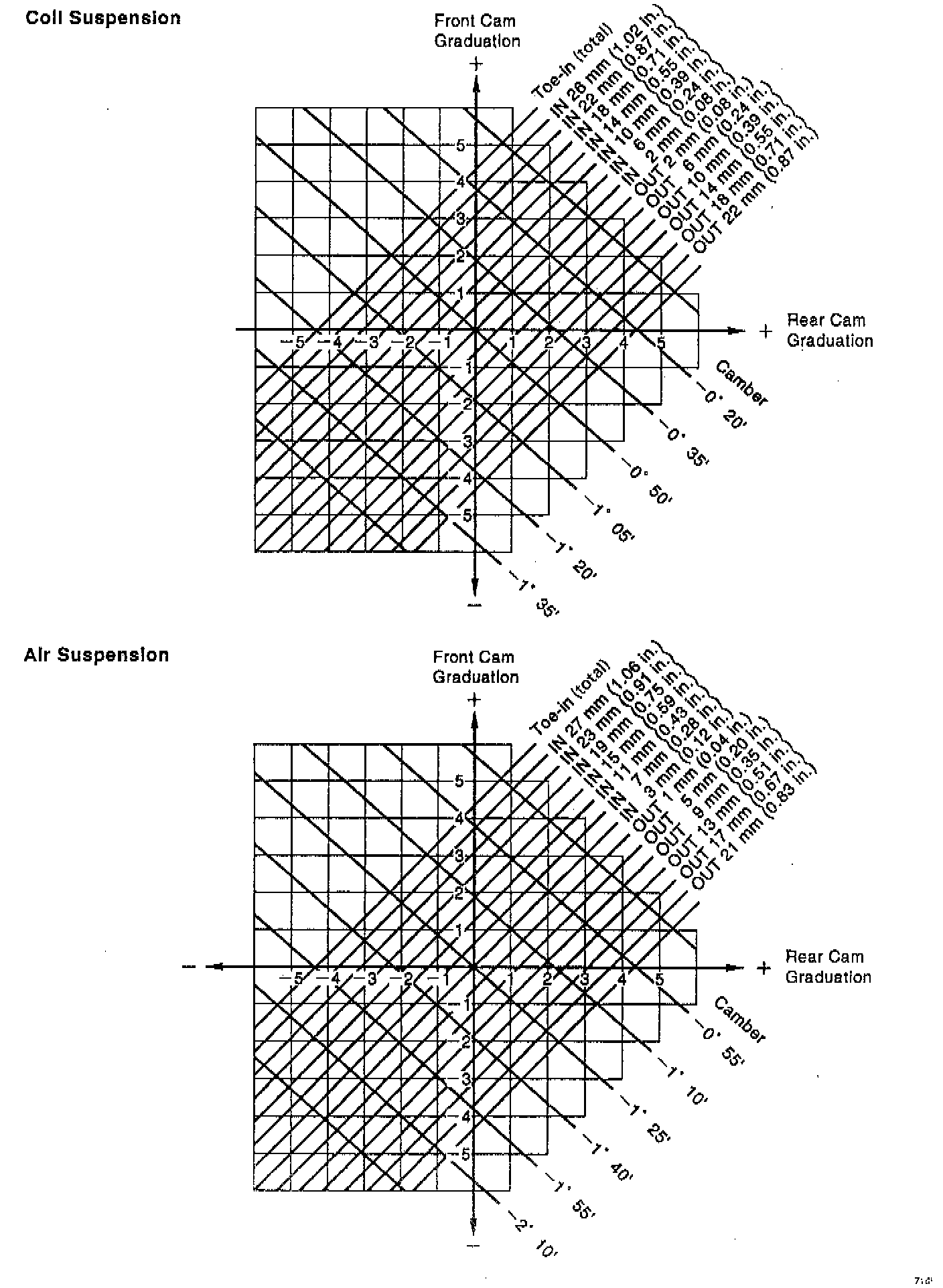

Adjustment Chart

1. Mark on the graph the measurements taken from the vehicle.

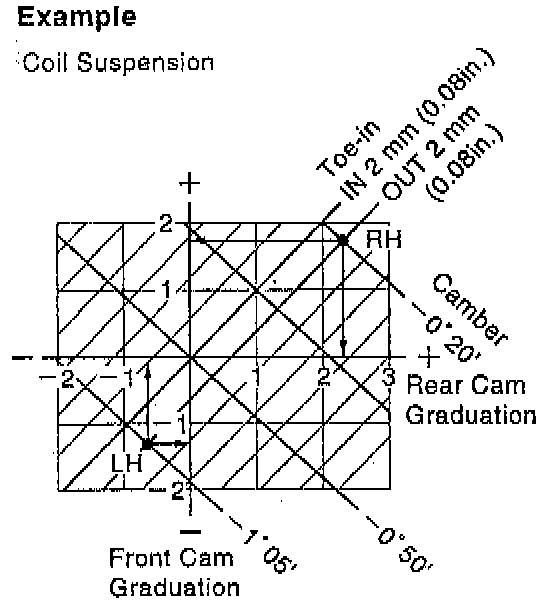

Example (Coil suspension):
Camber (LH) -1°05' (-1.08°)
Camber (RH) -0°20' (-0.33°)
Toe-in (total) (out) 2 mm (0.08 inch)

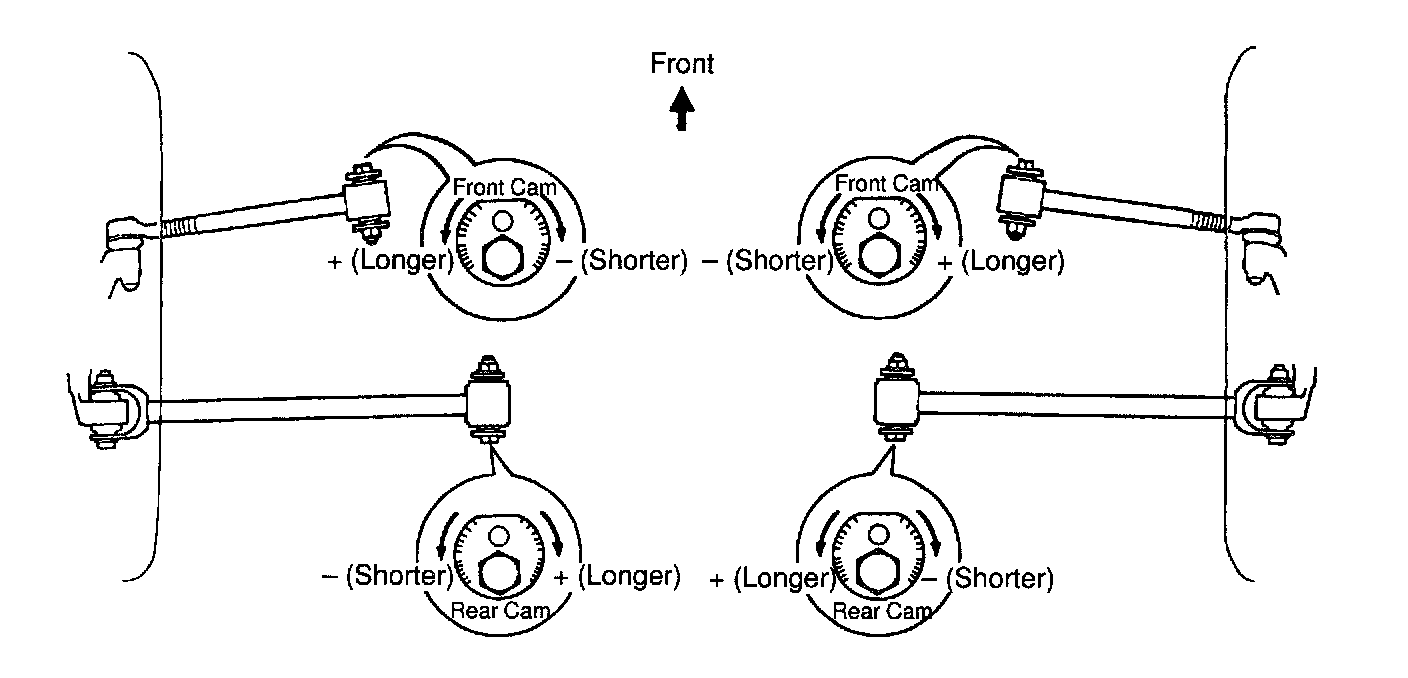

2. As shown the illustration, from the graph the amounts by which the front and/or rear cam are to be adjusted. Amount to turn adjusting cam (by graduation):
LH Front cam - (Shorter) 1.2
LH Rear cam - (Shorter) 0.7
RH Front cam + (Longer) 1.8
RH Rear cam+ (Longer) 2.3
