Main Throttle Position Sensor

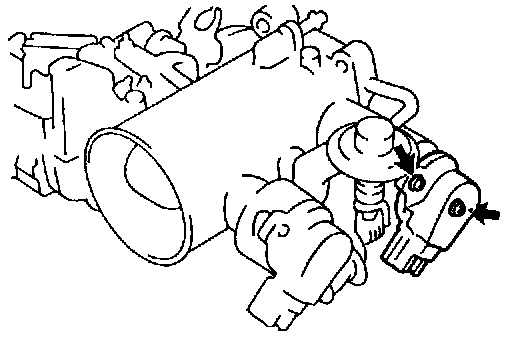

(a) Loosen the 2 set screws of the sensor.

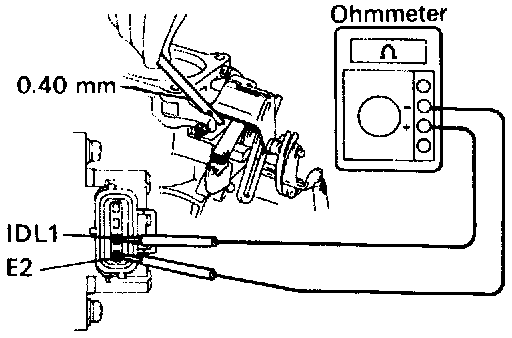

(b) Insert a 0.40 mm (0.016 in.) feeler gauge between the throttle stop screw and stop lever.
(c) Connect the tester probe of an ohmmeter to terminals IDL1 and E2 of the sensor.

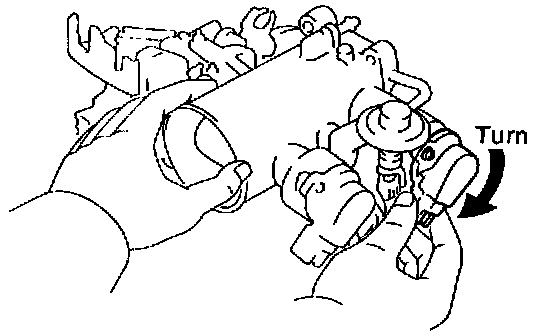

(d) Gradually turn the sensor clockwise until the ohmmeter deflects and secure it with the 2 set screws.

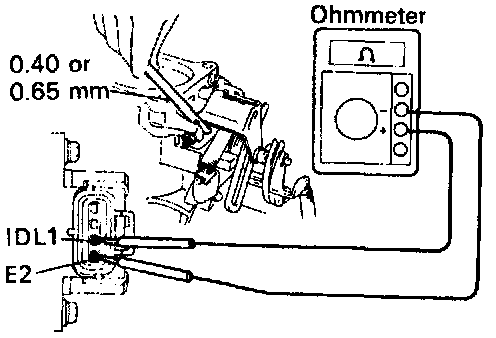

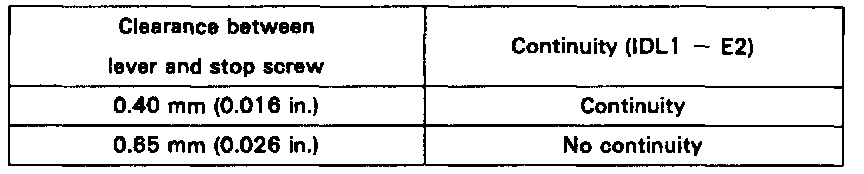

(e) Recheck the continuity between terminals IDL1 and E2.
