Sub Throttle Position Sensor

Adjust sub-throttle position sensor.

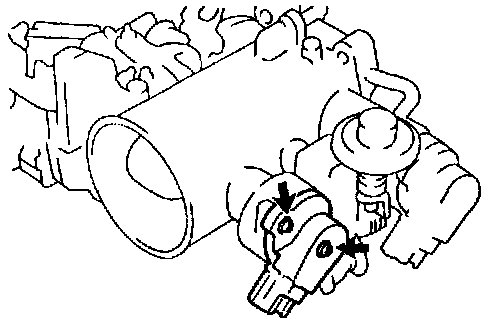

(a) Loosen the 2 set screws of the sensor.

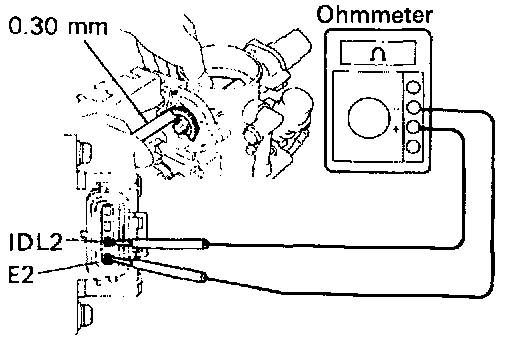

(b) Insert a 0.30 mm (0.012 in.) feeler gauge between the throttle stop screw and throttle valve gear.

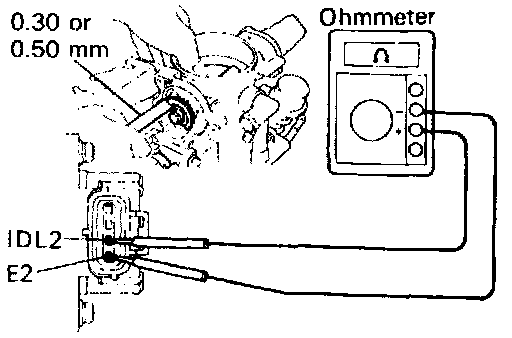

(c) Connect the tester probe of an ohmmeter to terminals IDL2 and E2 of the sensor.

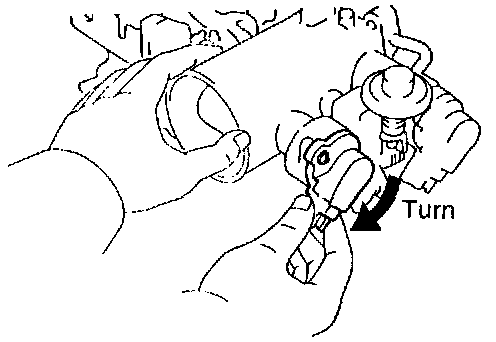

(d) Gradually turn the sensor clockwise until the ohm meter deflects and secure it with the 2 set screws.

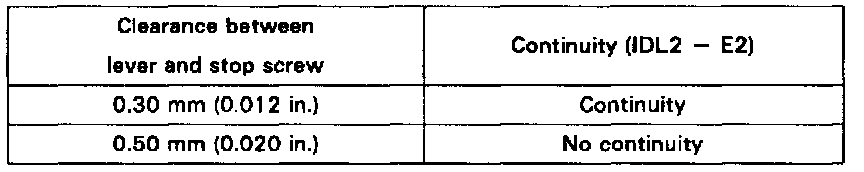

(e) Recheck the continuity between terminals IDL2 and E2.
