Vehicle Speed Sensor: Service and Repair

REPLACEMENT
1. Disconnect vehicle speed sensor connector.

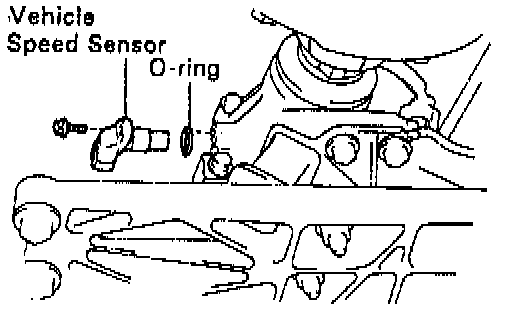

2. Remove vehicle speed sensor, as follows:





a. Remove the bolt and vehicle speed sensor.
b. Remove the O-ring from it.
3. Install vehicle speed sensor, as follows:
a. Coat a new O-ring with Automatic Transmission fluid (ATF) and install it to the speed sensor.
b. Install the speed sensor and torque the bolt.
Torque: 5.4 Nm (48 inch lbs.).
4. Connect vehicle speed sensor connector.
