ABS W/ Traction Control (TRAC)

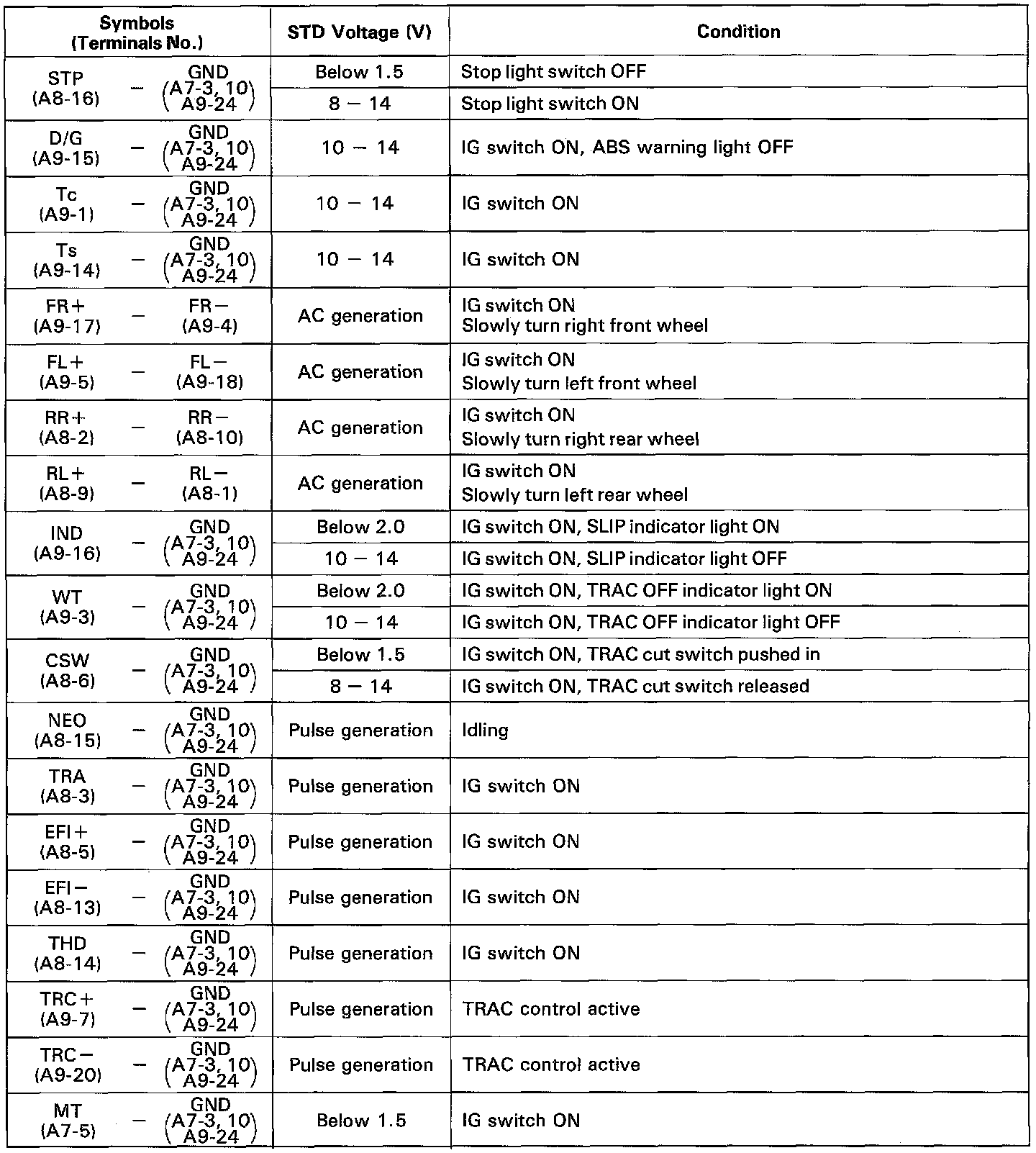

Anti-Lock Brake System (ABS) W/ TRAC, Standard Values Of ECU Terminals Part 1 Of 2:



Anti-Lock Brake System (ABS) W/out TRAC, Standard Values Of ECU Terminals Part 2 Of 2:
