Antilock Brake (ABS) System

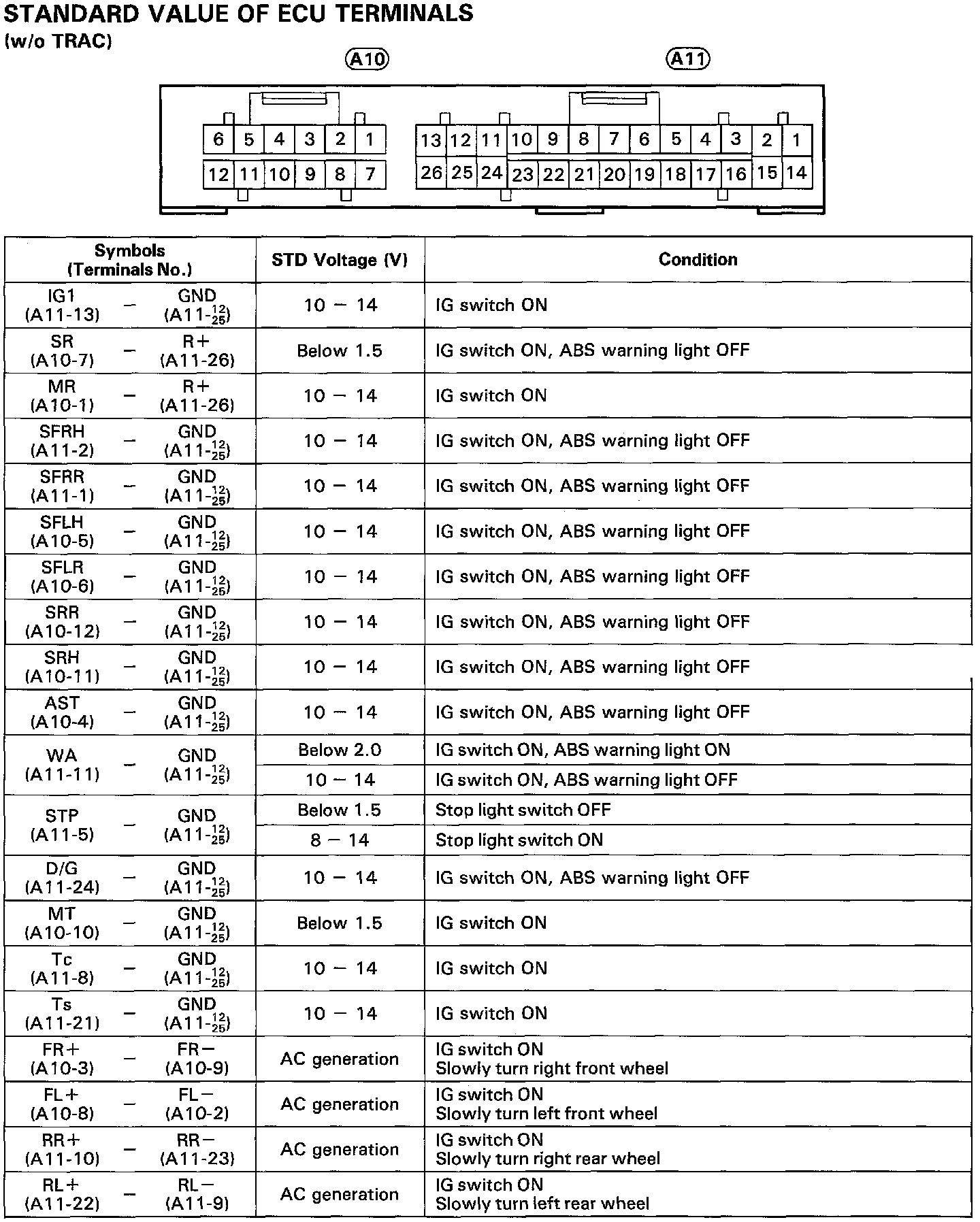

Anti-Lock Brake System (ABS) W/out TRAC, Standard Values Of ECU Terminals:
