Shift Interlock Control Module: Testing and Inspection

Inspect shift lock control Electronic Control Unit (ECU).

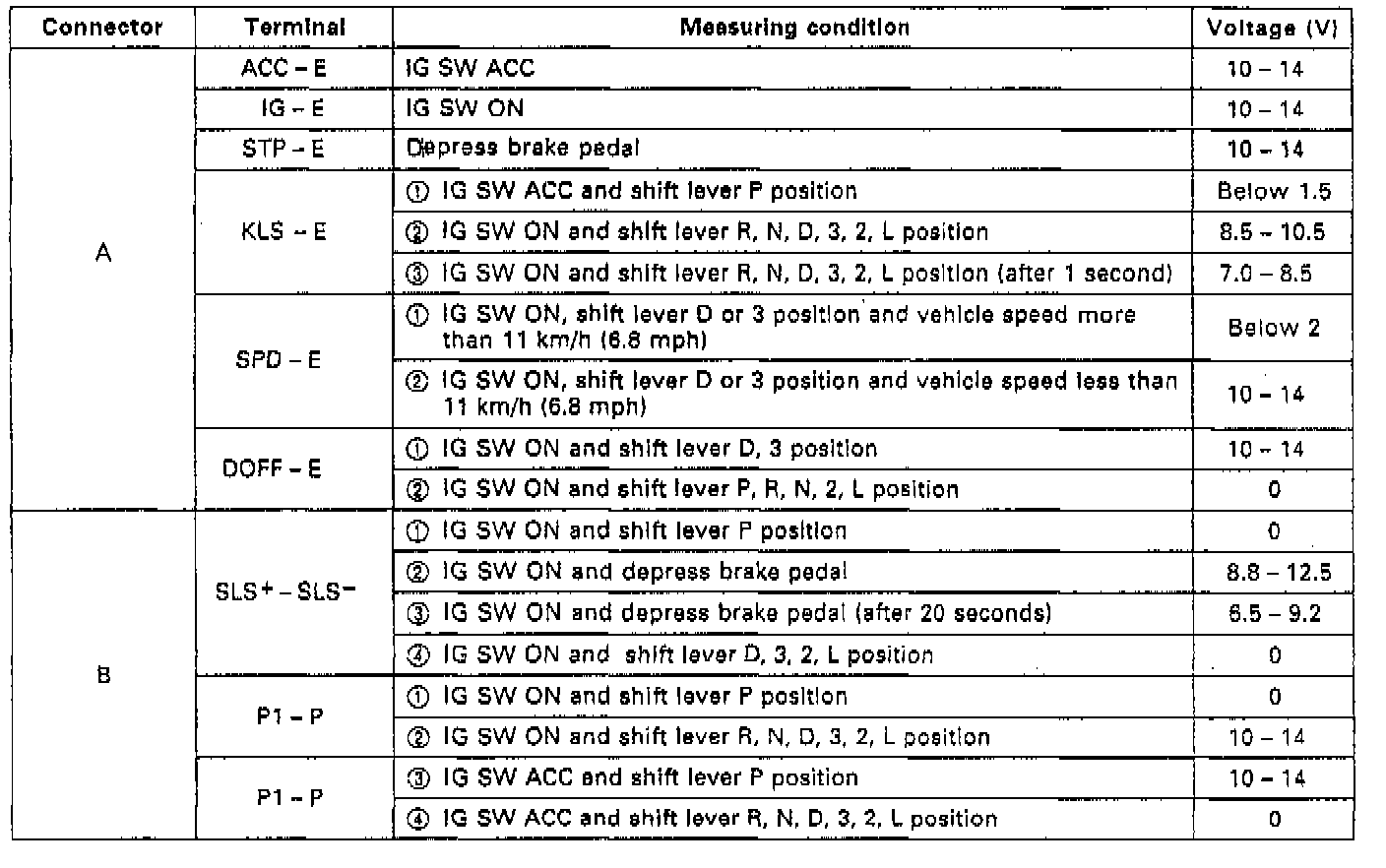

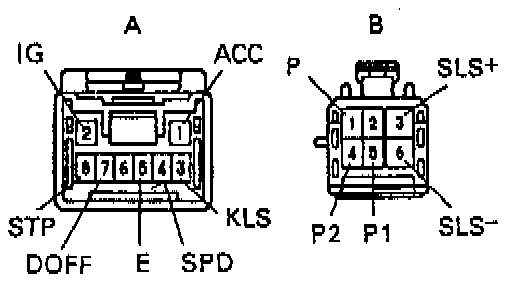

- Using a voltmeter, measure the voltage at each terminal.

NOTE: Do not disconnect the ECU connector.
