Connector Identification

CONNECTOR IDENTIFICATION

Description See Fig.
ABS Motor Relay 6
ABS Solenoid Relay 6
ABS Actuator 7
Electronic Control Unit (1997 Without TRAC) 8
Electronic Control Unit (1997 With TRAC) 9
Electronic Control Unit (1998) 10
Schematic (ABS Motor Relay) 11
Schematic (ABS Solenoid Relay) 12
Wheel Speed Sensors (Front) 13
Wheel Speed Sensors (Rear) 14
Fig 1: Identifying ABS Motor Relay & ABS Solenoid Relay Connector Terminals
G96H19627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

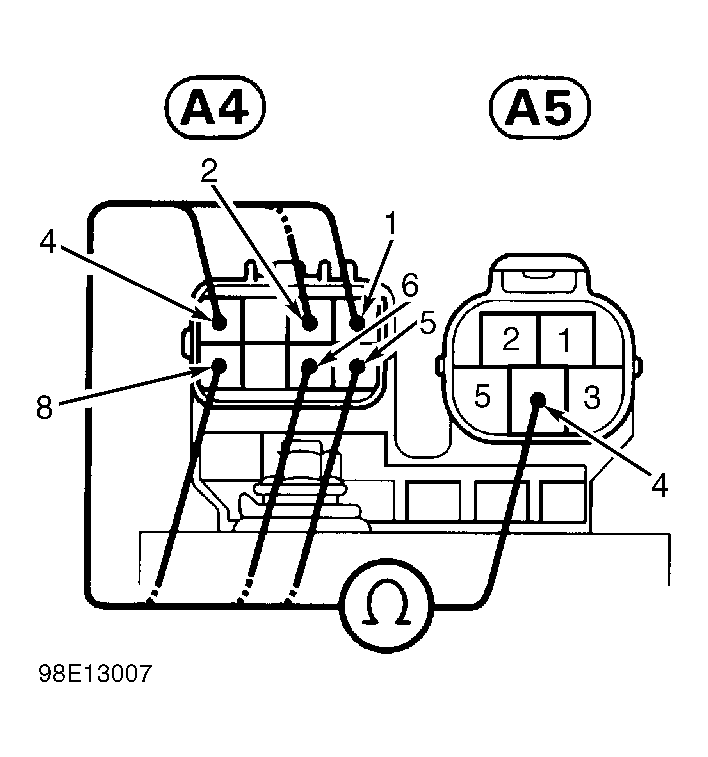

Fig 2: Identifying ABS Actuator Harness Connector Terminals 1997 Without TRAC
G98E13007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

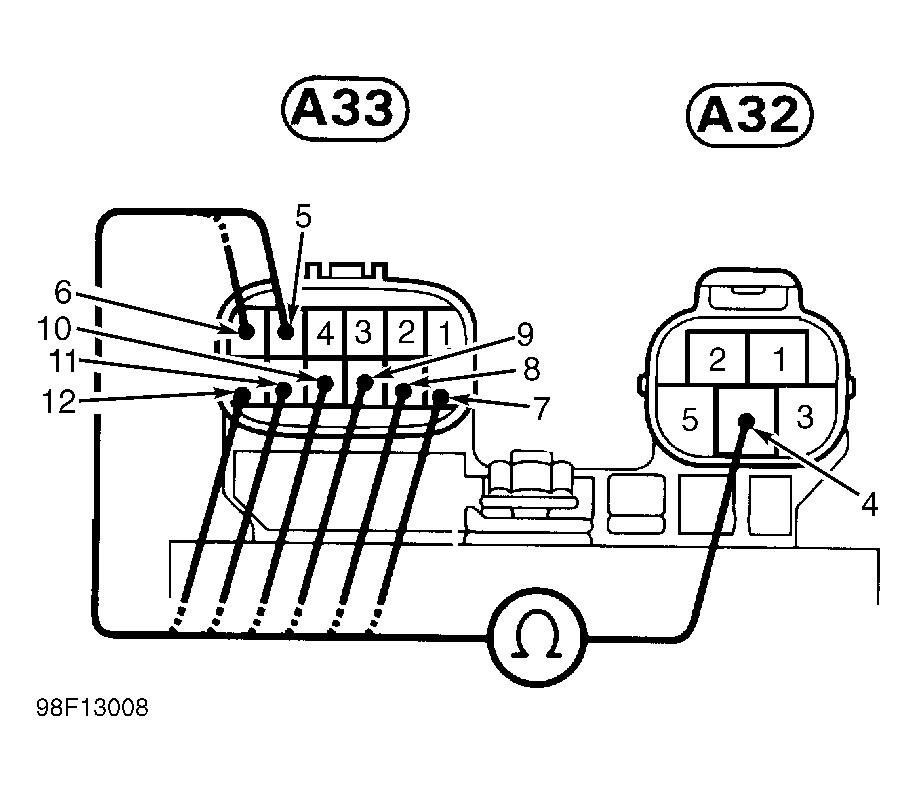

Fig 3: Identifying ABS Actuator Harness Connector Terminals 1997 With TRAC
G98F13008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

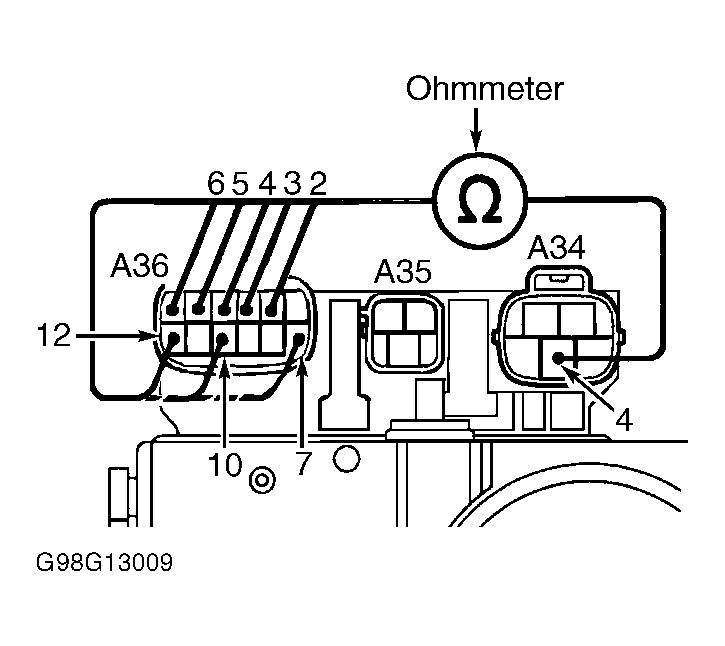

Fig 4: Identifying ABS Actuator Harness Connector Terminals 1998
G98G13009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: For ECU terminal identification on Fig. Fig 5, see ECU TERMINAL IDENTIFICATION (1997 NON-TRAC)  table.
Fig 5: Identifying Electronic Control Unit Terminals (1997 Without TRAC)
G96C19622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU TERMINAL IDENTIFICATION (1997 NON-TRAC)

Terminal No. (1) Description
Connector A10
1 FR+
2 Not Used
3 FL+
4 R-
5 SR
6 SFL
7 FR-
8 AST
9 MTT
10 FL-
11 MR
12 SRR
Connector A11
1 SFR
2 GND
3 RL-
4 Not Used
5 Not Used
6 Ts
7 STP
8 Not Used
9 Not Used
10 WA
11 IG
12 Not Used
13 GND
14 RL+
15 Not Used
16 PKB
17 Tc
18 Not Used
19 RR+
20 RR-
21 D/G
22 BATT
(1) For view of terminals, see Fig 5.
NOTE: For ECU terminal identification on Fig. Fig 6, see ECU TERMINAL IDENTIFICATION (1997 TRAC)  table.
Fig 6: Identifying Electronic Control Unit Terminals (1997 With TRAC)
G96J19629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU TERMINAL IDENTIFICATION (1997 TRAC)

Terminal No. (1) Description
Connector A7
1 SFR
2 SMC
3 R-
4 AST
5 MR
6 Not Used
7 SRL
8 SRC
9 Not Used
10 MT
11 SR
12 TMR
Connector A8
1 RL-
2 RR+
3 Not Used
4 Not Used
5 THD
6 TRC+
7 TRA
8 EFI+
9 RL+
10 RR-
11 NEO
12 Not Used
13 Not Used
14 TRC-
15 CSW
16 EFI-
Connector A9
1 Ts
2 GND
3 IND
4 FR-
5 FL+
6 Not Used
7 Not Used
8 Tc
9 LBL
10 STP
11 BATT
12 GND
13 SFL
14 MTT
15 WT
16 Not Used
17 FR+
18 FL-
19 Not Used
20 Not Used
21 D/G
22 WA
23 PKB
24 IG
25 GND
26 SRR
(1) For view of terminals, see Fig 6.
NOTE: For ECU terminal identification on Fig. Fig 7, see ECU TERMINAL IDENTIFICATION (1998)  table.

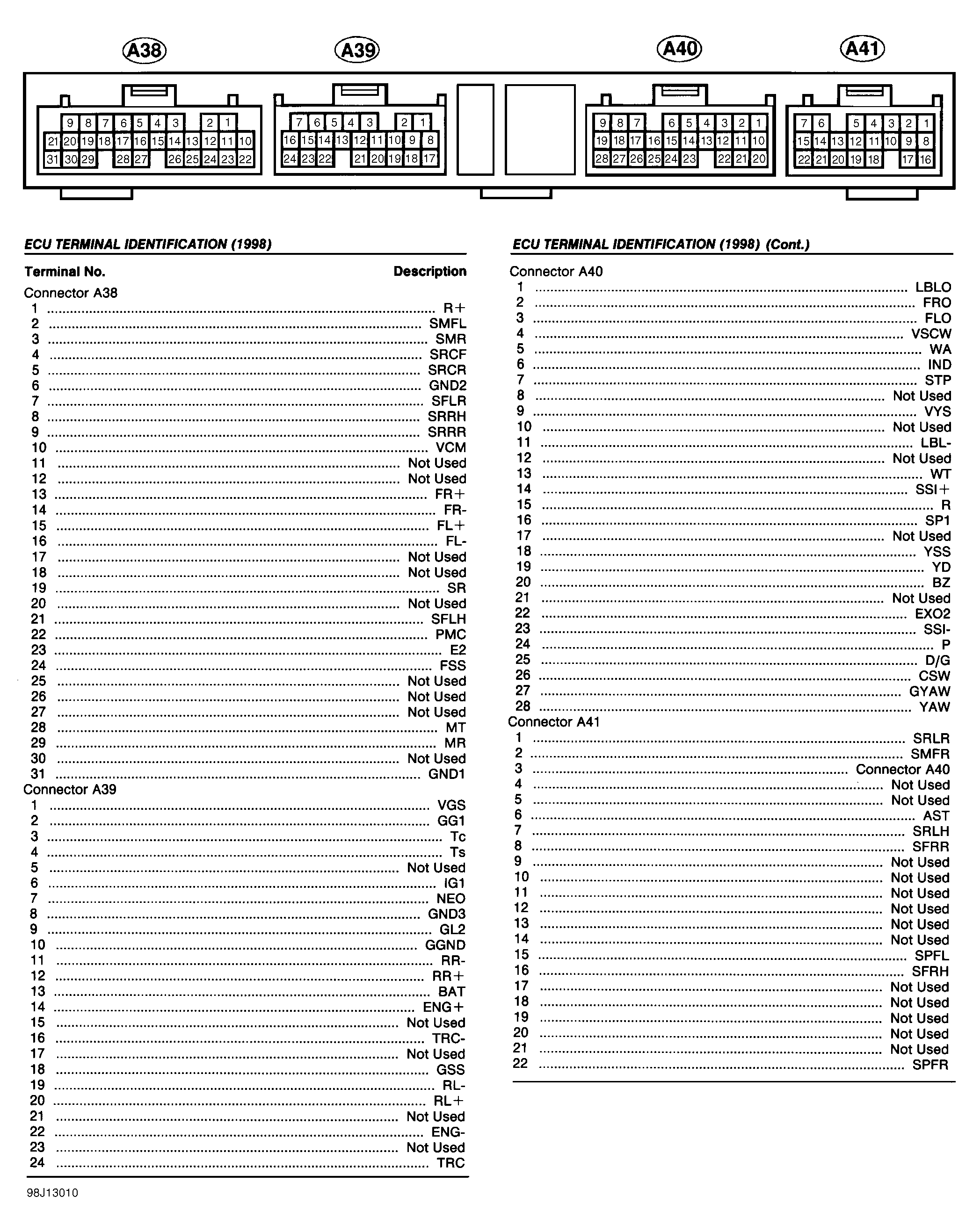

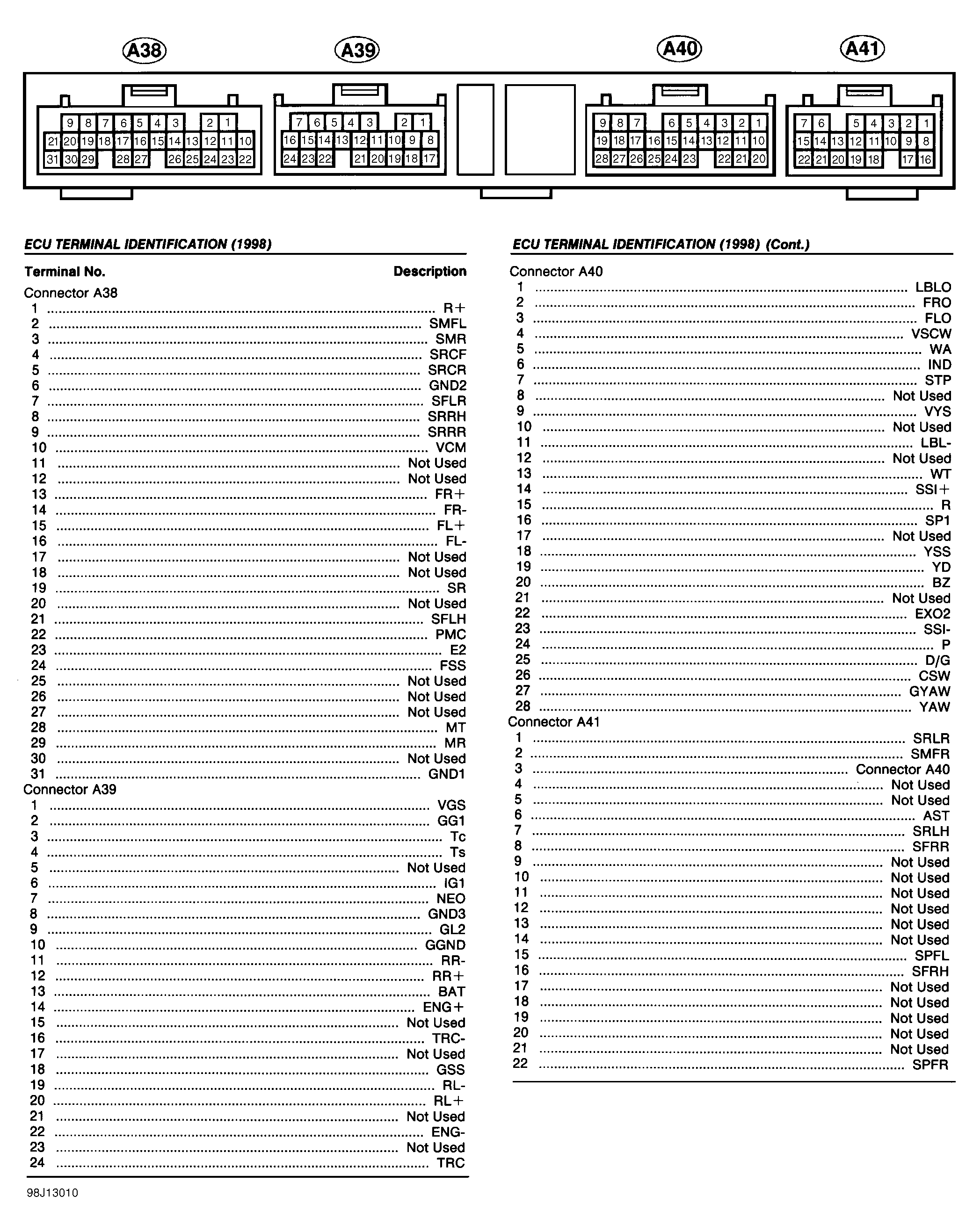

Fig 7: Identifying Electronic Control Unit Terminals (1998)
G98J13010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECU TERMINAL IDENTIFICATION (1998)

Terminal No. (1) Description
Connector A38
1 R+
2 SMFL
3 SMR
4 SRCF
5 SRCR
6 GND2
7 SFLR
8 SRRH
9 SRRR
10 VCM
11 Not Used
12 Not Used
13 FR+
14 FR-
15 FL+
16 FL-
17 Not Used
18 Not Used
19 SR
20 Not Used
21 SFLH
22 PMC
23 E2
24 FSS
25 Not Used
26 Not Used
27 Not Used
28 MT
29 MR
30 Not Used
31 GND1
Connector A39
1 VGS
2 GG1
3 Tc
4 Ts
5 Not Used
6 IG1
7 NEO
8 GND3
9 GL2
10 GGND
11 RR-
12 RR+
13 BAT
14 ENG+
15 Not Used
16 TRC-
17 Not Used
18 GSS
19 RL-
20 RL+
21 Not Used
22 ENG-
23 Not Used
24 TRC
Connector A40
1 LBLO
2 FRO
3 FLO
4 VSCW
5 WA
6 IND
7 STP
8 Not Used
9 VYS
10 Not Used
11 LBL-
12 Not Used
13 WT
14 SSI+
15 R
16 SP1
17 Not Used
18 YSS
19 YD
20 BZ
21 Not Used
22 EXO2
23 SSI-
24 P
25 D/G
26 CSW
27 GYAW
28 YAW
Connector A41
1 SRLR
2 SMFR
3 Connector A40
4 Not Used
5 Not Used
6 AST
7 SRLH
8 SFRR
9 Not Used
10 Not Used
11 Not Used
12 Not Used
13 Not Used
14 Not Used
15 SPFL
16 SFRH
17 Not Used
18 Not Used
19 Not Used
20 Not Used
21 Not Used
22 SPFR
(1) For view of terminals, see Fig 7.
Fig 8: Identifying Schematic (ABS Motor Relay)
G96C19630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 9: Identifying Schematic (ABS Solenoid Relay)
G96D19631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Identifying Wheel Speed Sensors (Front) Harness Connector Terminals
G96E19632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Identifying Wheel Speed Sensors (Rear)
G96F19633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
