With Or Without Memory

  1. Remove tilt and telescopic control module. Remove telescopic position sensor with harness connector still connected. Manually slide telescopic position sensor lever to fully extended position. On vehicles without memory, measure voltage between tilt and telescopic control module connector T9, terminals No. 5 and No. 14. On vehicles with memory, measure voltage between tilt and telescopic control module control module connector T8, terminal No. 2 and connector T9, terminal No. 6. See Figure and Figure .
  2. On all models, manually slide telescopic position sensor lever to fully retracted position. Voltage should decrease as lever is moved from extended position to retracted position. If voltage is 3.5-5.5 volts with lever in fully extended position and operation is as specified, go to TROUBLE SHOOTING  and identify next circuit to be checked. If voltage not is 3.5-5.5 volts with lever in fully extended position or operation is not as specified, go to next step.
  3. Disconnect telescopic position sensor connector. Manually slide telescopic position sensor lever to fully extended position. Measure resistance between telescopic position sensor connector terminals No. 1 and No. 2. See Fig 1. If resistance is 3500-6500 ohms, go to next step. If resistance is not 3500-6500 ohms, replace telescopic position sensor and recheck system.
  4. Manually slide telescopic position sensor lever to fully retracted position. Resistance should increase as lever is moved from fully retracted to fully extended position. Measure resistance between telescopic position sensor connector terminals No. 1 and No. 4. If resistance is 3500-6500 ohms in fully extended position and operation is as specified, go to next step. If resistance is not 3500-6500 ohms in fully extended position or operation is not as specified, replace tilt position sensor and recheck system.
  5. Check and repair wiring harness and connectors between tilt and telescopic control module and telescopic position sensor connector. If wiring harness and connectors are okay, replace tilt and telescopic control module and recheck system.

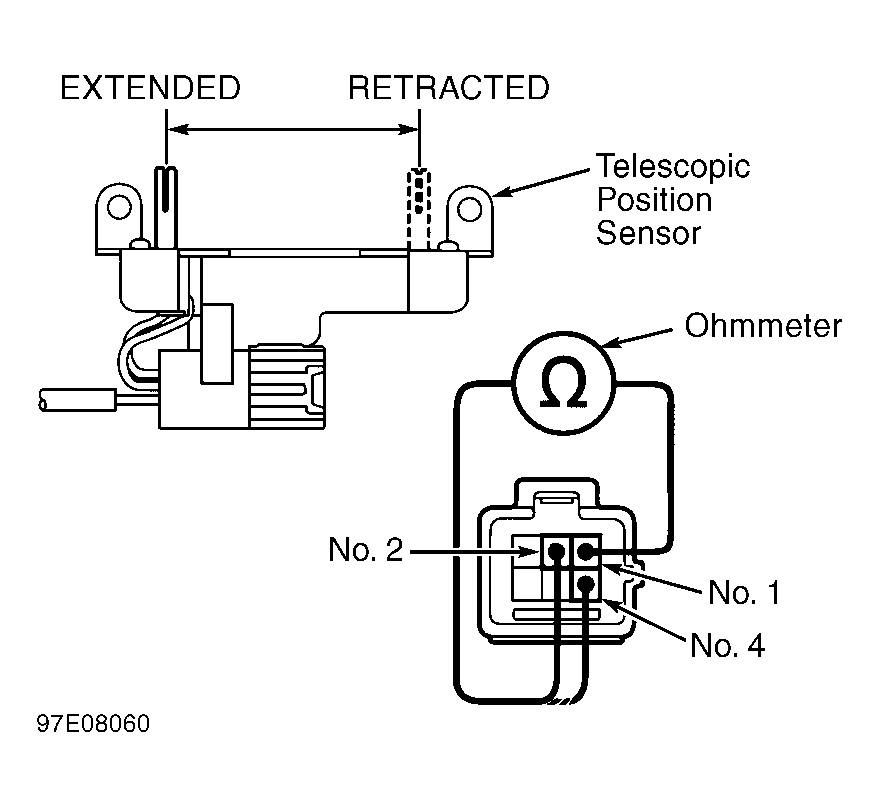

Fig 1: Testing Telescopic Position Sensor
G97E08060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
