Air Conditioning Amplifier

REMOVAL

1. REMOVE GLOVE COMPARTMENT PARTS

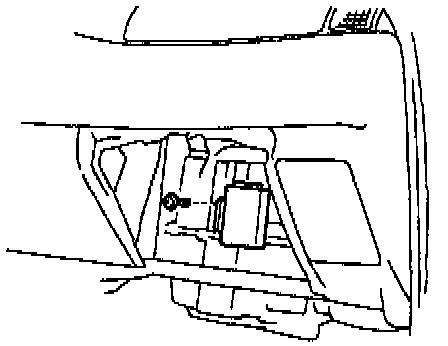

2. REMOVE A/C AMPLIFIER
a. Disconnect the connector from the amplifier.
b. Remove the screw and amplifier.

INSTALLATION
Installation is in the reverse order of removal.
