Servomotor Amplifier

REMOVAL

1. REMOVE INSTRUMENT PANEL SAFETY PAD

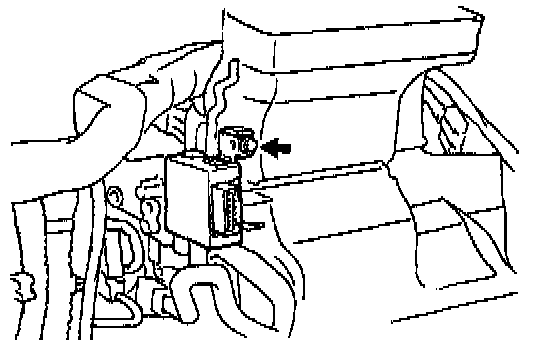

2. REMOVE AMPLIFIER
a. Disconnect the connector.
b. Remove the screw and amplifier.

INSTALLATION
Installation is in the reverse order of removal.
