System Amplifier

REMOVAL

1. REMOVE THESE PARTS:
a. Lower finish panel
b. Lower instrument panel
c. No. 2 heater to register duct

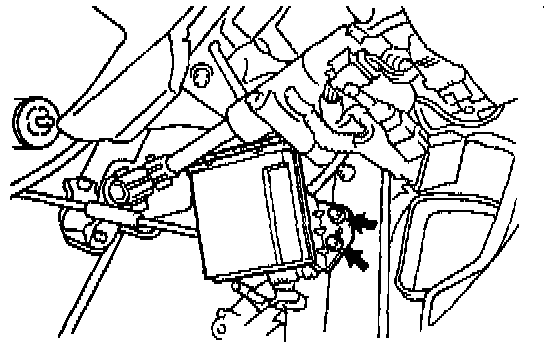

2. REMOVE AMPLIFIER
Remove the 2 bolts and amplifier then disconnect the connectors.

INSTALLATION
Installation is in the reverse order of removal.
