Throttle Position Sensor: Adjustments

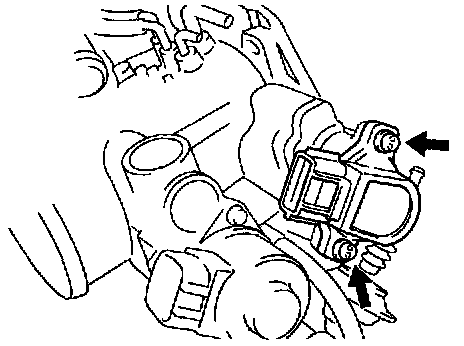

(a) Loosen the 2 set screws of the sensor.

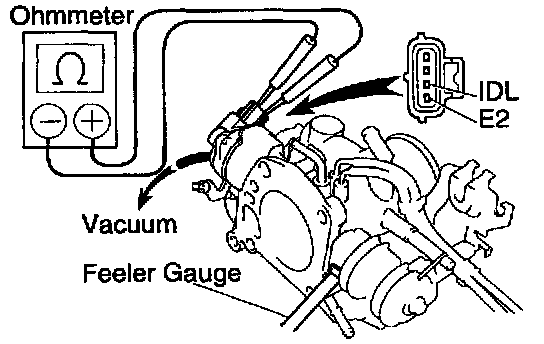

(b) Apply vacuum to the throttle opener
(c) Insert a 0.62 mm (0.024 in.) feeler gauge between the throttle stop screw and stop lever.
(d) Connect the test probe of an ohmmeter to the terminals IDL and E2 of the sensor.
(e) Gradually turn the sensor clockwise until the ohmmeter deflects, and secure it with the 2 set screws.
(f) Recheck the continuity between terminals IDL and E2.
