Throttle Position Sensor: Testing and Inspection

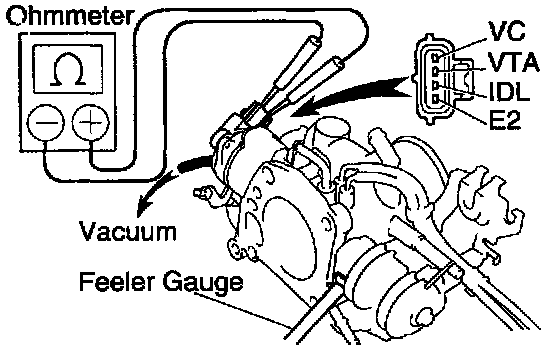

(a) Apply vacuum to the throttle opener.
(b) Insert a 0.50 mm (0.020 in.) or 0.75 mm (0.030 in.) feeler gauge between the throttle stop screw and stop lever.

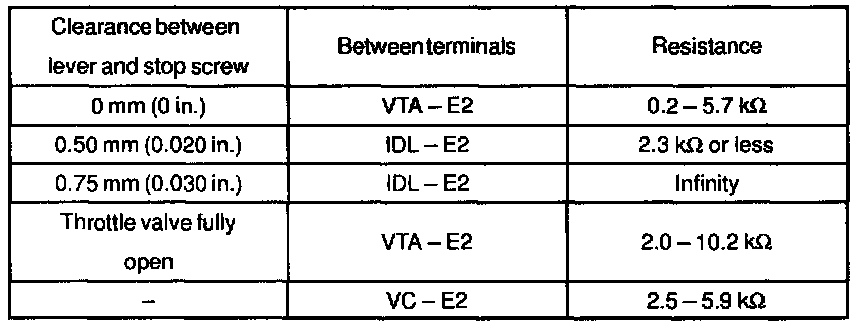

(c) Using an ohmmeter, measure the resistance between each terminal.
