Power Main Relay
- Remove power main relay, located in relay block No. 1 at left side kick panel.

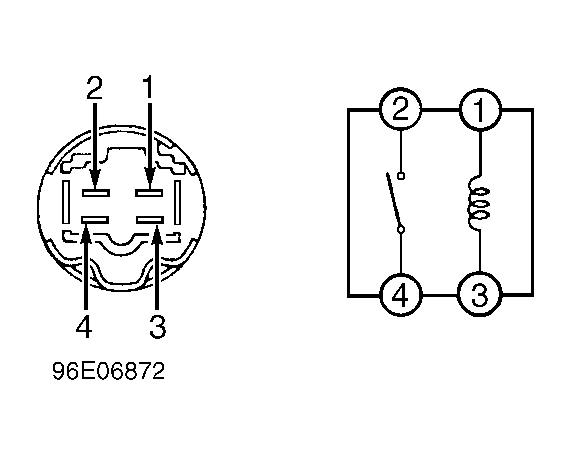

- Using an ohmmeter, check continuity between power main relay terminals No. 1 and 3. Continuity should exist. See Fig 1. Apply battery voltage to terminal No. 1 and ground terminal No. 3. Continuity should exist at terminals No. 2 and 4. If relay does not test as specified, replace power main relay.
